Data Communication Component Views

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

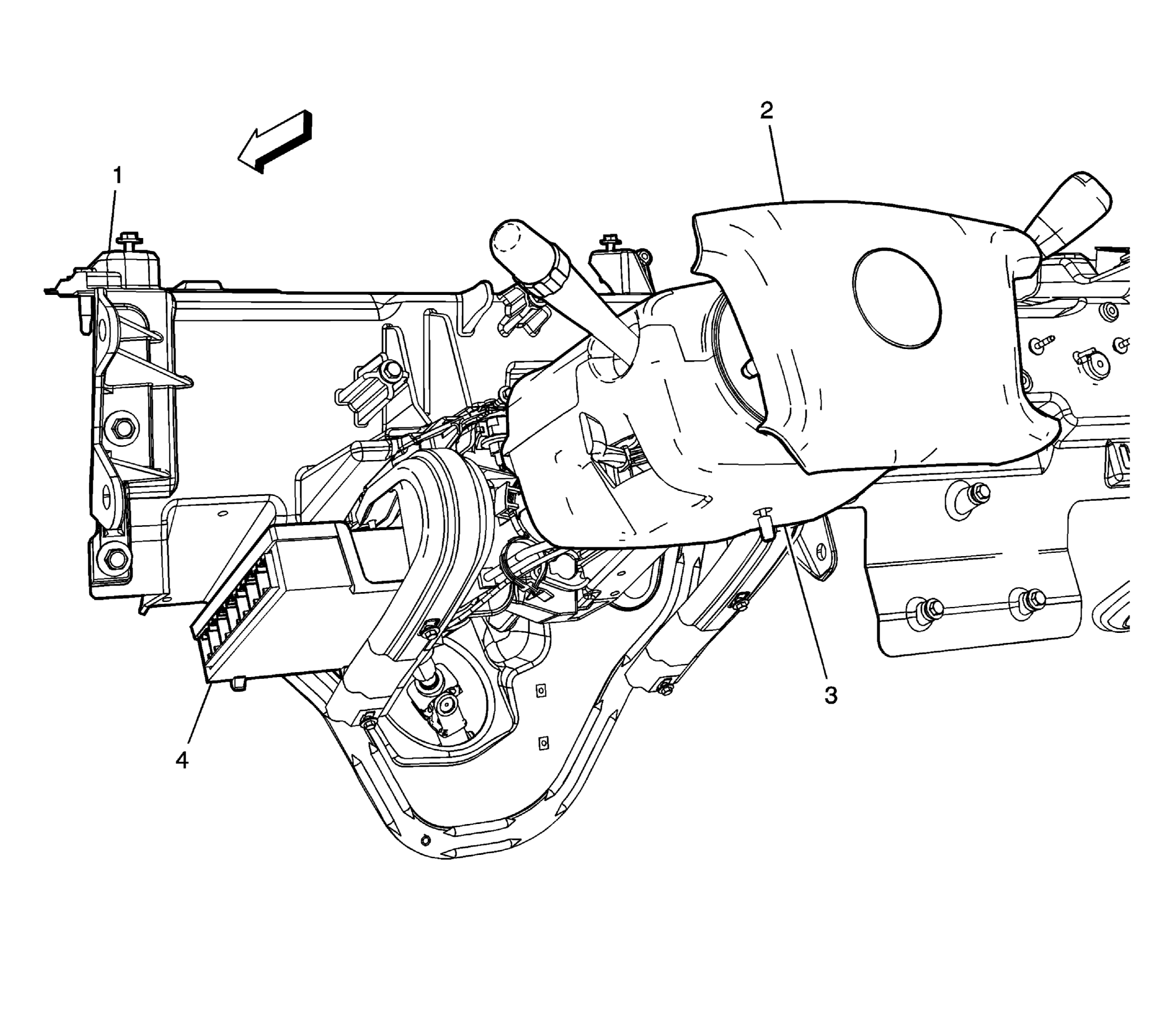

Fig 1: Identifying Steering Column & Supplemtal Inflatable Restraints

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Carrier
2	Inflatable Restraint Steering Wheel Module
3	Steering Column
4	Body Control Module (BCM)

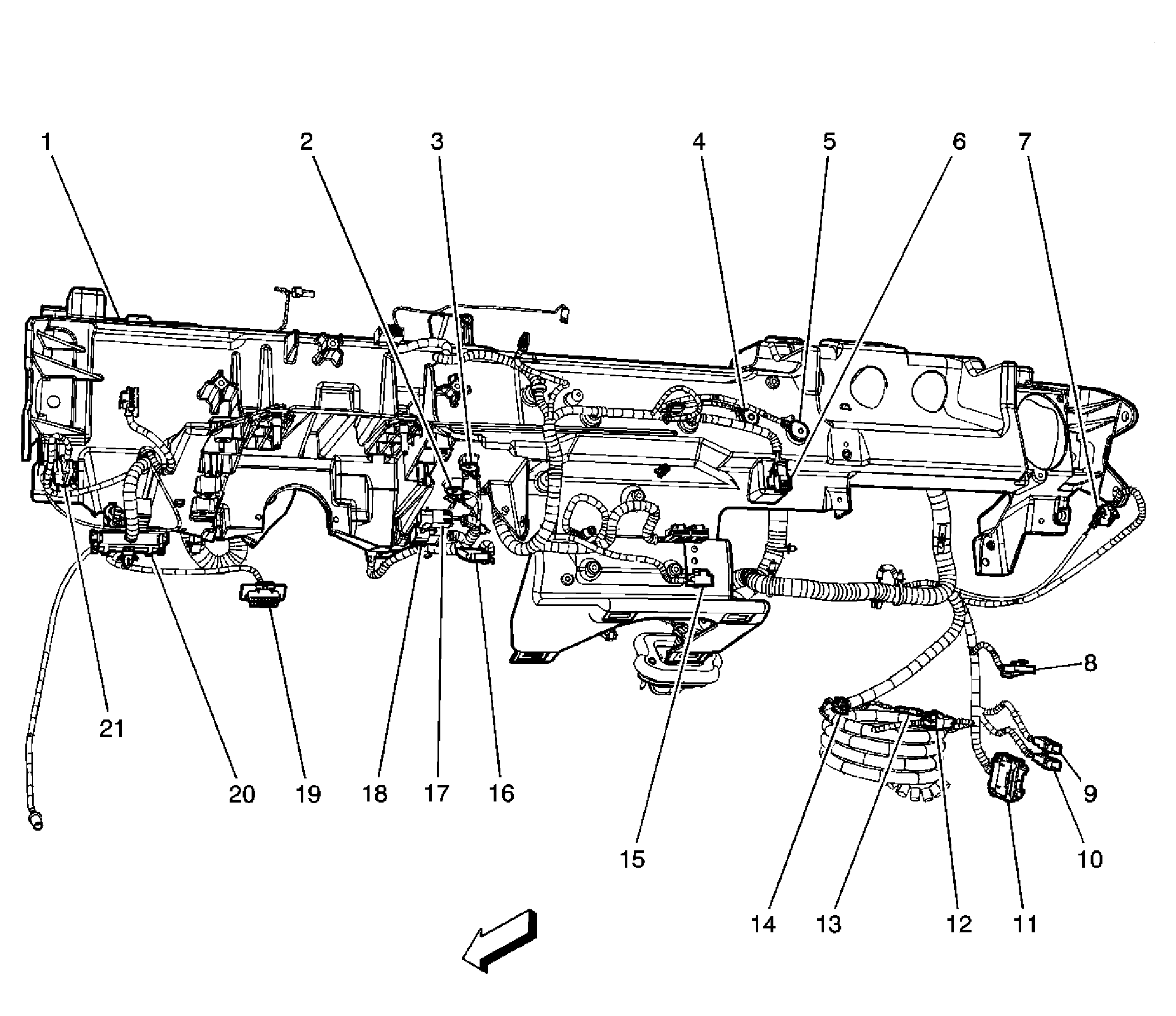

Fig 2: View Of I/P Harness - Front Of I/P Carrier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Carrier
2	G202
3	G201
4	G200
5	G204 (9C1, 9C3)
6	C210
7	Spot Lamp - Right Connector (9C1, 9C3)
8	Fuse Block - I/P C2
9	C360 (9C1 and 9C3)
10	C362 (9C1 and 9C3)
11	C200
12	C267 (9C1 and 9C3)
13	C266 (9C1 and 9C3)
14	C297 (9C1 and 9C3)
15	HVAC Control Module C2
16	Splice Pack SP205
17	Splice Pack SP 206 and Splice Pack SP207
18	C201
19	Data Link Connector (DLC)
20	C203
21	C250

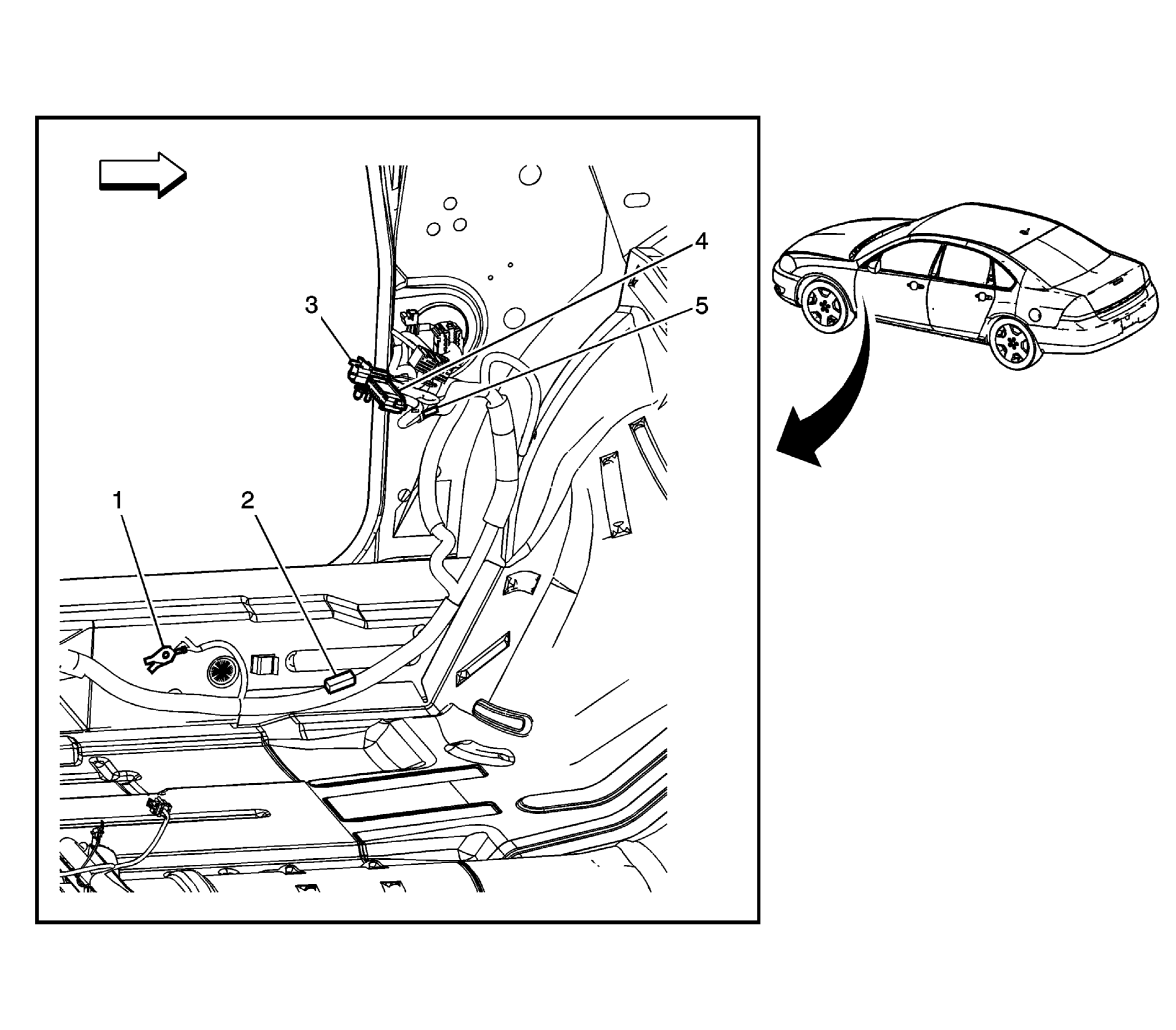

Fig 3: Exploded View Of Lower Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301
2	C223 - Taped to Harness (9C1,9C3)
3	C250
4	C203
5	Terminator Resistor-Taped to Harness (w/o UE1)

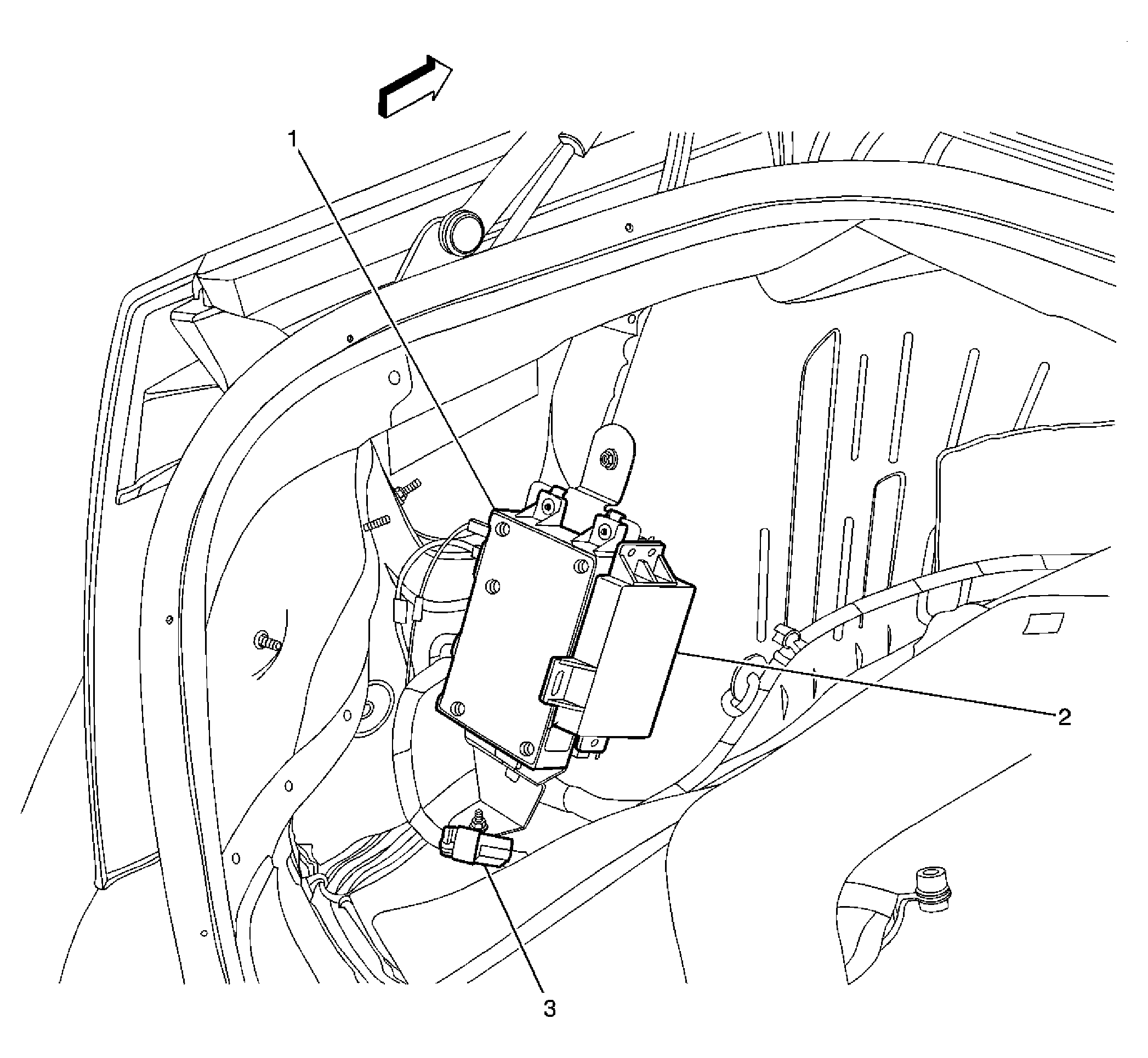

Fig 4: Identifying Left Side of Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM) (UE1)
2	Backup Battery (UE1 Late Production)
3	Terminator Resistor (w/UE1)
