Lighting Systems Component Views

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lamp Switch Assembly - Fog Lamp
2	Instrument Panel Cluster (IPC)
3	Ignition Switch
4	Air Temperature Sensor - Inside
5	Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (C67)
6	Theft LED
7	Driver Information Center (DIC)
8	Radio
9	HVAC Control Module
10	Heated Seat Switch - Front Passenger
11	Cigar Lighter
12	Heated Seat Switch - Driver
13	Steering Wheel Controls - Right
14	Cruise Control Switch
15	Voice Recorder / Cruise Switch Assembly
16	Steering Wheel Controls - Left
17	Turn Signal / Multifunction Switch
18	I/P Dimmer Switch
19	Lamp Switch Assembly - Interior Lamps

Fig 2: Rear of the Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier
2	Remote Control Door Lock Receiver (RCDLR)
3	Navigation Antenna
4	Rear Window Shelf
5	Rear Parking Assist (RPA) Module
6	Electronic Compass Module
7	Rear Compartment Courtesy Lamp

Fig 3: Right Side I/P Lighting

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Fuse Block - I/P
3	I/P Courtesy Lamp - Right

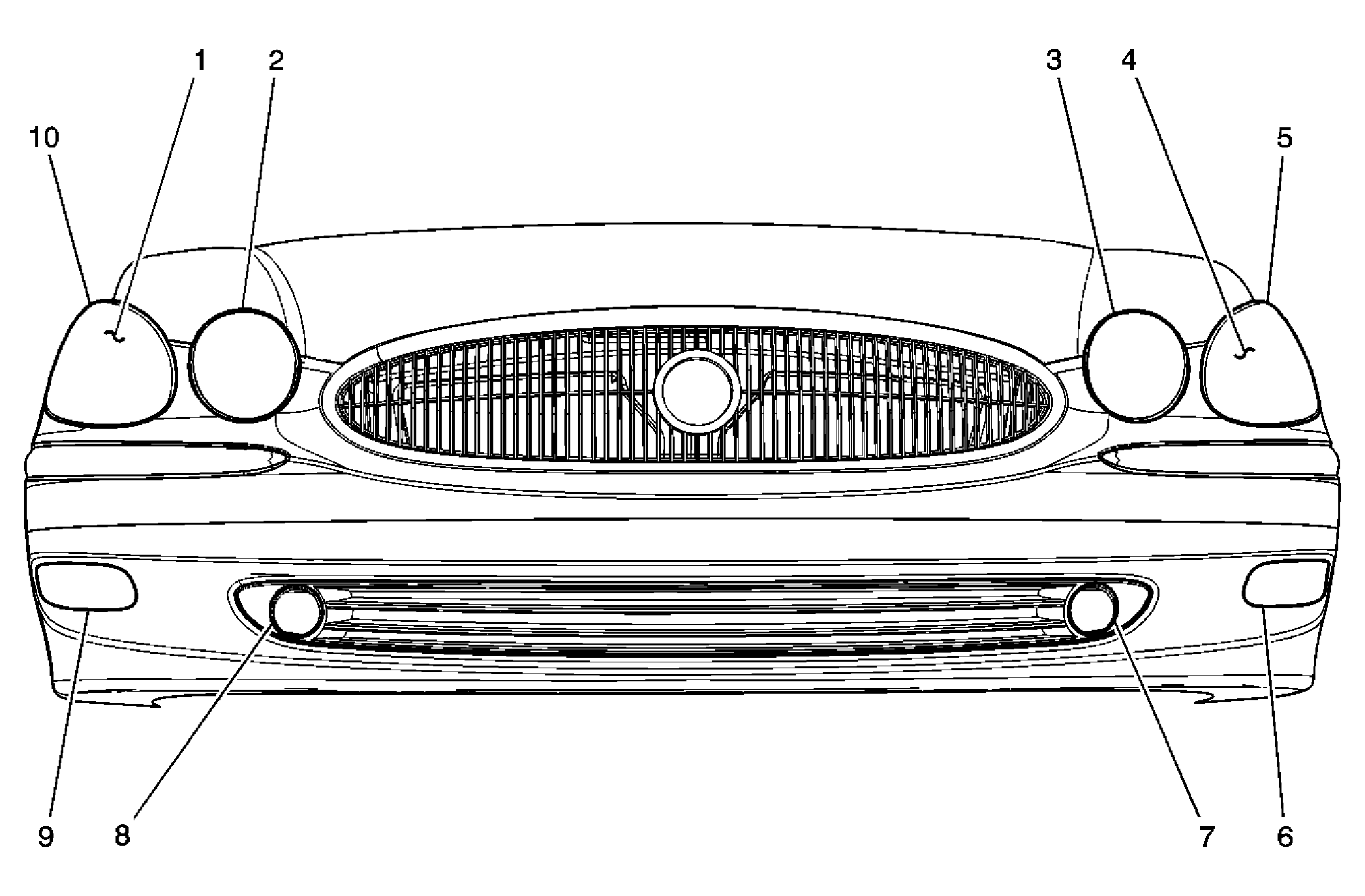

Fig 4: Front Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Headlamp - Low Beam - Left
4	Headlamp - High Beam - Left
5	Park / Turn Signal Lamp - LF
6	Marker Lamp - LF
7	Fog Lamp - LF
8	Fog Lamp - RF
9	Marker Lamp - RF
10	Park / Turn Signal Lamp - RF

Fig 5: Behind the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp
2	HVAC Control Module
3	Radio
4	Air Temperature Sensor - Inside
5	Steering Wheel
6	Instrument Panel Cluster (IPC)
7	Body Control Module (BCM)
8	Steering Angle Sensor
9	Vehicle Communication Interface Module (VCIM)
10	Cigar Lighter
11	Fuse Block - I/P

Fig 6: Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Reading Lamps - Overhead Console
2	Garage Door Opener
3	Dome / Reading Lamp - Left
4	Rear Park Assist (RPA) Display
5	Dome / Reading Lamp - Right

Fig 7: Rear of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Center High Mounted Stop Lamp (CHMSL)
3	Backup Lamp - Right
4	Tail Lamp - Right Upper
5	Tail / Stop and Turn Signal Lamp - Right
6	Marker Lamp - Right
7	Tail Lamp - Right Lower
8	Object Sensor - RR Corner
9	Object Sensor - RR Middle
10	License Lamp - Right
11	License Lamp - Left
12	Object Sensor - LR Middle
13	Object Sensor - LR Corner
14	Tail Lamp - Left Lower
15	Marker Lamp - Left
16	Tail / Stop and Turn Signal Lamp - Left
17	Backup Lamp - Left
18	Tail Lamp - Left Upper

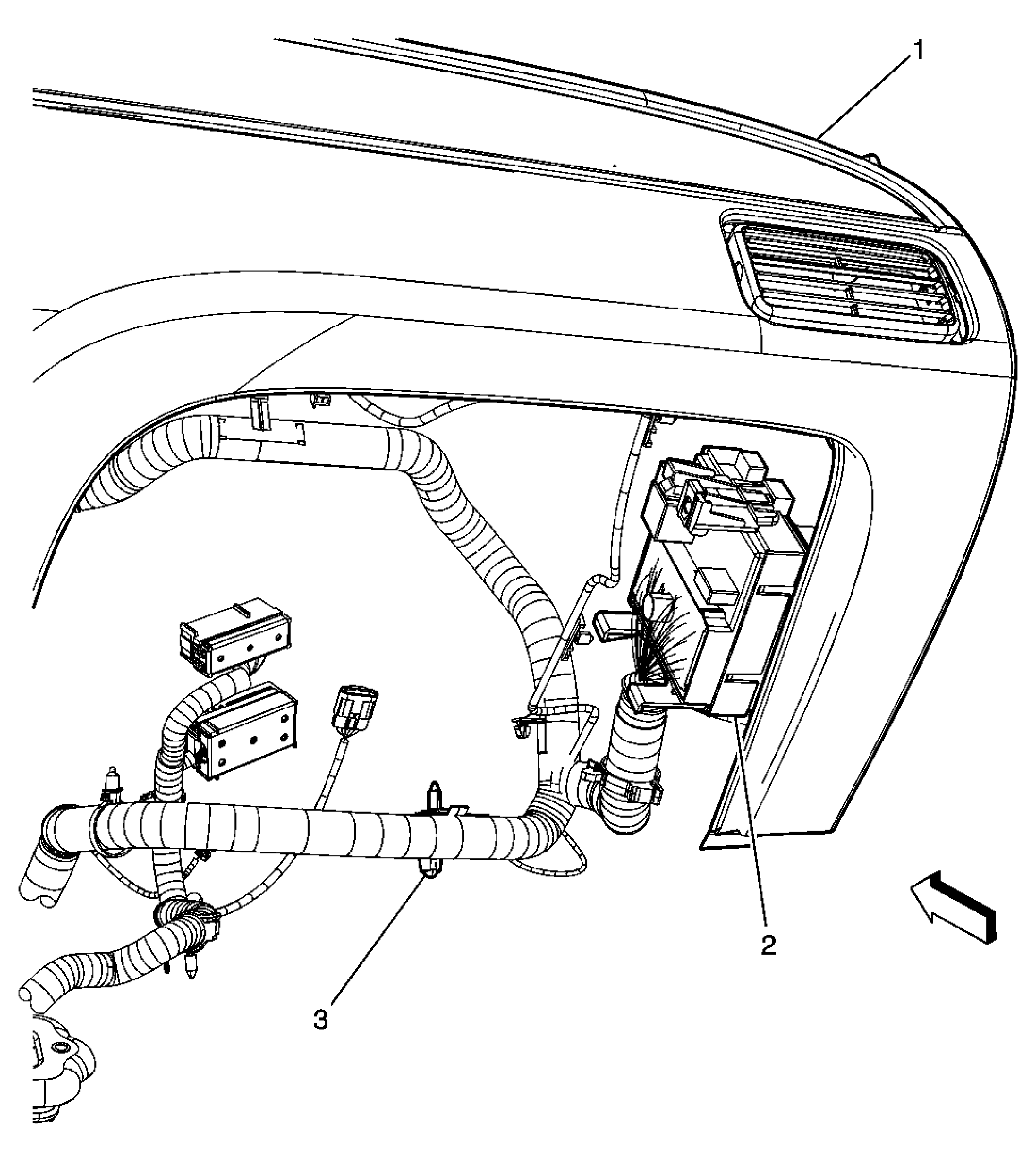

Fig 8: Right Side I/P Lighting

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Fuse Block - I/P
3	I/P Courtesy Lamp - Right

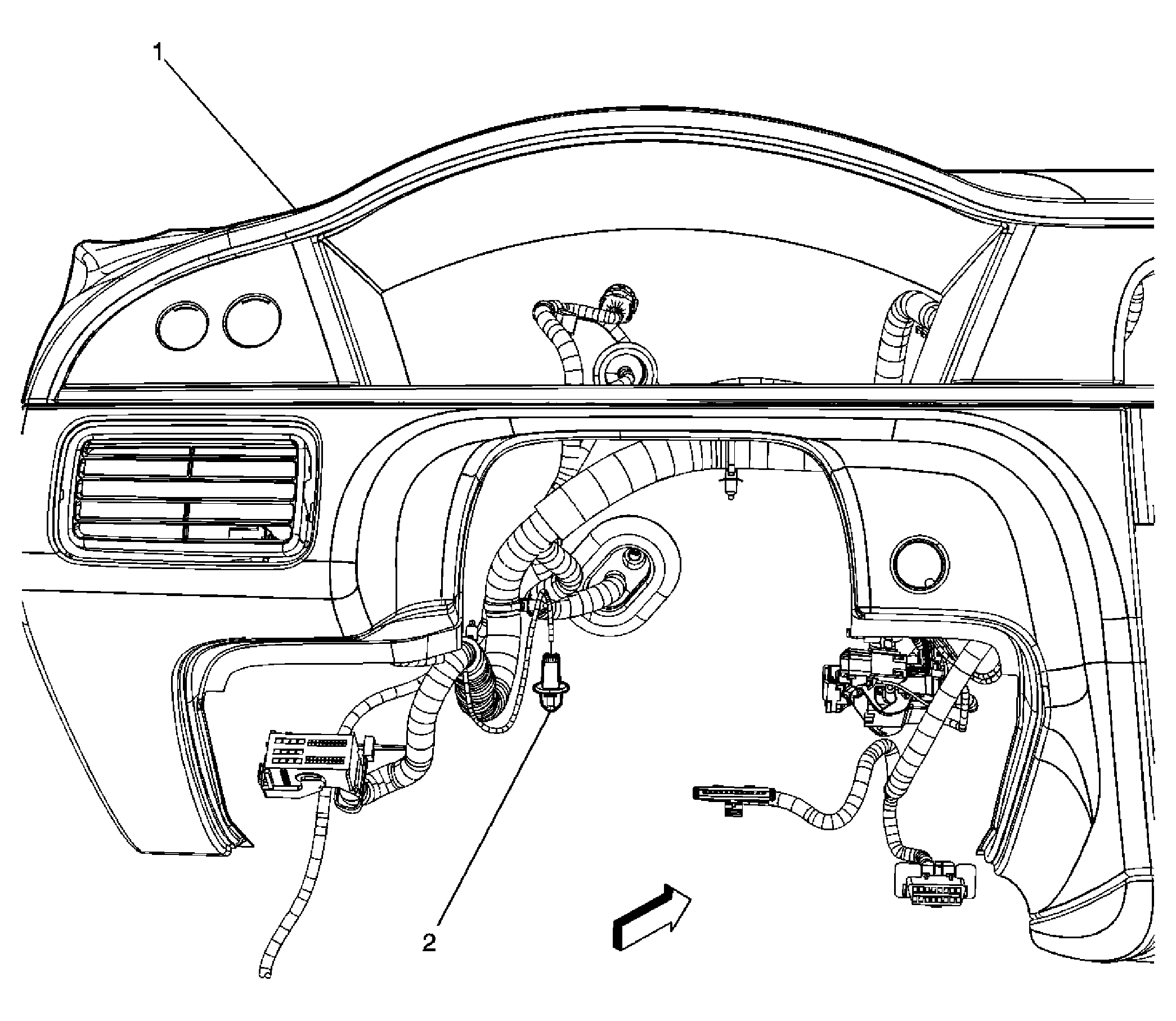

Fig 9: Left Side I/P Lighting

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	I/P Courtesy Lamp - Left
