Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Ambient Light Sensor (C67)

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 1137 DRL Ambient Light Sensor Signal
B BK/WH 1551 Ground
Backup Lamp - Left

GM877923Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530675 (AFL)
  • Service: See Catalog
  • 2-Way Socket (GY)
Pin Wire Color Circuit No. Function
A D-GN 24 Backup Lamp Supply Voltage
B BK 150 Ground
BK 150 Ground
Backup Lamp - Right

GM877923Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530675 (AFL)
  • Service: See Catalog
  • 2-Way Socket (GY)
Pin Wire Color Circuit No. Function
A D-GN 24 Backup Lamp Supply Voltage
B BK 150 Ground
BK 150 Ground
Brake Pedal Position Sensor

GM1243663Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15332132
  • Service: 88953364
  • 3-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A GY 598 10-Volt Reference
B L-GN 526 Stop Lamp Switch Signal
C BK 552 Low Reference
Center High Mounted Stop Lamp (CHMSL)

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: See Catalog
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A WH 1 Stop Lamp Switch Signal
B BK 2 Ground
Dome/Reading Lamp - Left

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047781
  • Service: 12101864
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Courtesy Lamp (DH6)
B BK 750 Ground
C GY/BK 690 Courtesy Lamp Supply Voltage
Dome/Reading Lamp - Right

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047781
  • Service: 12101864
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Courtesy Lamp (DH6)
B BK 750 Ground
C GY/BK 690 Courtesy Lamp Supply Voltage
Fog Lamp - Left (T96)

GM1413064Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124819
  • Service: 12085498
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamps Supply Voltage
B BK 1250 Ground
Fog Lamp - Right (T96)

GM1413064Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124819
  • Service: 12085498
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamps Supply Voltage
B BK 1250 Ground
Headlamp - High Beam - Left

GM808661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124817
  • Service: See Catalog
  • 2-Way F Metri-Pack 280 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A D-GN/BK 711 Left Headlamp High Beam Supply Voltage
B BK 1350 Ground
BK 1350 Ground
Headlamp - High Beam - Right

GM808661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12124817
  • Service: See Catalog
  • 2-Way F Metri-Pack 280 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A D-GN/BK 311 Right Headlamp High Beam Supply Voltage
B BK 150 Ground
BK 150 Ground

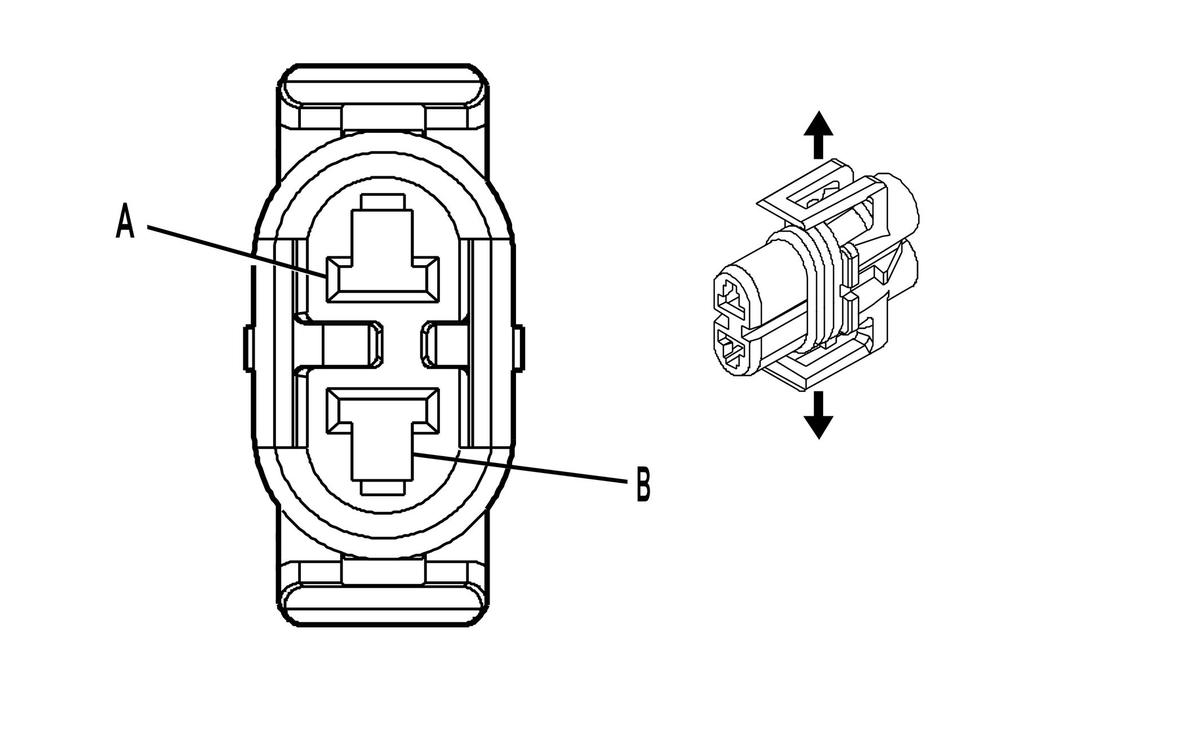

Headlamp - Low Beam - Left

GM1528375Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15393198
  • Service: See Catalog
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A TN/WH 712 Left Headlamp Low Beam Supply Voltage
B BK 1350 Ground
Headlamp - Low Beam - Right

GM1528375Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15393198
  • Service: See Catalog
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A TN/WH 312 Right Headlamp Low Beam Supply Voltage
B BK 150 Ground
I/P Compartment Lamp Switch

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Courtesy Lamp
B BK 1450 Ground
I/P Courtesy Lamp - Left

GM365949Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12084388
  • Service: See Catalog
  • 2-Way Lamp Socket Wedge Base W-2 (BK)
Pin Wire Color Circuit No. Function
A GY/BK 690 Courtesy Lamp Supply Voltage
B BK 1450 Ground
I/P Courtesy Lamp - Right

GM365949Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12084388
  • Service: See Catalog
  • 2-Way Lamp Socket Wedge Base W-2 (BK)
Pin Wire Color Circuit No. Function
A GY/BK 690 Courtesy Lamp Supply Voltage
B BK 1450 Ground
Lamp Assembly Switch

GM684891Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15324433 (Delphi)

    IL-AG5-185-D3C1 (JAE)

  • Service: 15324433
  • 18-Way F Socket Housing (GN)
Pin Wire Color Circuit No. Function
1 BN/WH 230 I/P Dimming Return
2 PK/BK 1597 Courtesy Lamps Switch On Signal
3 - - Not Used
4 GY/BK 1598 I/P Dimming Return
5 WH 103 Headlamp Switch Headlamps On Signal
6 BN/WH 301 Park Lamp Switch On Signal
7 OG 192 Front Fog Lamp Switch Signal (T96)
8 - - Not Used
9 PK 1444 I/P Dimming Control
10 RD/WH 812 I/P Dimming Voltage Reference
11-12 - - Not Used
13 BK 1450 Ground
14 GY 8 Instrument Panel Lamp Supply Voltage
15-16 - - Not Used
17 BK/WH 1551 Ground
18 L-BU 1872 Exterior Lamps Off Input
License Lamp - Left

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12110053
  • Service: See Catalog
  • 2-Way Lamp Socket Wedge Base W-2 (GY)
Pin Wire Color Circuit No. Function
A BN 14 Tail/License Lamps Supply Voltage
B D-BU 150 Ground
License Lamp - Right

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12110053
  • Service: See Catalog
  • 2-Way Lamp Socket Wedge Base W-2 (GY)
Pin Wire Color Circuit No. Function
A BN 14 Tail/License Lamps Supply Voltage
B D-GN 150 Ground
Marker Lamp - LF

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15300027
  • Service: See Catalog
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 1350 Ground
Marker Lamp - LR

GM1199757Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15317651
  • Service: See Catalog
  • 2-Way Lamp Socket Wedge Base W2 (GY)
Pin Wire Color Circuit No. Function
A BK 150 Ground
B BN 9 Park Lamp Supply Voltage
Marker Lamp - RF

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15300027
  • Service: See Catalog
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 1250 Ground
Marker Lamp - RR

GM1199757Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15317651
  • Service: See Catalog
  • 2-Way Lamp Socket Wedge Base W2 (GY)
Pin Wire Color Circuit No. Function
A BK 150 Ground
B BN 9 Park Lamp Supply Voltage

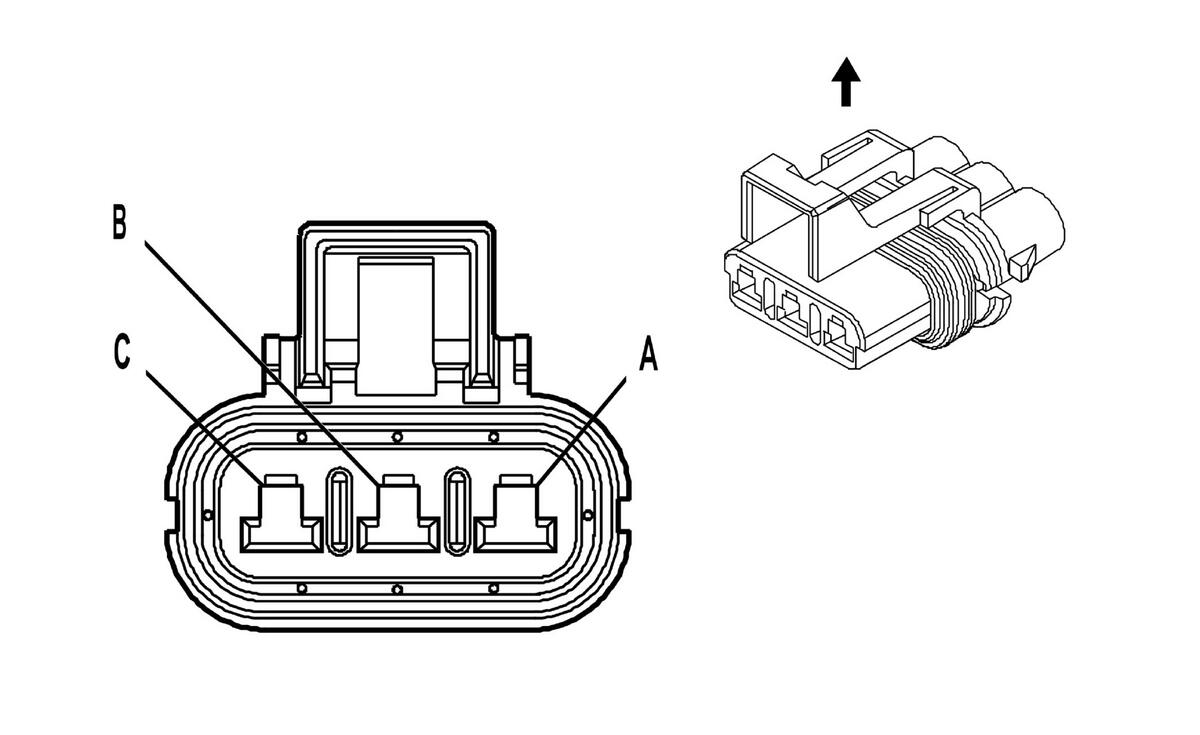

Park/Turn Signal Lamp - LF

GM847206Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12040977
  • Service: 12085492
  • 3-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
B BN 9 Park Lamp Supply Voltage
C BK 1250 Ground
Park/Turn Signal Lamp - RF

GM847206Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12040977
  • Service: 12085492
  • 3-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A L-BU/WH 1314 Right Front Turn Signal Lamp Supply Voltage
B BN 9 Park Lamp Supply Voltage
C BK 1250 Ground
PRNDL Lamp

GM407137Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12162711
  • Service: See Catalog
  • 2-Way Lamp Socket Wedge Base W2 (BK)
Pin Wire Color Circuit No. Function
A BU - Instrument Panel Lamp Supply Voltage
B BU - Ground
Rear Compartment Courtesy Lamp

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Courtesy Lamp
B OG/BK 737 Rear Compartment Courtesy Lamp Switch
Sunload Sensor Assembly (CJ2)

GM130637Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064760
  • Service: 12085208
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-BU/BK 590 Driver Sunload Sensor Signal
B GY 1548 Passenger Sunload Sensor Signal
C BK/WH 1551 Ground
D L-GN/BK 1137 DRL Ambient Light Sensor Signal
Tail Lamp - Left - Lower

GM877923Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530675 (AFL)
  • Service: See Catalog
  • 2-Way Socket (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
B BK 150 Ground
BK 150 Ground
Tail Lamp - Left - Upper

GM877923Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530675 (AFL)
  • Service: See Catalog
  • 2-Way Socket (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
B BK 150 Ground
BK 150 Ground
Tail Lamp - Right - Lower

GM877923Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530675 (AFL)
  • Service: See Catalog
  • 2-Way Socket (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
B BK 150 Ground
BK 150 Ground
Tail Lamp - Right - Upper

GM877923Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530675 (AFL)
  • Service: See Catalog
  • 2-Way Socket (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
B BK 150 Ground
BK 150 Ground

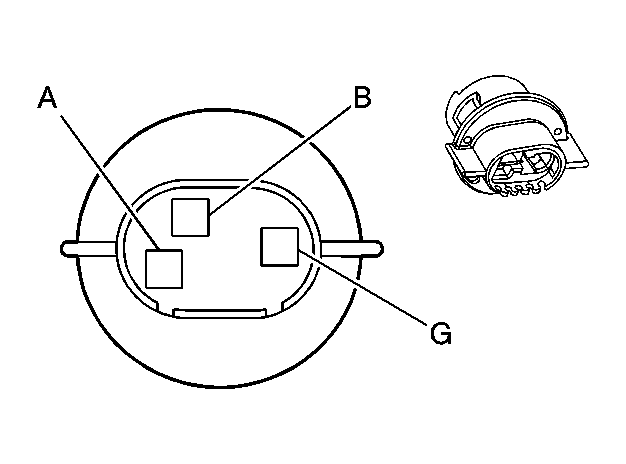

Tail/Stop and Turn Signal Lamp - Left

GM877925Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530671 (AFL)
  • Service: See Catalog
  • 3-Way Socket (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
B YE 18 Left Rear Stop/Turn Lamp Supply Voltage
G BK 150 Ground
BK 150 Ground
Tail/Stop and Turn Signal Lamp - Right

GM877925Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 16530671 (AFL)
  • Service: See Catalog
  • 3-Way Socket (GY)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
B YE 18 Right Rear Stop/Turn Lamp Supply Voltage
G BK 150 Ground
BK 150 Ground
Turn Signal/Multifunction Switch C1

GM130718Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12059800
  • Service: 15306169
  • 5-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN 1356 Flash To Pass Switch Signal
B-C - - Not Used
D BK/WH 1551 Ground
E PU 524 Headlamp Dimmer Switch High Beam Signal
Turn Signal/Multifunction Switch C2

GM39746Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12064862
  • Service: 12126438
  • 8-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A-E - - Not Used
F L-BU/WH 1414 Left Turn Signal Switch Signal
G BK/WH 1551 Ground
H D-BU/WH 1415 Right Turn Signal Switch Signal
Turn Signal/Multifunction Switch C3

GM811190Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15339058
  • Service: See Catalog
  • 7-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
G - - Not Used
H BK/WH 1251 Ground
J PK 94 Windshield Washer Switch Signal
K L-GN 1715 Windshield Wiper Switch High Signal
L L-BU 1714 Windshield Wiper Switch Low Signal
M-N - - Not Used
Vanity Mirror Lamp - Left (DH6)

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Courtesy Lamp
B BK 750 Ground
Vanity Mirror Lamp - Right (DH6)

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12047662
  • Service: 12085535
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Power Courtesy Lamp
B BK 750 Ground
scientia non olet · About LEMON Manuals
