Mirror Connectors

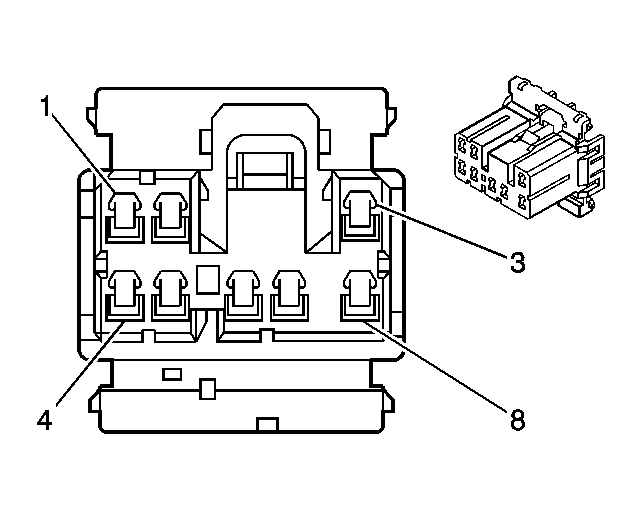

Folding Mirror Unit Connector End View/Part Information/Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-GN/BK | - | Fold Signal |
| 2 | - | - | Not Used |
| 3 | RD/WH | - | Battery Positive Voltage |
| 4 | BN | - | Ignition 2 Voltage |
| 5 | BK | - | Ground |
| 6 | - | - | Not Used |
| 7 | BN | - | Folding Mirror Motor Feed |
| 8 | OG | - | Folding Mirror Motor Feed |
Outside Rearview Mirror Connector End View/Part Information/Terminal Identification - Driver
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-2 | - | - | Not Used |
| 3 | OR | - | Heated Mirror Element Feed |
| 4 | GY | - | Power Mirror Motor Feed-Right Horizontal Motor-Left Direction |
| 5 | - | - | Not Used |
| 6 | YE | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction (RHD) |
| L-BU | - | Power Mirror Motor Feed-Left Horizontal Motor-Left Direction (LHD) | |
| 7 | L-BU | - | Power Mirror Motor Feed-Left Horizontal Motor-Left Direction (RHD) |
| YE | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction (LHD) | |
| 8 | BK | - | Heated Mirror Element Ground |
Outside Rearview Mirror Connector End View/Part Information/Terminal Identification - Driver (Folding Mirrors)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OR | - | Folding Mirror Motor Feed |
| 2 | BN | - | Folding Mirror Motor Feed |
| 3 | - | - | Not Used |
| 4 | GY | - | Power Mirror Motor Feed-Right Horizontal Motor-Left Direction |
| 5 | - | - | Not Used |
| 6 | YE | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction |
| 7 | L-BU | - | Power Mirror Motor Feed-Left Horizontal Motor-Left Direction |
| 8 | - | - | Not Used |
Outside Rearview Mirror Connector End View/Part Information/Terminal Identification - Passenger
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-2 | - | - | Not Used |
| 3 | OR | - | Heated Mirror Element Feed |
| 4 | GY | - | Power Mirror Motor Feed-Right Horizontal Motor-Left Direction |
| 5 | - | - | Not Used |
| 6 | L-GN | - | Power Mirror Motor Feed-Left Vertical Motor-Down Direction (RHD) |
| WH | - | Power Mirror Motor Feed-Left Horizontal Motor-Right Direction (LHD) | |
| 7 | WH | - | Power Mirror Motor Feed-Left Horizontal Motor-Right Direction (RHD) |
| L-GN | - | Power Mirror Motor Feed-Left Vertical Motor-Down Direction (LHD) | |
| 8 | BK | - | Heated Mirror Element Ground |
Outside Rearview Mirror Connector End View/Part Information/Terminal Identification - Passenger (Folding Mirrors)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OR | - | Folding Mirror Motor Feed |
| 2 | BN | - | Folding Mirror Motor Feed |
| 3 | - | - | Not Used |
| 4 | GY | - | Power Mirror Motor Feed-Right Horizontal Motor-Left Direction |
| 5 | - | - | Not Used |
| 6 | L-GN | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction |
| 7 | WH | - | Power Mirror Motor Feed-Left Horizontal Motor-Left Direction |
| 8 | - | - | Not Used |
Outside Rearview Mirror Switch Connector End View/Part Information/Terminal Identification (RHD)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | L-BU | - | Power Mirror Motor Feed-Left Horizontal Motor-Left Direction |
| 2 | - | - | Not Used |
| 3 | WH | - | Power Mirror Motor Feed-Left Horizontal Motor-Right Direction |
| 4 | GY | - | Power Mirror Motor Feed-Right Horizontal Motor-Left Direction |
| 5 | YE | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction |
| 6 | BK | - | Ground |
| 7 | L-GN | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction |
| 8 | BN | - | Ignition 3 Voltage |
Outside Rearview Mirror Switch Connector End View/Part Information/Terminal Identification (LHD)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction |
| 2 | - | - | Not Used |
| 3 | L-GN | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction |
| 4 | GY | - | Power Mirror Motor Feed-Right Horizontal Motor-Left Direction |
| 5 | L-BU | - | Power Mirror Motor Feed-Left Horizontal Motor-Left Direction |
| 6 | BK | - | Ground |
| 7 | WH | - | Power Mirror Motor Feed-Left Horizontal Motor-Right Direction |
| 8 | BN | - | Ignition 3 Voltage |
Outside Rearview Mirror Switch Connector End View/Part Information/Terminal Identification (Folding Mirrors)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction |
| 2 | D-GN/BK | - | Fold Signal |
| 3 | L-GN | - | Power Mirror Motor Feed-Left Vertical Motor-Up Direction |
| 4 | GY | - | Power Mirror Motor Feed-Right Horizontal Motor-Left Direction |
| 5 | L-BU | - | Power Mirror Motor Feed-Left Horizontal Motor-Left Direction |
| 6 | BK | - | Ground |
| 7 | WH | - | Power Mirror Motor Feed-Left Horizontal Motor-Right Direction |
| 8 | BN | - | Ignition 3 Voltage |
