Keyless Entry Module: Service and Repair

Remote Control Door Lock Receiver Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the floor console.

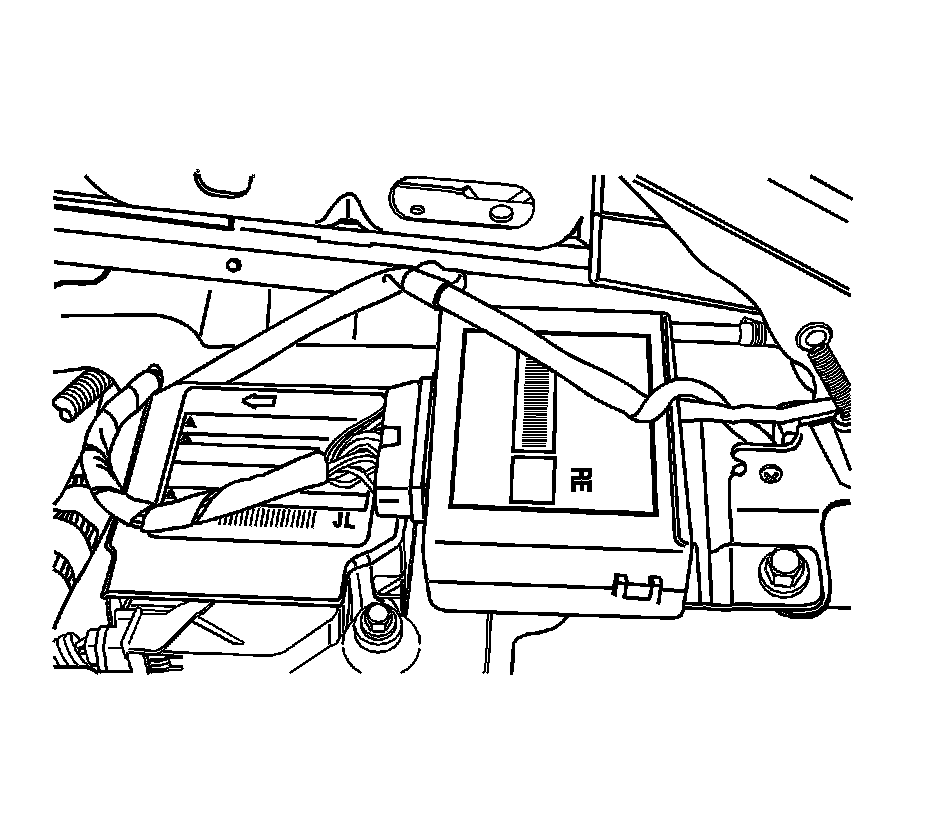

3. Disconnect the control module/receiver electrical connector.
4. Slide the control module/receiver away from its mounting bracket.

Installation Procedure




1. Install the control module/receiver on its mounting bracket.
2. Connect the control module/receiver electrical connector.
3. Install the floor console.
4. Connect the negative battery cable.
