Antilock Brake System Connector End Views (Notchback)

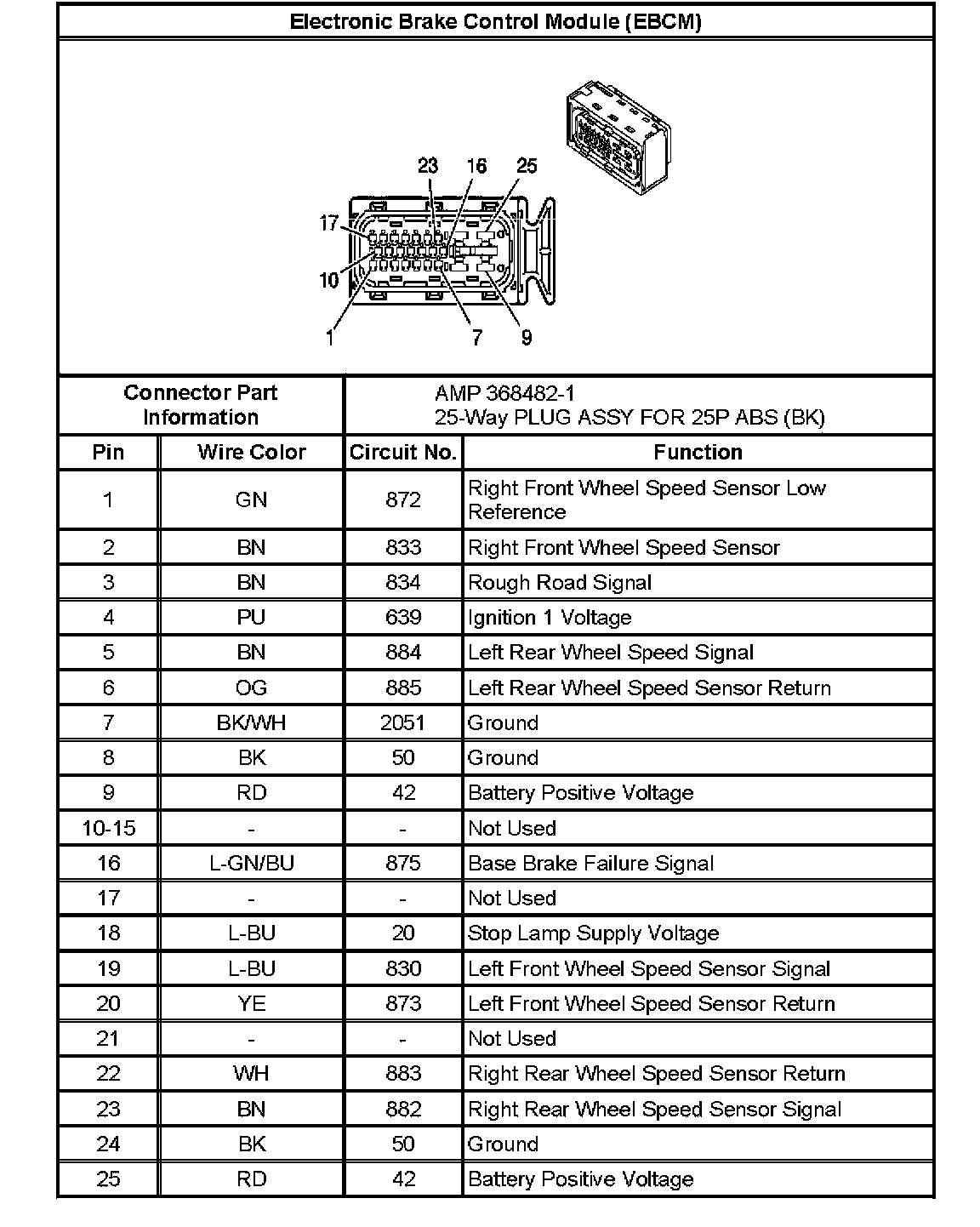

Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM):
