Shift Select Control
Shift Select Control

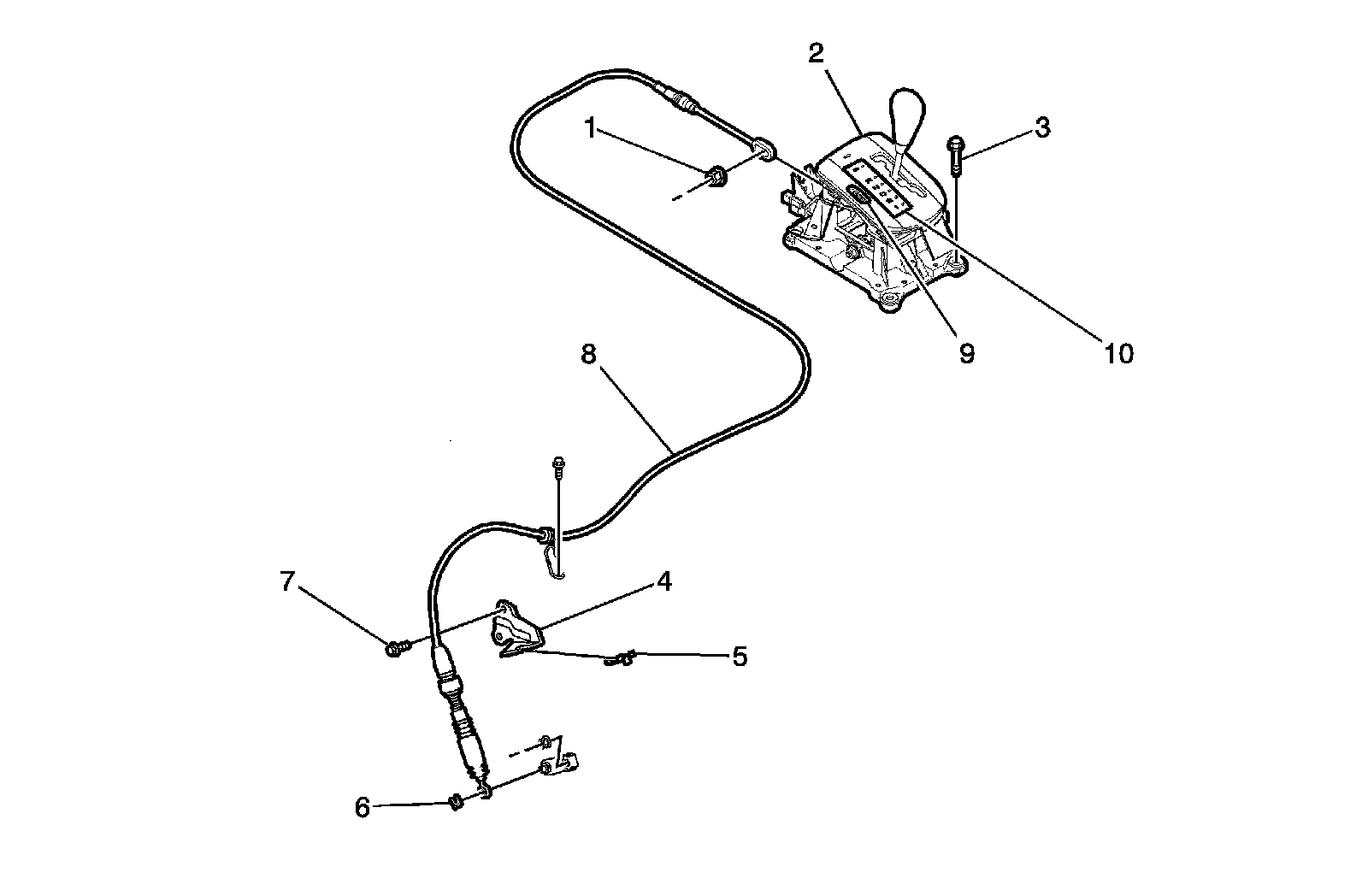

Shift Select Control:
1 - Nut
2 - Select Control Lever Assembly
3 - Bolt
4 - Cable Fastener
5 - Clamp
6 - E-Ring
7 - Bolt
8 - Select Control Cable
9 - Shift Program Switch
10 - Shift Indicator Lamp
Shift Select Control
1 - Nut
2 - Select Control Lever Assembly
3 - Bolt
4 - Cable Fastener
5 - Clamp
6 - E-Ring
7 - Bolt
8 - Select Control Cable
9 - Shift Program Switch
10 - Shift Indicator Lamp
