Lamp Control Module: Service and Repair

Lamp Control Module Replacement

Replacement Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the instrument panel low cover.

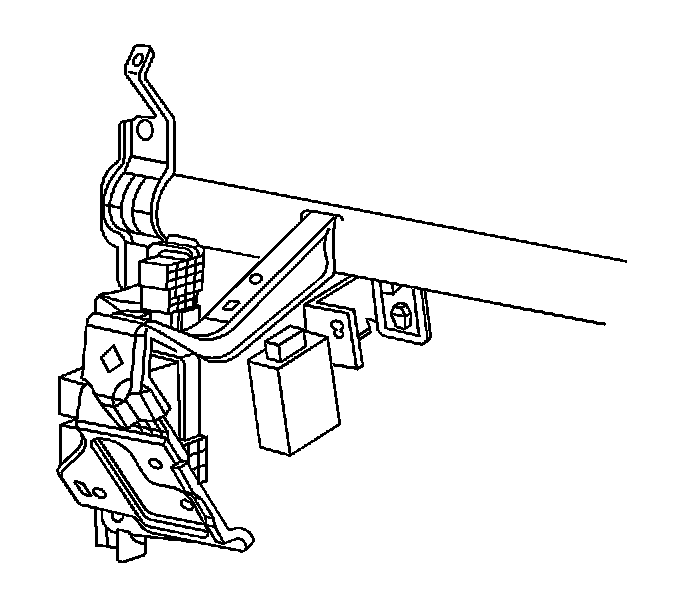

3. Remove the screws and the lamp control module.
4. Disconnect the electrical connector.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the lamp control module with the screws.
2. Connect the electrical connector.
3. Install the instrument panel low cover.
4. Connect the negative battery cable.
