Coolant Temperature Sensor/Switch (For Computer): Locations

Engine Controls Component Views

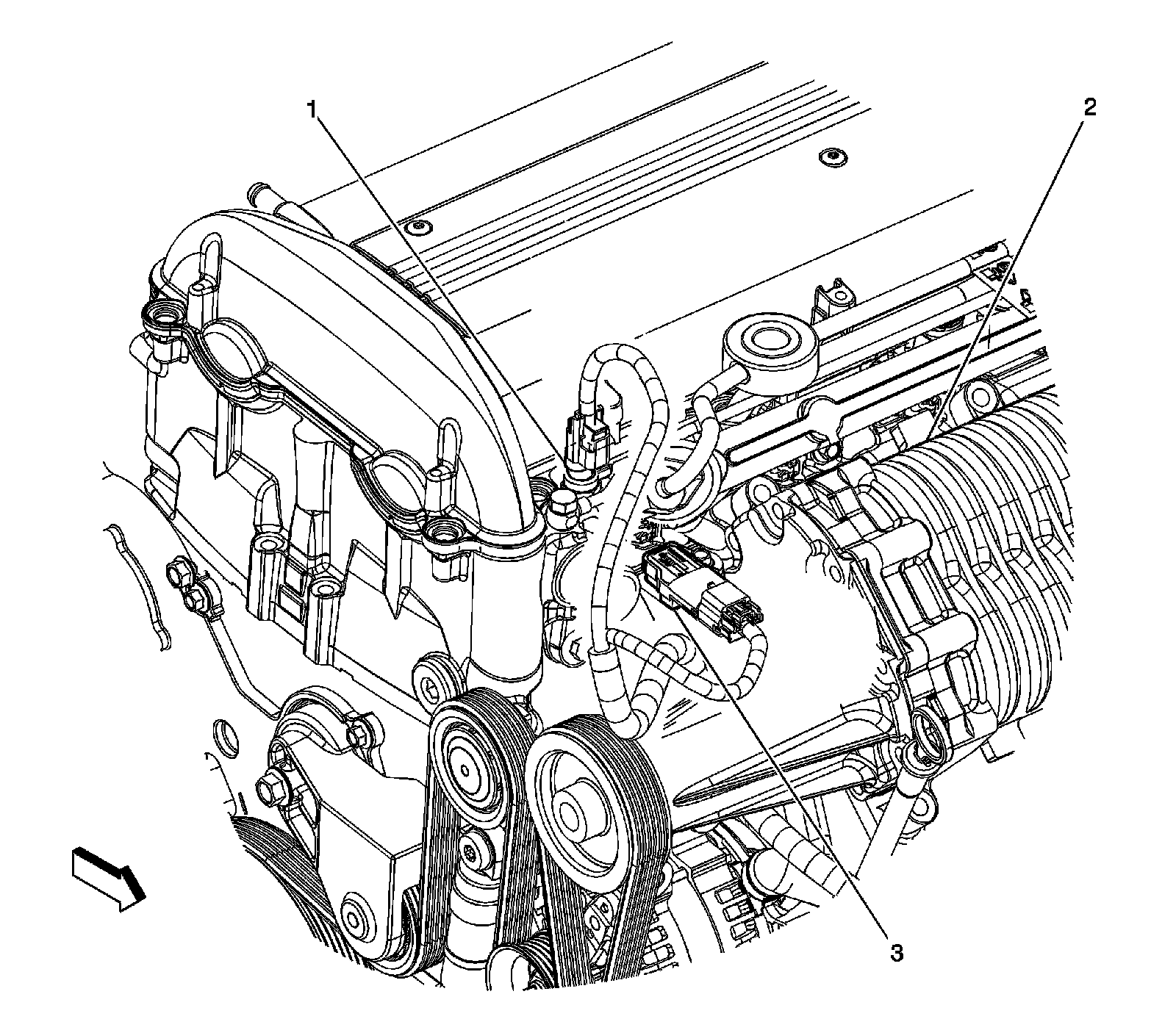

Top Front of the Engine (LSJ)




1 - Engine Coolant Temperature (ECT) Sensor
2 - Supercharger
3 - Manifold Absolute Pressure (MAP) Sensor
