Central Control Module: Locations

Entertainment/Communication Component Views

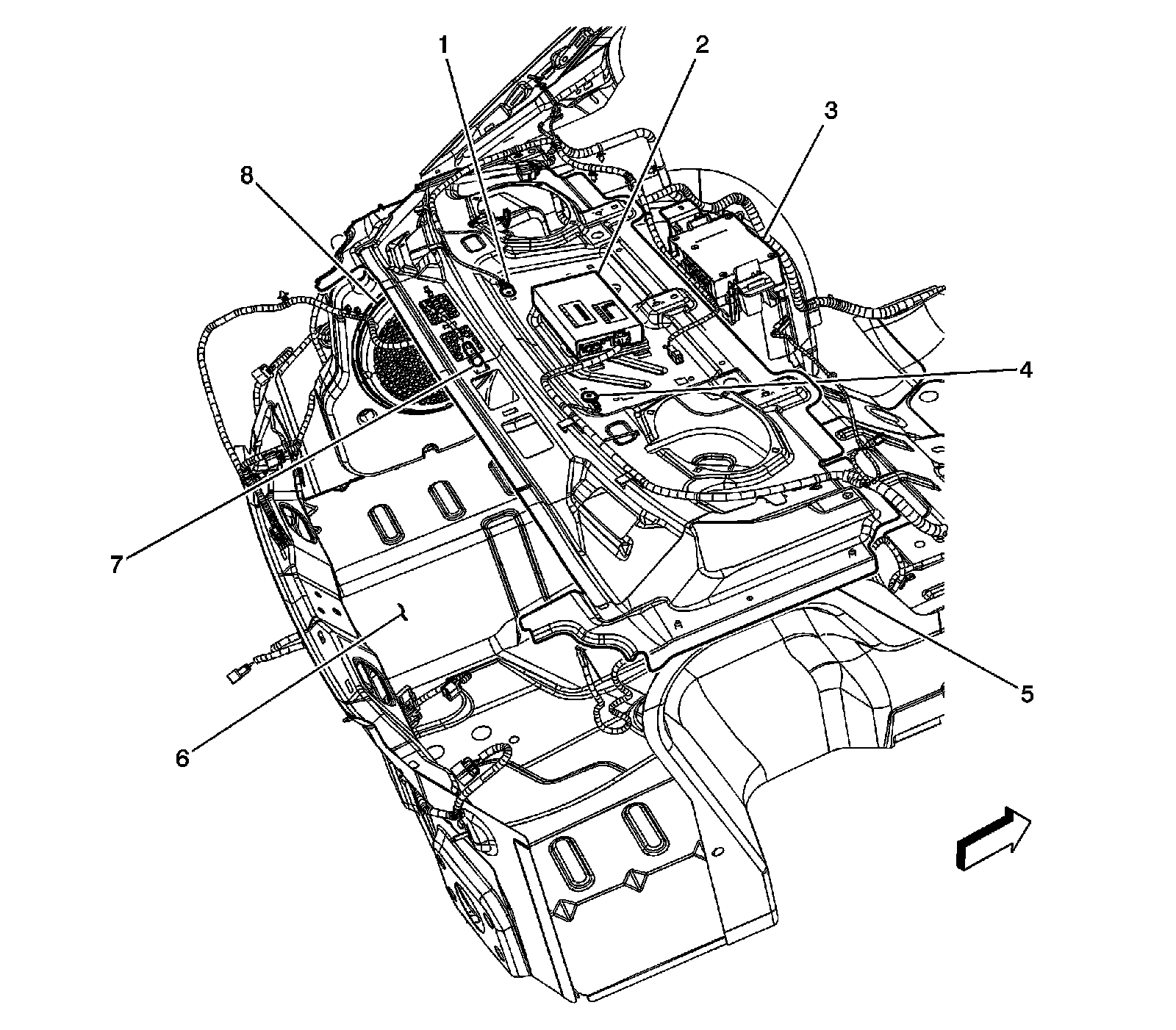

Rear Compartments and Shelf Components




1 - G401
2 - Digital Radio Receiver (U2K)
3 - Vehicle Communication Interface Module (VCIM) (UE1)
4 - G402
5 - Rear Window Shelf
6 - Floor Pan
7 - Rear Compartment Coutesty Light
8 - Speaker - Subwoofer (UQ3)
