Body Control Module (BCM)

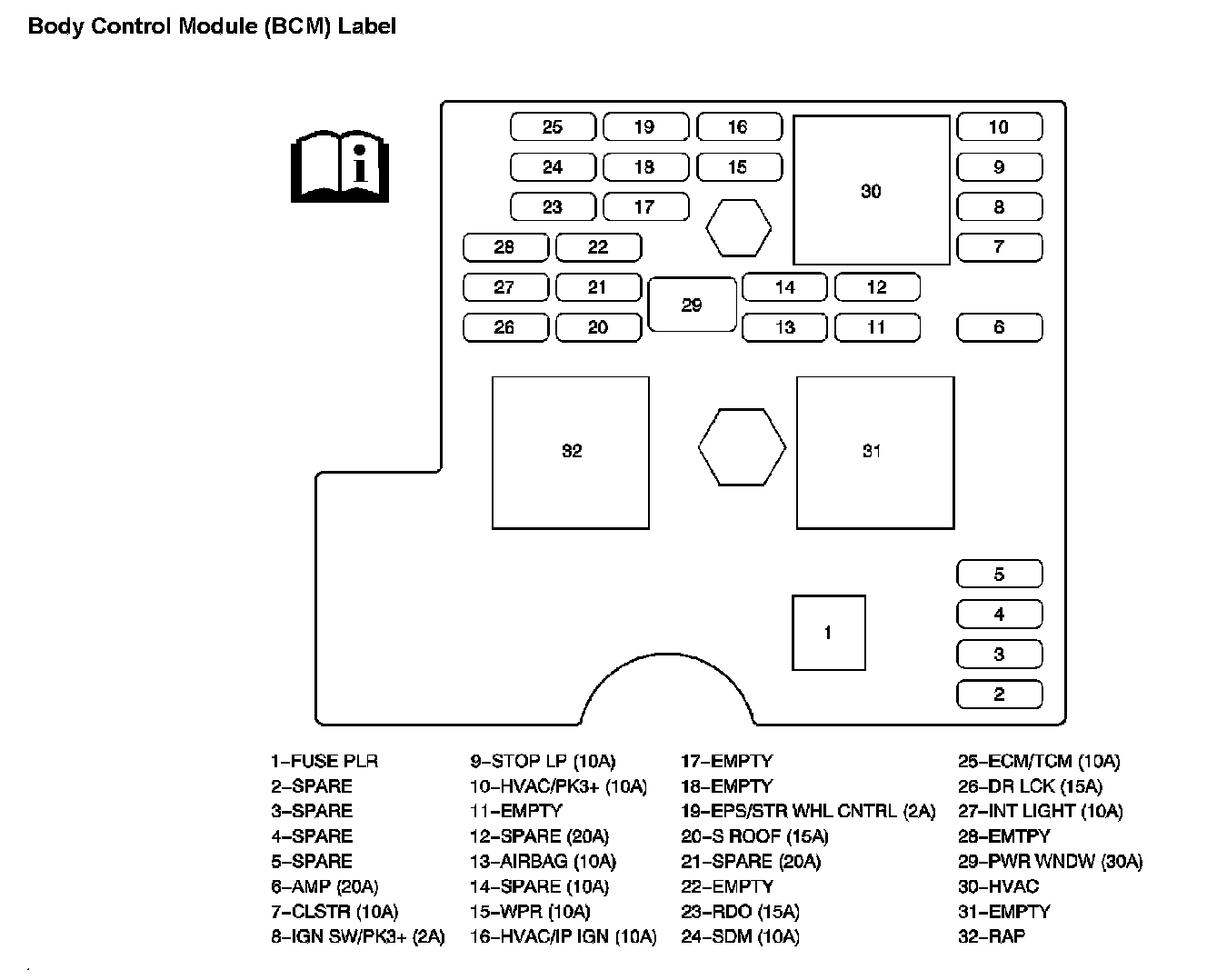

Body Control Module (BCM) Label:

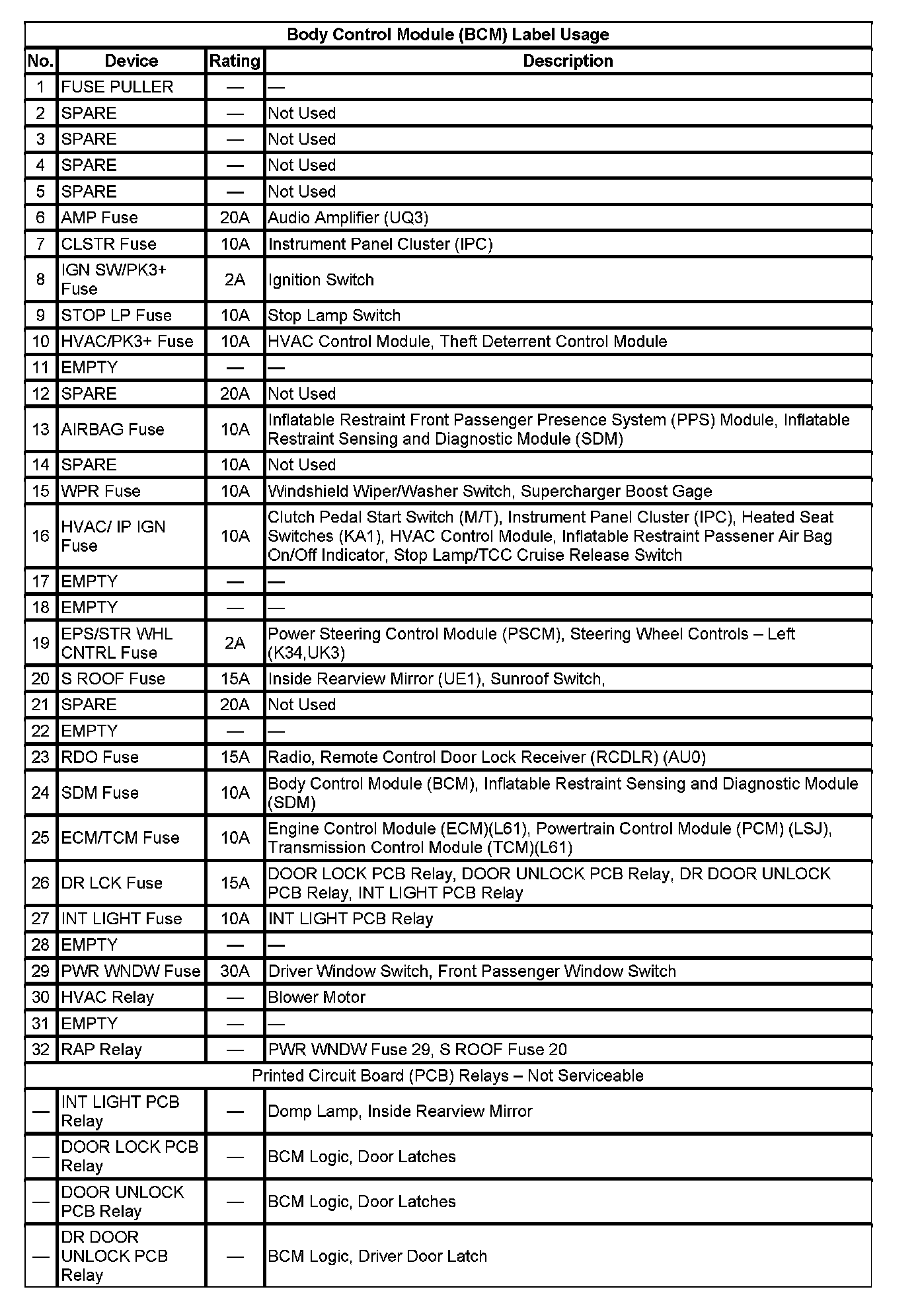

Body Control Module (BCM) Label Usage (Part 1):




Body Control Module (BCM) Label Usage (Part 2):
