Antilock Brake System Component Views

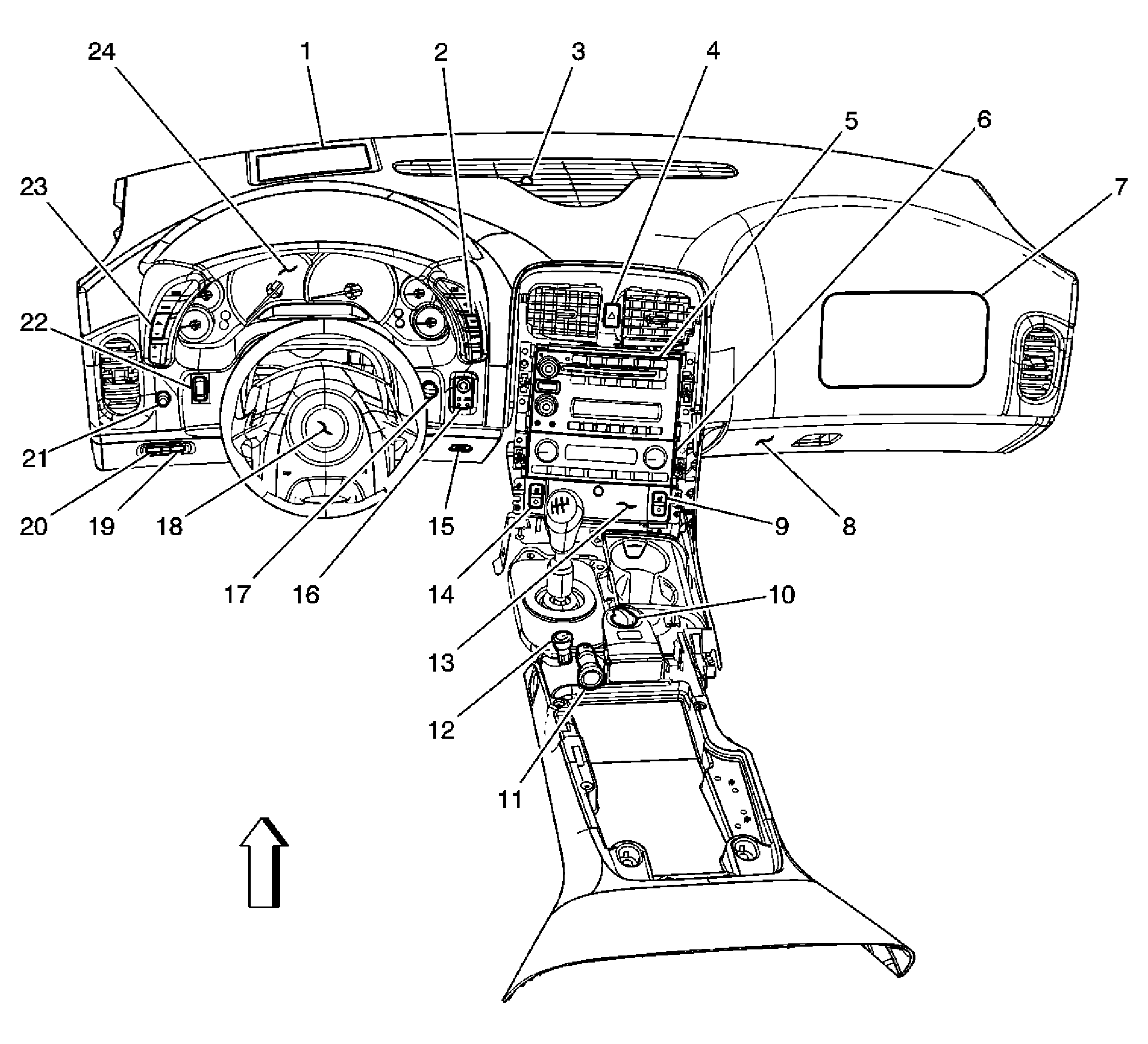

Fig 1: I/P Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Head Up Display (HUD) (UV6)
2	Driver Information Center (DIC) Switch
3	Sunload Sensor Assembly
4	Hazard Switch
5	Radio
6	HVAC Control Module
7	I/P Compartment Lamp
8	Heated Seat Switch - Passenger
9	Suspension Control Switch
10	Auxiliary Power Outlet
11	Traction Control Switch
12	Cigar Lighter
13	Heated Seat Switch - Driver
14	Courtesy Lamp - Left
15	Ignition Mode Switch
16	Air Temperature Sensor - Inside
17	Inflatable Restraint Steering Wheel Module
18	Rear Compartment Lid Release Switch - Interior
19	Fuel Door Release Switch
20	I/P Dimmer Switch
21	Folding Top Control Switch (CM7)
22	Head Up Display (HUD) Switch (UV6)
23	Instrument Panel Cluster (IPC)

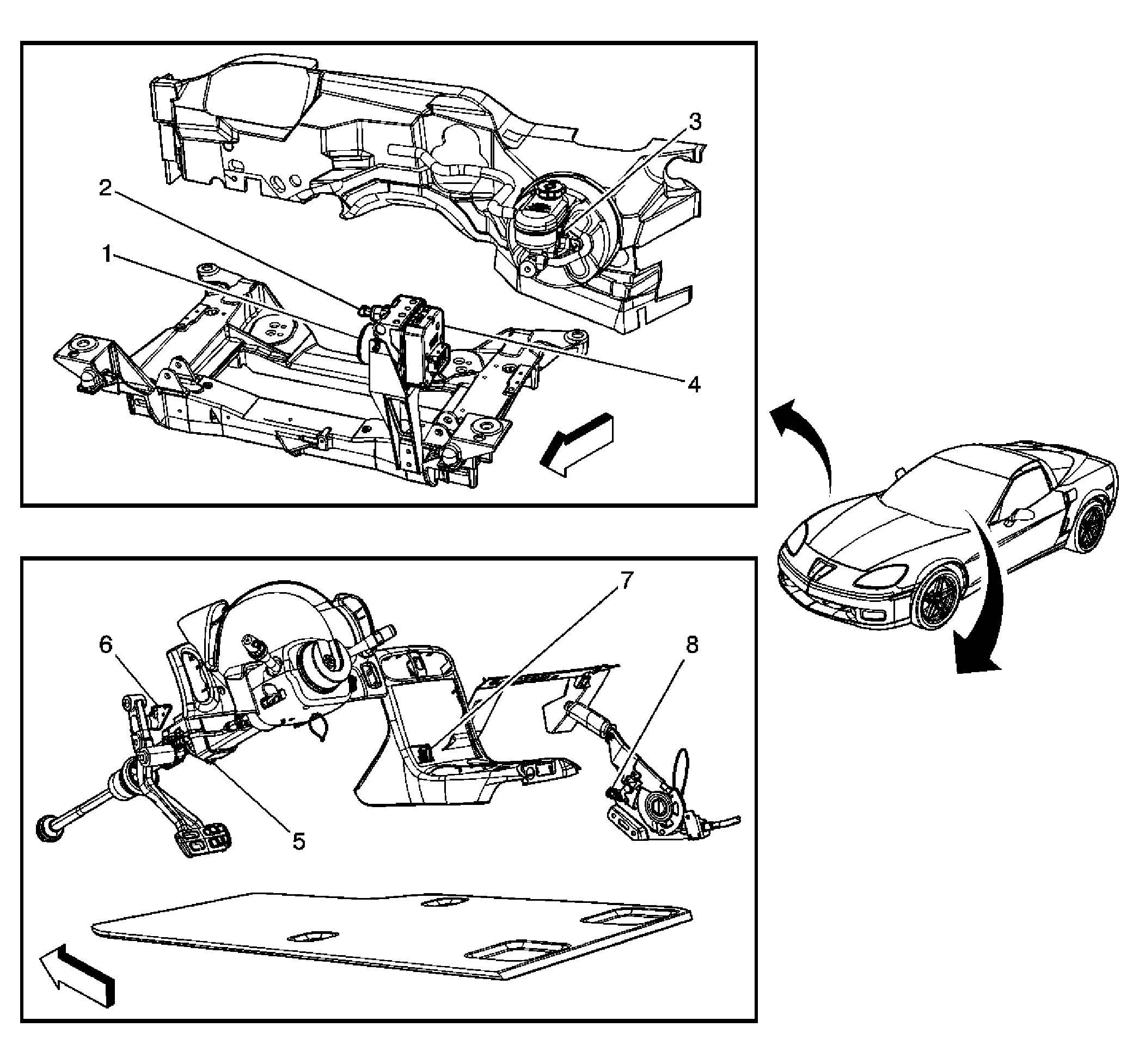

Fig 2: ABS Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pressure Modulator Valve (BPMV)
2	Brake Fluid Pressure Sensor
3	Brake Fluid Level Switch
4	Electronic Brake Control Module (EBCM)
5	Steering Angle Sensor
6	Brake Pedal Position Sensor
7	Yaw and Lateral Accelerometer Sensor
8	Park Brake Switch

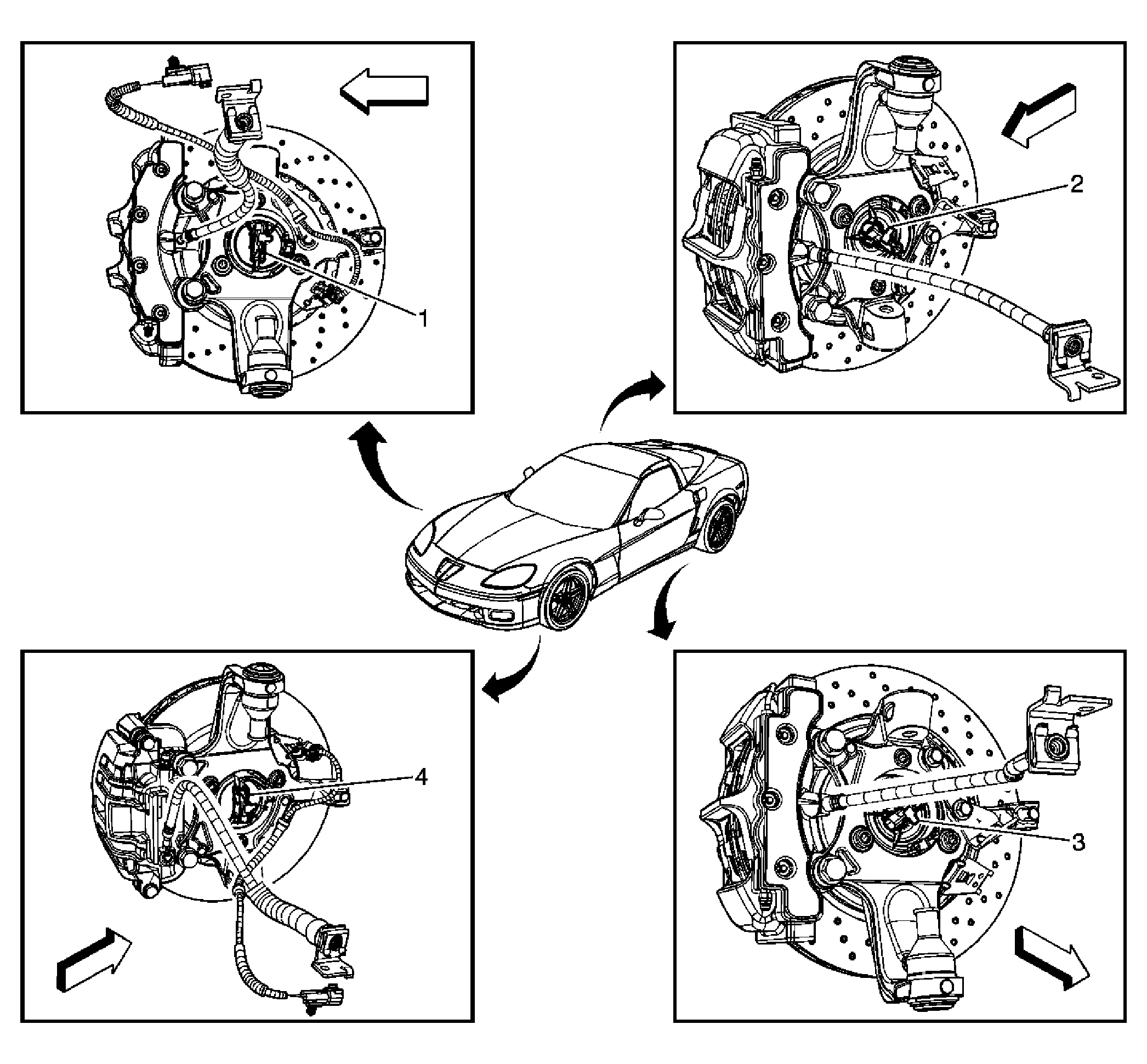

Fig 3: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.
