Electronic Brake Control Module (EBCM)

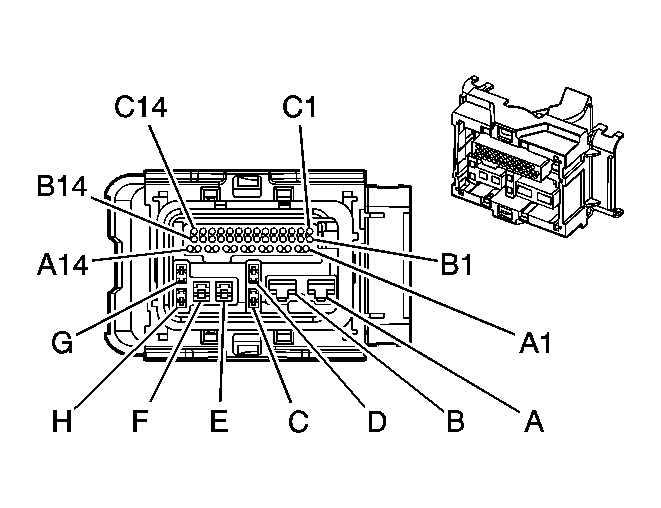

Fig 1: Electronic Brake Control Module (EBCM) Connector End View
GM1283867Courtesy of GENERAL MOTORS CORP.
Electronic Brake Control Module (EBCM) Connector Parts Information

Connector Part Information
  • OEM: 15410622
  • Service: 88953397
  • Description: 27-Way F Micro-Pack 100 Series (BK)
Terminal Part Information
  • Pins: A1-A8, B9-B14, C6-C10
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
  • Pins: A, B
  • Terminal/Tray: 15305232/23
  • Core/Insulation Crimp: B/3
  • Release Tool/Test Probe: J-38125-11A/J-35616-42 (RD)
  • Pins: E, F
  • Terminal/Tray: 15304719/19
  • Core/Insulation Crimp: 2/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: C, G, H
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: Pins C - E/A
  • Core/Insulation Crimp: Pins G, H - 2/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Electronic Brake Control Module (EBCM) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A1 L-BU 830 Wheel Speed Sensor Signal Left Front
A2 YE 873 Left Front Wheel Speed Sensor Low Reference
A3 D-GN 872 Wheel Speed Sensor Signal Right Front
A4 TN 833 Wheel Speed Sensor Low Reference Right Front
A5 TN 884 Wheel Speed Sensor Signal Left Rear
A6 OG 885 Wheel Speed Sensor Low Reference Left Rear
A7 BN 882 Wheel Speed Sensor Signal Right Rear
A8 WH 883 Wheel Speed Sensor Low Reference Right Rear
A9-A14 - - Not Used
A RD/BK 1442 Battery Positive Voltage
B1-B8 - - Not Used
B9 TN 2501 High Speed GMLAN Serial Data (-)
B10 TN 2501 High Speed GMLAN Serial Data (-)
B11 TN/BK 2500 High Speed GMLAN Serial Data (+)
B12 TN/BK 2500 High Speed GMLAN Serial Data (+)
B13 L-BU 2088 Steering Wheel Position Sensor Low Reference
B14 D-GN 2087 Steering Wheel Position Sensor 5-Volt Reference
B RD/BK 1442 Battery Positive Voltage
C1-C5 - - Not Used
C6 L-BU 1764 Steering Wheel Position Signal B
C7 L-GN 1763 Steering Wheel Position Signal A
C8 D-BU 716 Yaw Rate Sensor Signal
C9 L-GN/BK 1338 Lateral Accelerometer Signal
C10 PU 5002 Brake Pressure Modulator Valve
C11-C14 - - Not Used
C PK 1239 Ignition 1 Voltage
D - - Not Used
E BK/WH 251 Ground
F BK/WH 251 Ground
G WH 1294 Variable Effort Steering Solenoid Supply Voltage
H BN 1295 Variable Effort Steering Solenoid Control
