Exhaust Tail Pipe Flow Valve Control Module C1



Exhaust Tail Pipe Flow Valve Control Module C1

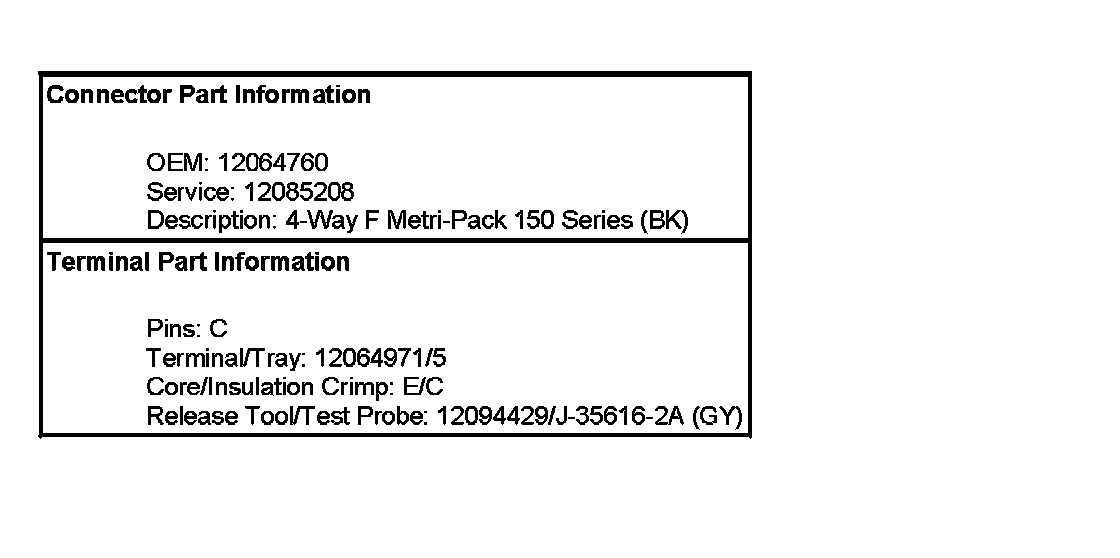

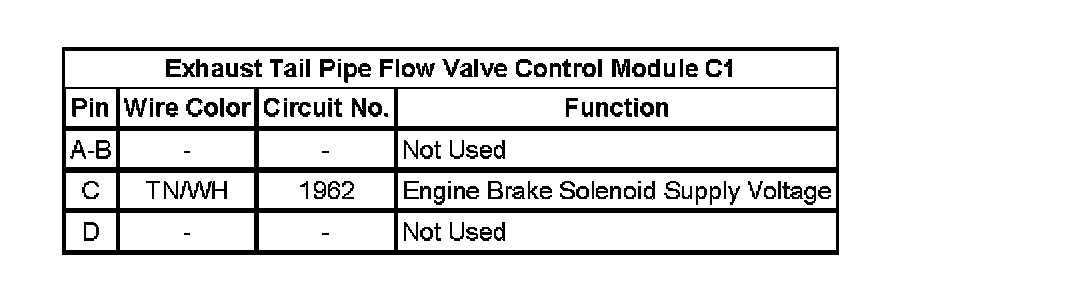

Exhaust Tail Pipe Flow Valve Control Module C1:
