Exhaust Tail Pipe Flow Valve Control Module C2



Exhaust Tail Pipe Flow Valve Control Module C2

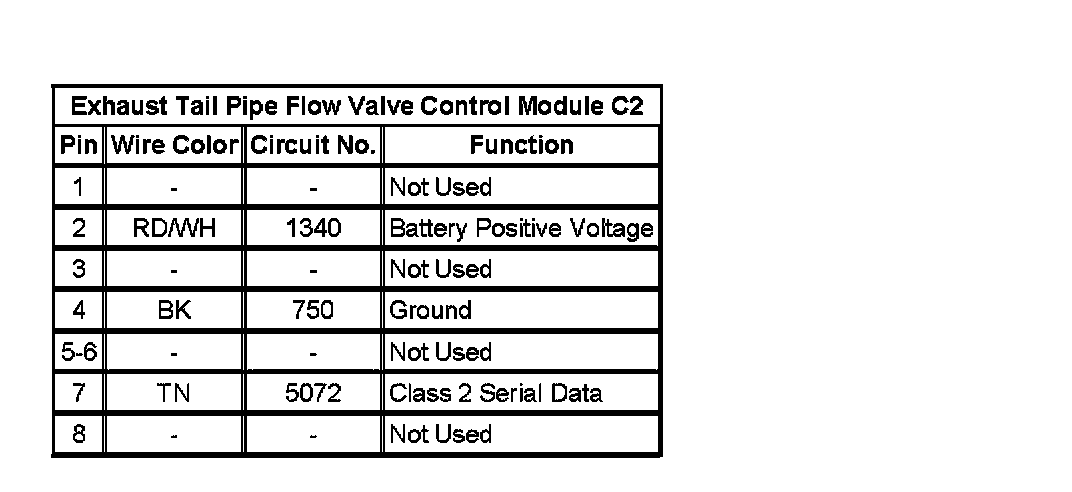

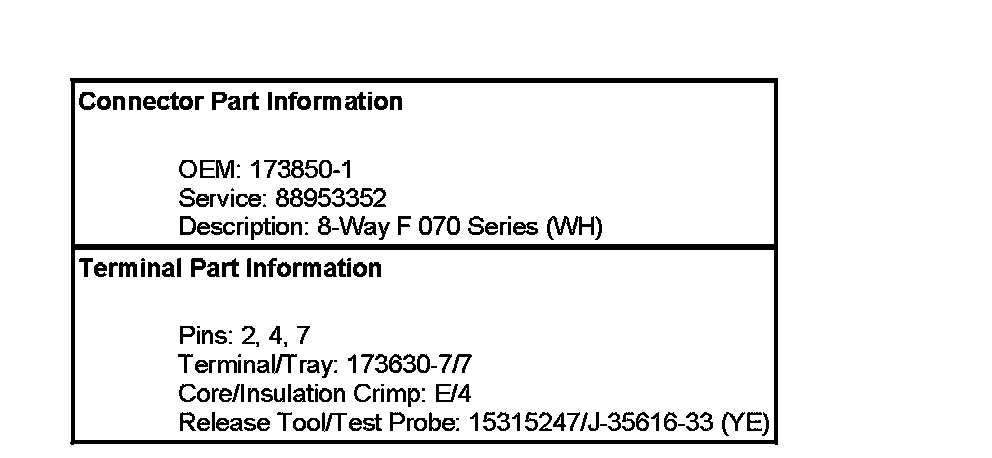

Exhaust Tail Pipe Flow Valve Control Module C2:
