Door Locks



Vehicle Access Connector End Views

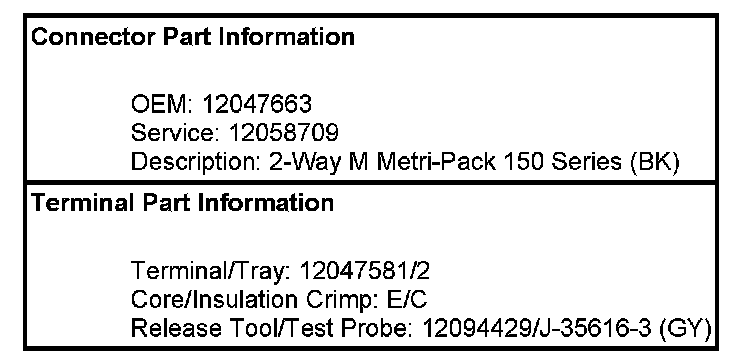

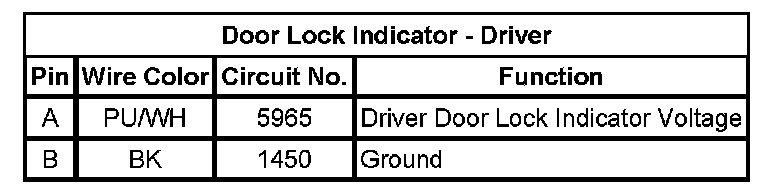

Door Lock Indicator - Driver

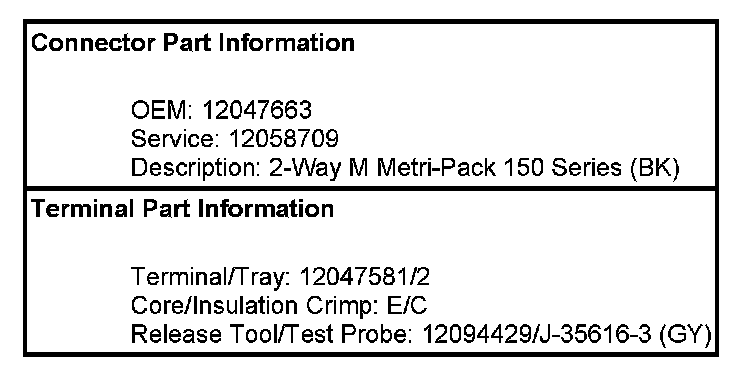

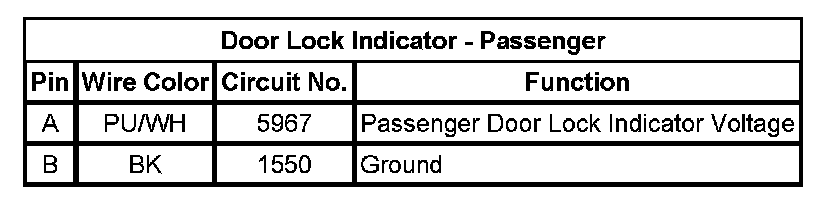

Door Lock Indicator - Passenger
