Seat Temperature Control Module



Heated/Cooled Seat Connector End Views

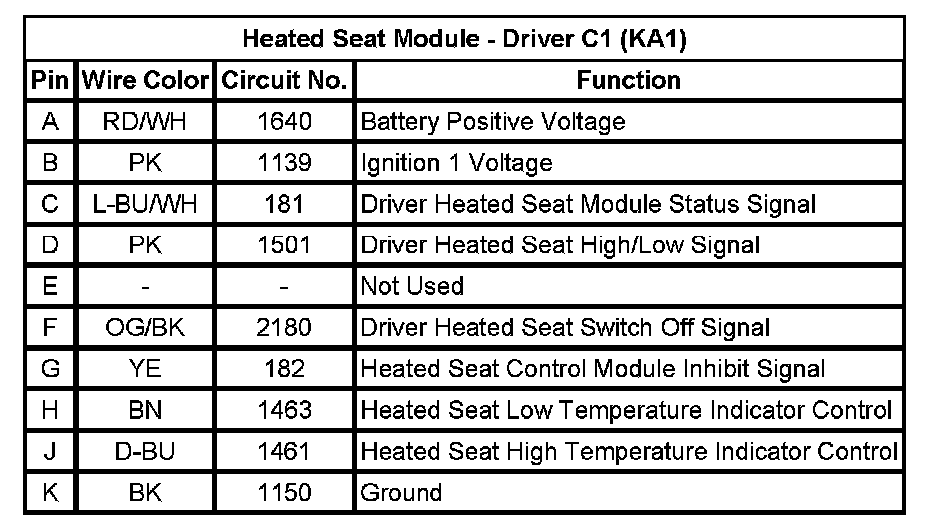

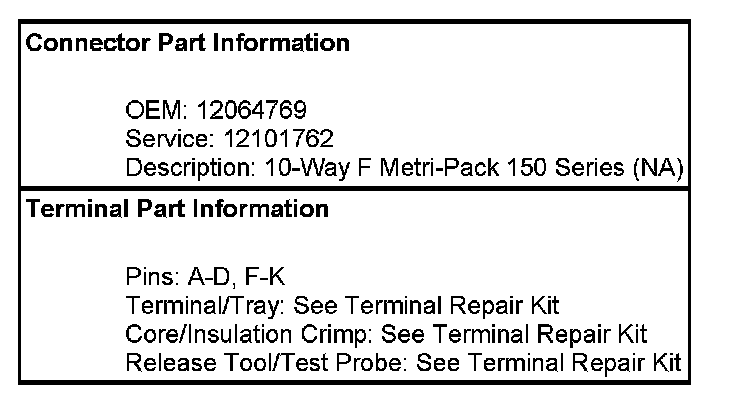

Heated Seat Module - Driver C1 (KA1)

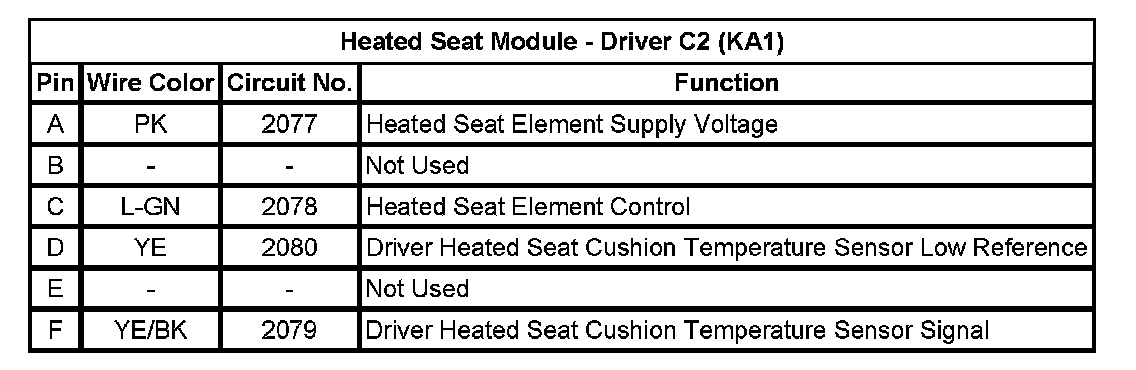

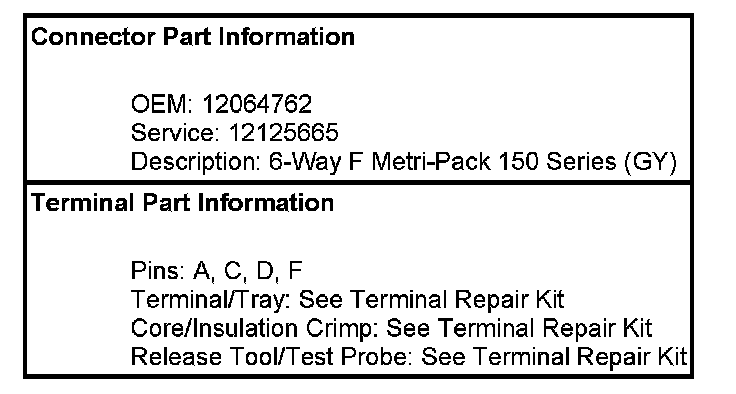

Heated Seat Module - Driver C2 (KA1)

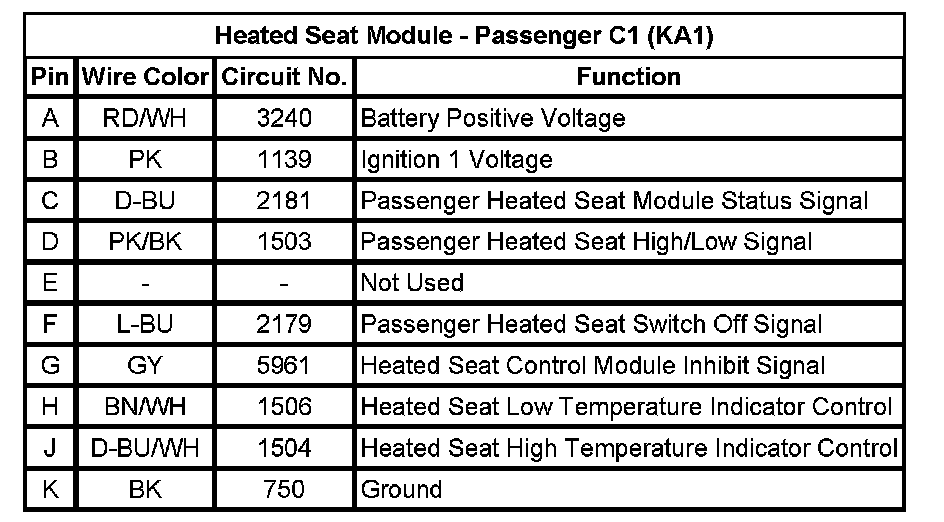

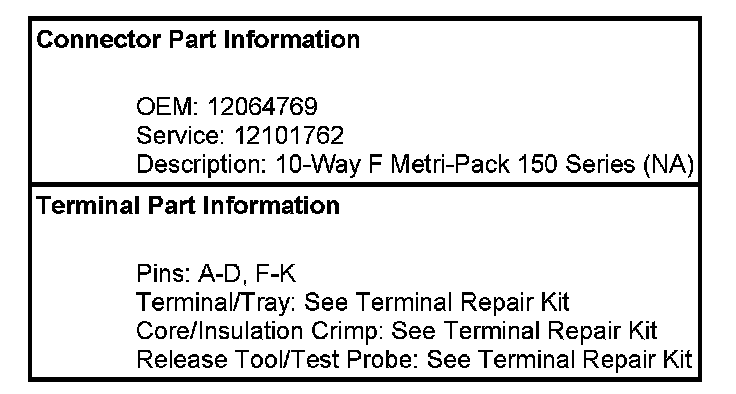

Heated Seat Module - Passenger C1 (KA1)

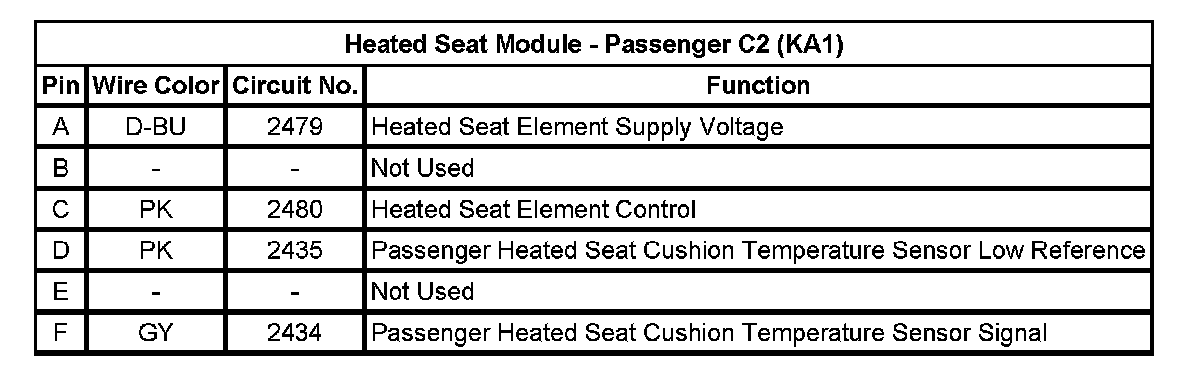

Heated Seat Module - Passenger C2 (KA1)
