Suspension Control Module

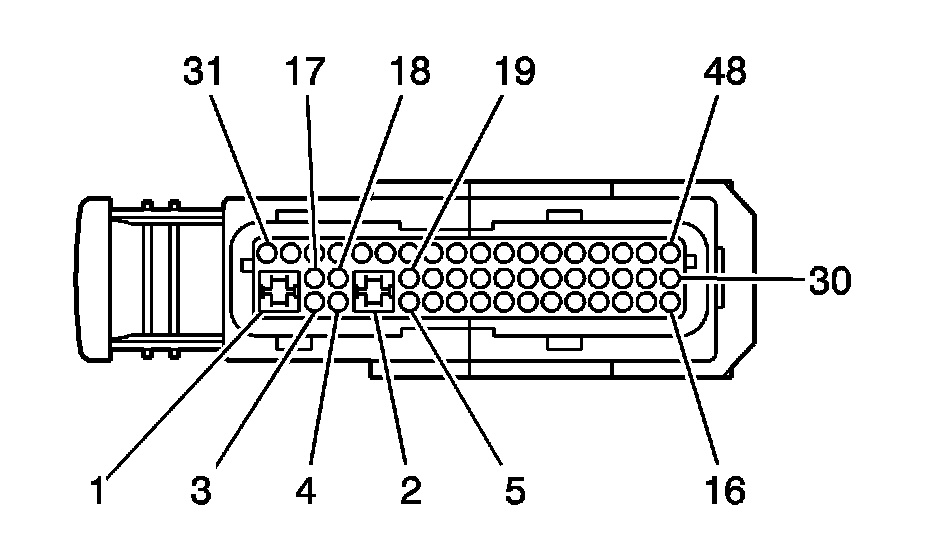

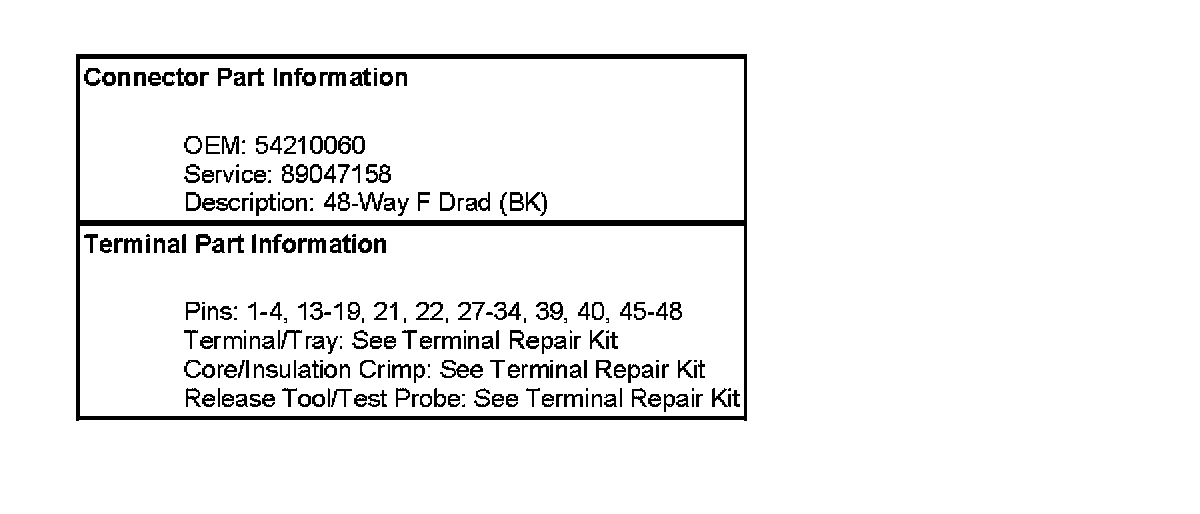

Electronic Suspension Control Connector End Views

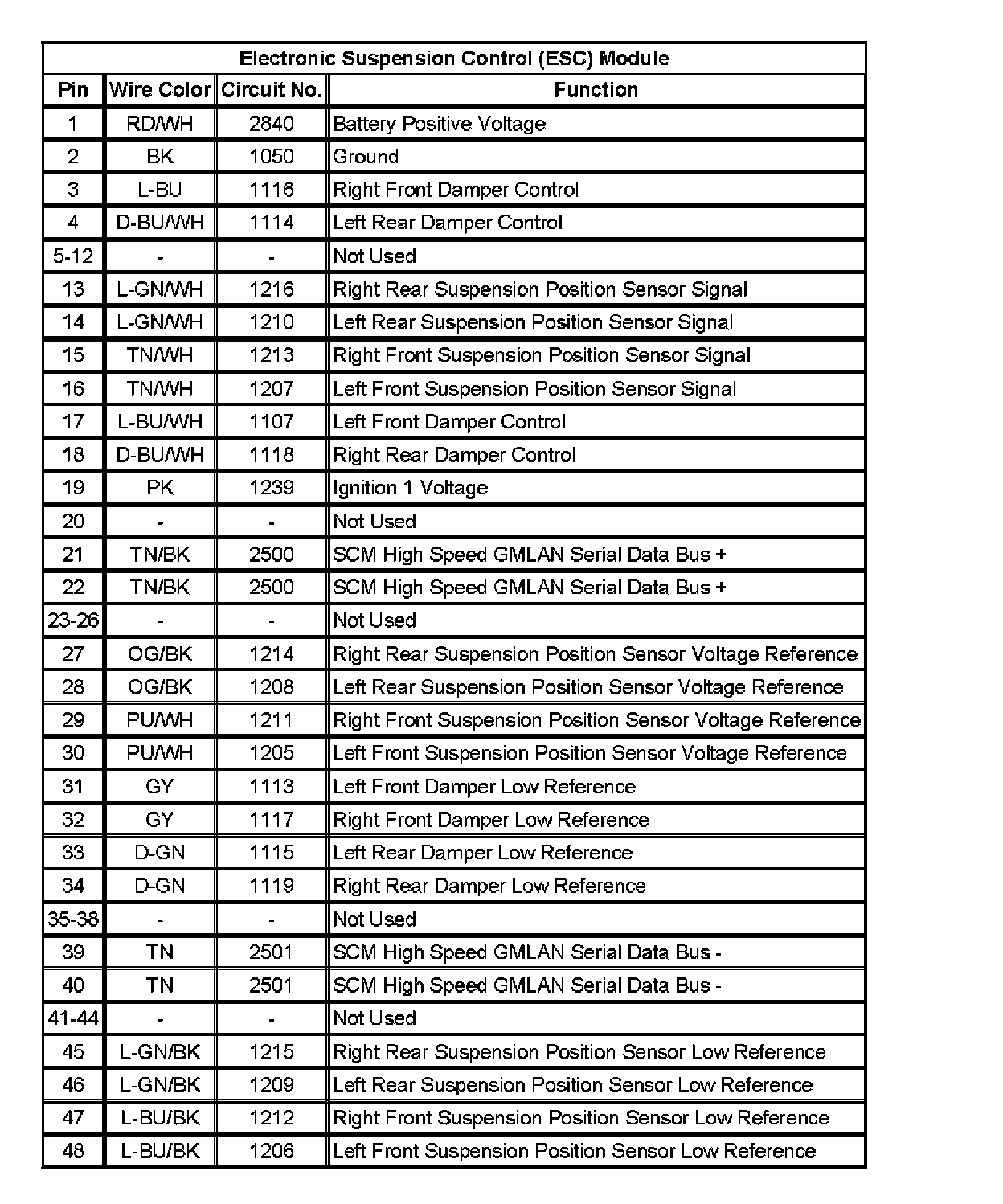

Electronic Suspension Control (ESC) Module:
