Coolant Temperature Sensor/Switch (For Computer): Locations

Engine Controls Component Views

Engine Components




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Throttle Body Assembly
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Knock Sensor (KS) 2
5 - Engine Oil Level Switch
6 - Crankcase Position (CKP) Sensor
7 - Engine Oil Pressure (EOP) Sensor
8 - Knock Sensor (KS) 1
9 - Camshaft Position (CMP) Sensor
10 - Engine Coolant Temperature (ECT) Sensor

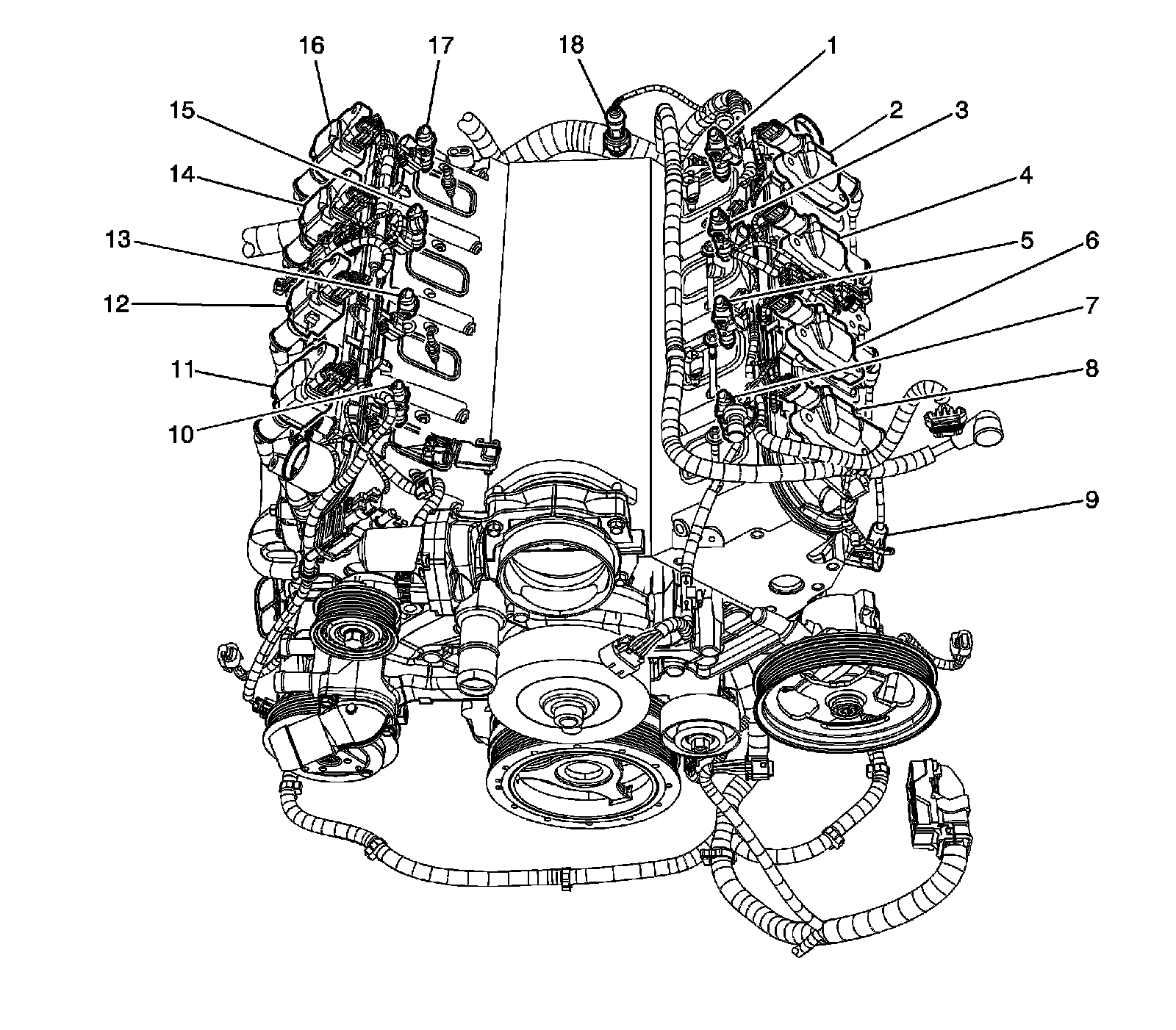

Engine Components




1 - Fuel Injector 7
2 - Ignition Coil 7
3 - Fuel Injector 5
4 - Ignition Coil 5
5 - Fuel Injector 3
6 - Ignition Coil 3
7 - Fuel Injector 1
8 - Ignition Coil 1
9 - Engine Coolant Temperature (ECT) Sensor
10 - Fuel Injector 2
11 - Ignition Coil 2
12 - Ignition Coil 4
13 - Fuel Injector 4
14 - Ignition Coil 6
15 - Fuel Injector 6
16 - Ignition Coil 8
17 - Fuel Injector 8
18 - Engine Oil Pressure (EOP) Sensor
