Fuel Level Sensor: Locations

Engine Controls Component Views

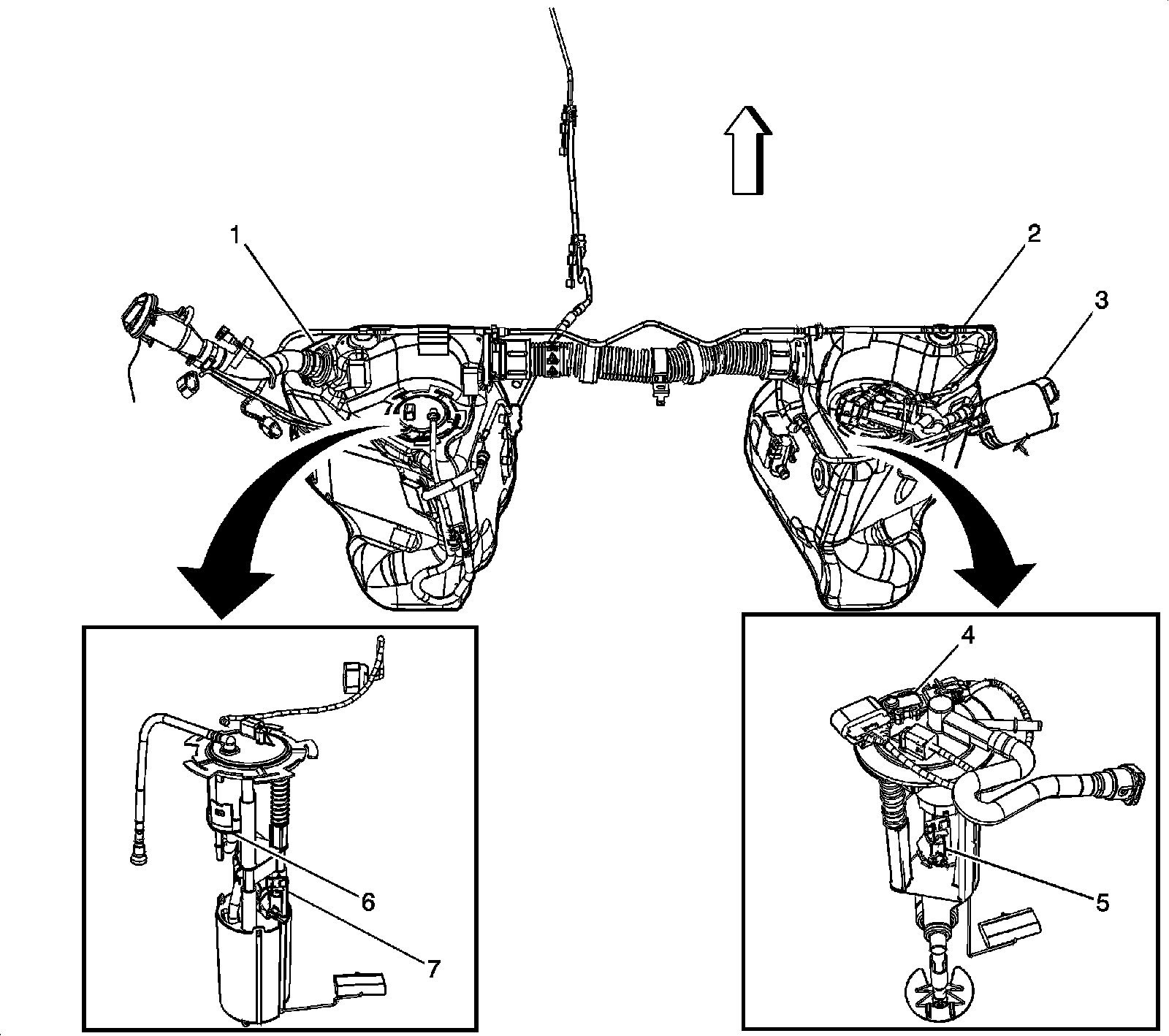

Fuel Tank




1 - Fuel Tank - Left
2 - Fuel Tank - Right
3 - Evaporative (EVAP) Canister Vent Solenoid
4 - Fuel Tank Pressure (FTP) Sensor
5 - Fuel Level Sensor - Right
6 - Fuel Pump and Sender Assembly
7 - Fuel Level Sensor - Left
