Engine Control Module: Locations

Engine Controls Component Views

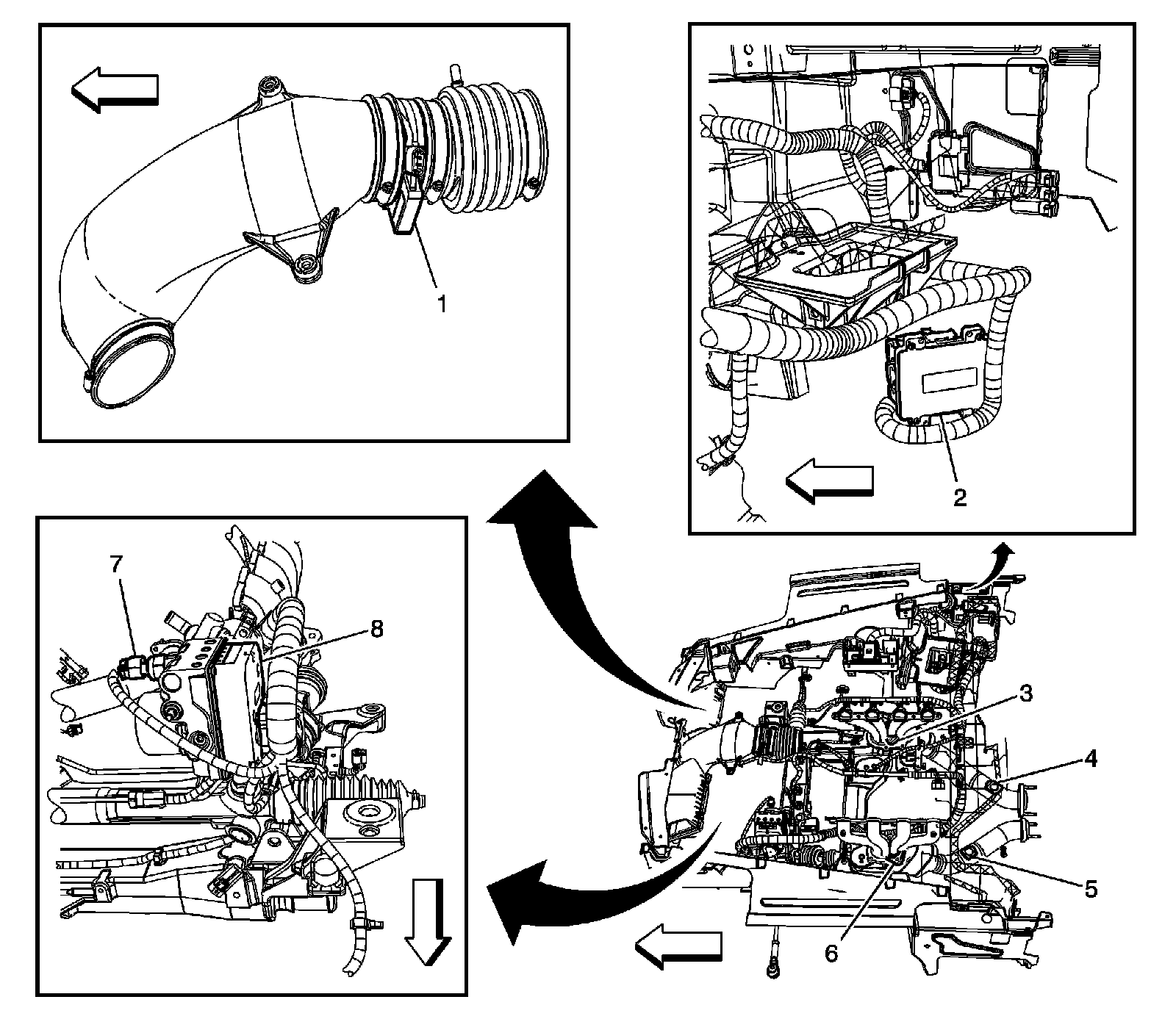

Engine Compartment Components - 6.0L (Engine Harness)




1 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
2 - Engine Control Module (ECM)
3 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
4 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
5 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
6 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
7 - Brake Pressure Modulator Valve (BPMV)
8 - Electronic Brake Control Module (EBCM)
