Axle Shaft Assembly

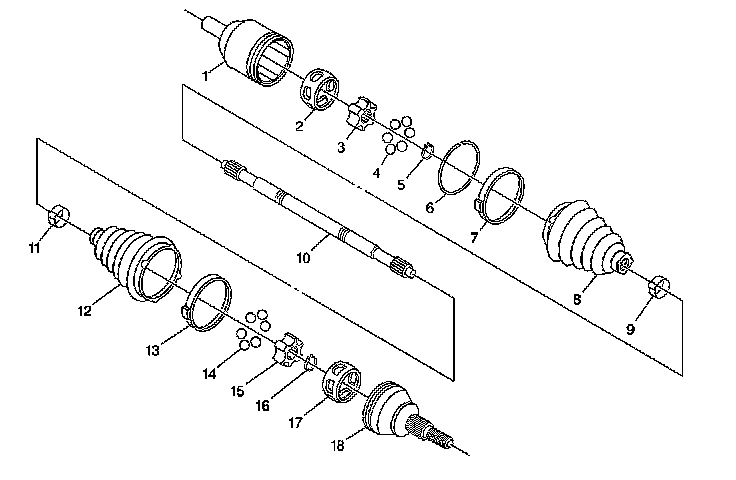

Wheel Drive Shafts Disassembled Views

Wheel Drive Shafts Disassembled Views:

1 - Inner Joint Outer Race
2 - Inner Joint Cage
3 - Inner Joint Inner Race
4 - Ball Bearings
5 - Inner Joint Inner Race Retaining Snap Ring
6 - Inner Joint Outer Race Retaining Ring
7 - Inner Joint Large Seal Clamp
8 - Inner Joint Seal
9 - Inner Joint Small Seal Clamp
10 - Axle Shaft
11 - Outer Joint Small Seal Clamp
12 - Outer Joint Seal
13 - Outer Joint Large Seal Clamp
14 - Ball Bearings
15 - Outer Joint Inner Race
16 - Outer Joint Retaining Ring
