Internal Components

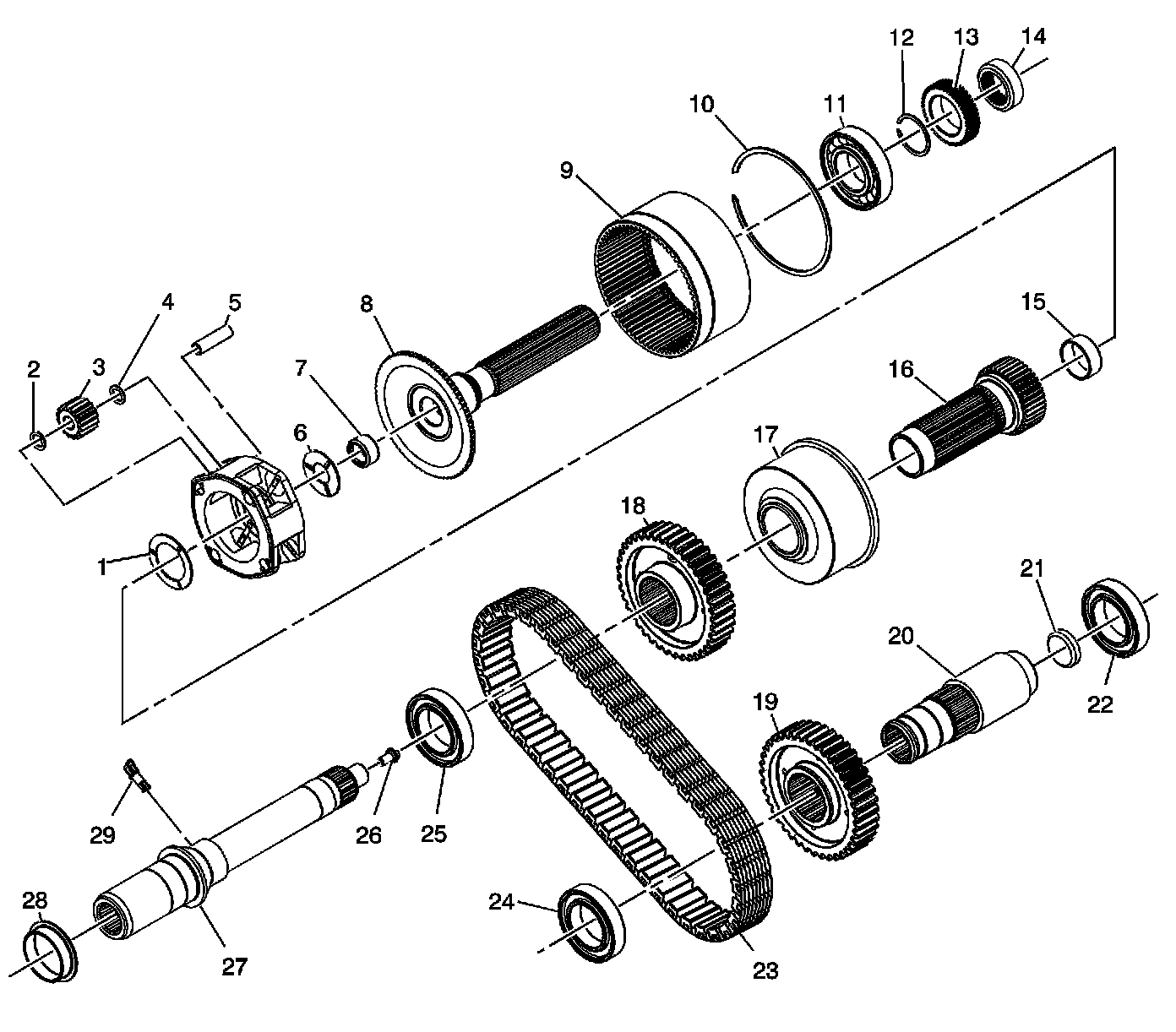

Transfer Case Disassembled View

Internal Components

Internal Components:

1 - Planetary Carrier Front Thrust Washer
2 - Planetary Pinion Gear Thrust Washer
3 - Planetary Pinion Gear
4 - Planetary Pinion Gear Thrust Washer
5 - Planetary Pinion Gear Shaft
6 - Planetary Carrier Rear Thrust Washer
7 - Input Shaft Rear Support Bearing
8 - Rear Output Shaft
9 - Annulus Gear
10 - Annulus Gear Retaining Ring
11 - Rear Output Shaft Bearing
12 - Rear Output Shaft Bearing Retaining Ring
13 - Speed Reluctor Wheel
14 - Rear Output Shaft Shipping Seal
15 - Sun Gear Bushing
16 - Sun Gear
17 - Viscous Coupling
18 - Drive Sprocket
19 - Driven Sprocket
20 - Front Output Shaft
21 - Front Output Shaft Cup Plug
22 - Front Output Shaft Rear Bearing
23 - Drive Chain
24 - Front Output Shaft Front Bearing
25 - Sun Gear Bearing
26 - Oil Restrictor
27 - Input Shaft
28 - Input Shaft Bushing
29 - Oil Scoop
