Engine General Specifications & Service Limits

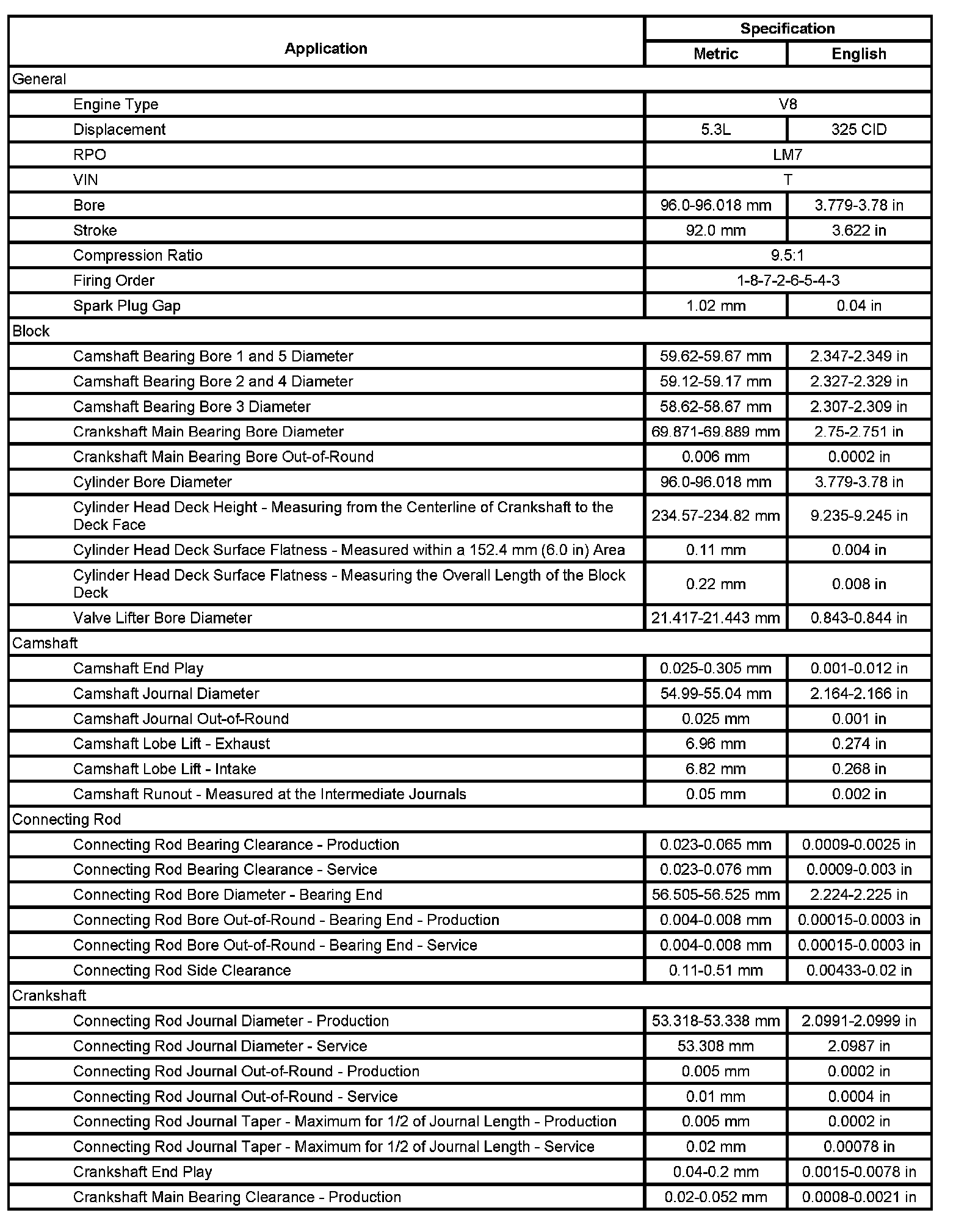

Engine Mechanical Specifications (LM7 VIN T)

Engine Mechanical Specifications (LM7 VIN T):




Engine Mechanical Specifications (LM7 VIN T):




Engine Mechanical Specifications (LM7 VIN T):
