Connector Views

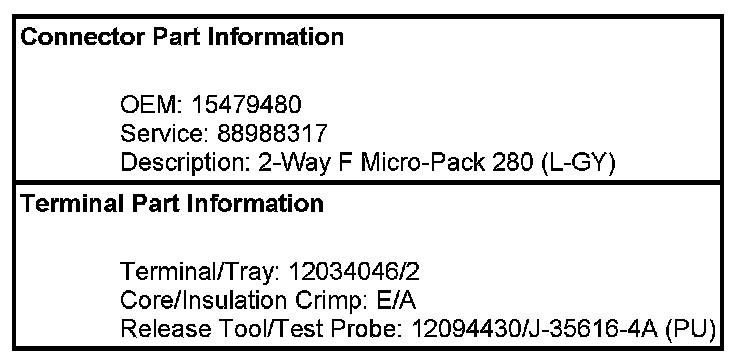

Cruise Control Connector End Views

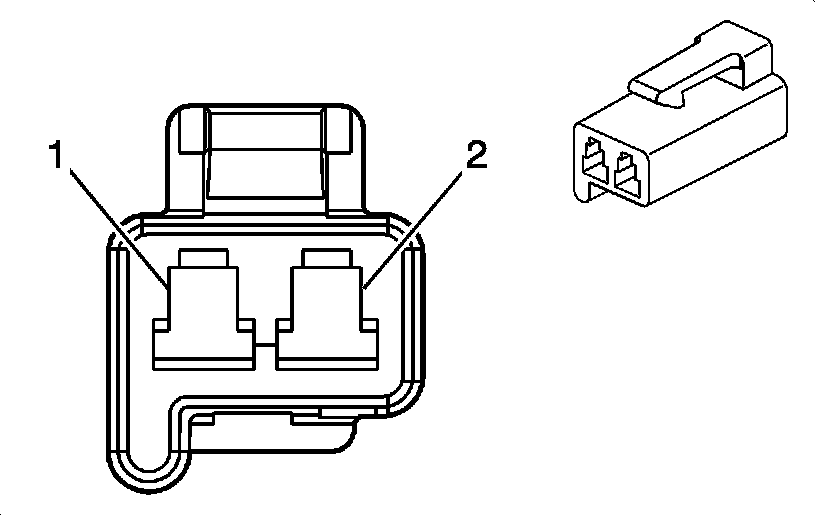

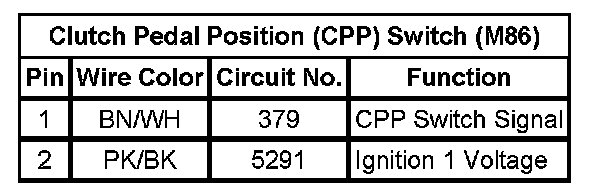

Clutch Pedal Position (CPP) Switch (M86)

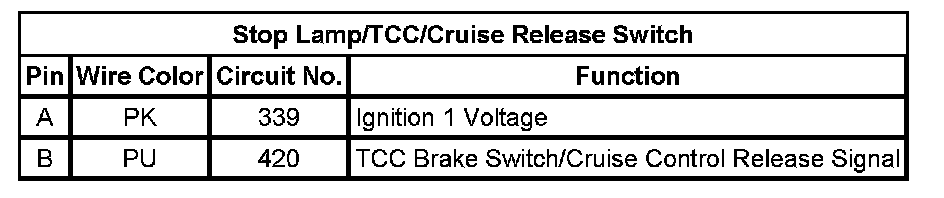

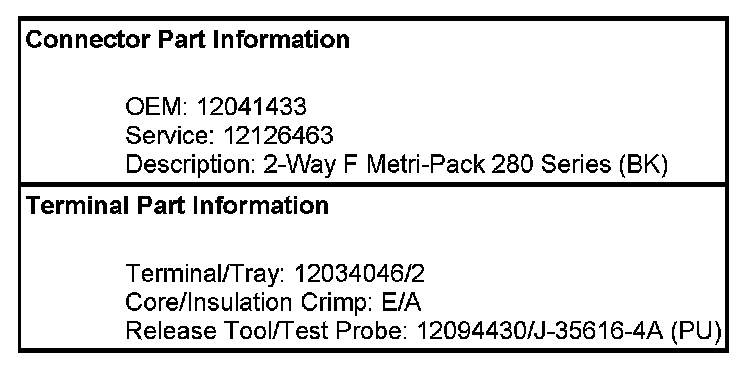

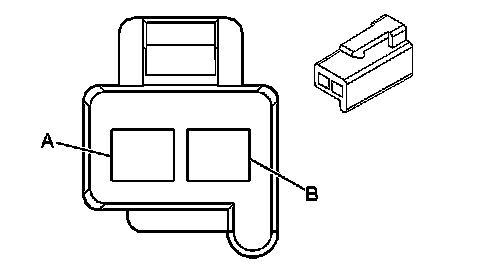

Stop Lamp/TCC/Cruise Release Switch

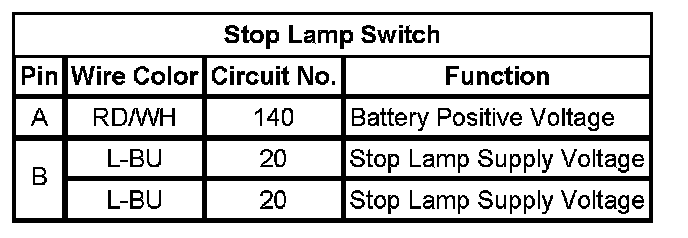

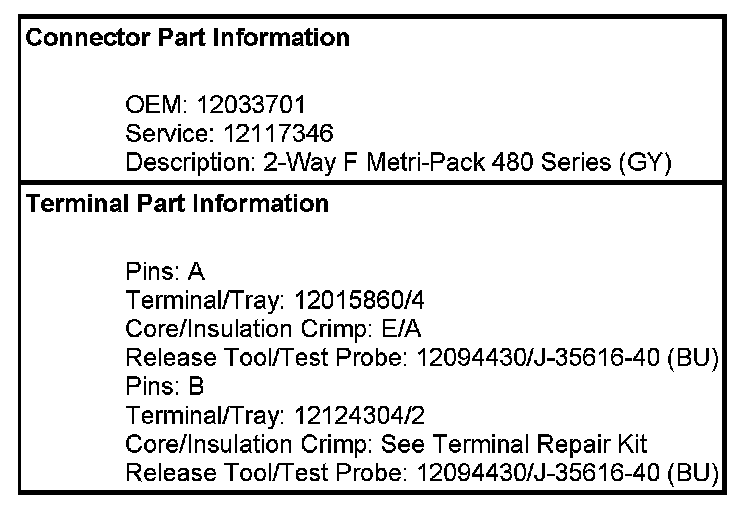

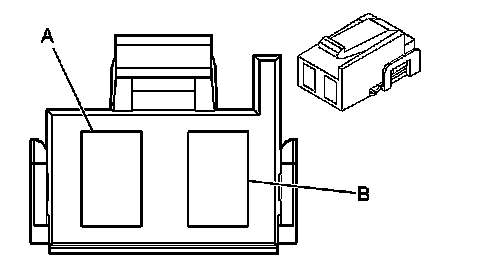

Stop Lamp Switch
