Body Control Module (BCM) Label



Body Control Module (BCM) Label:

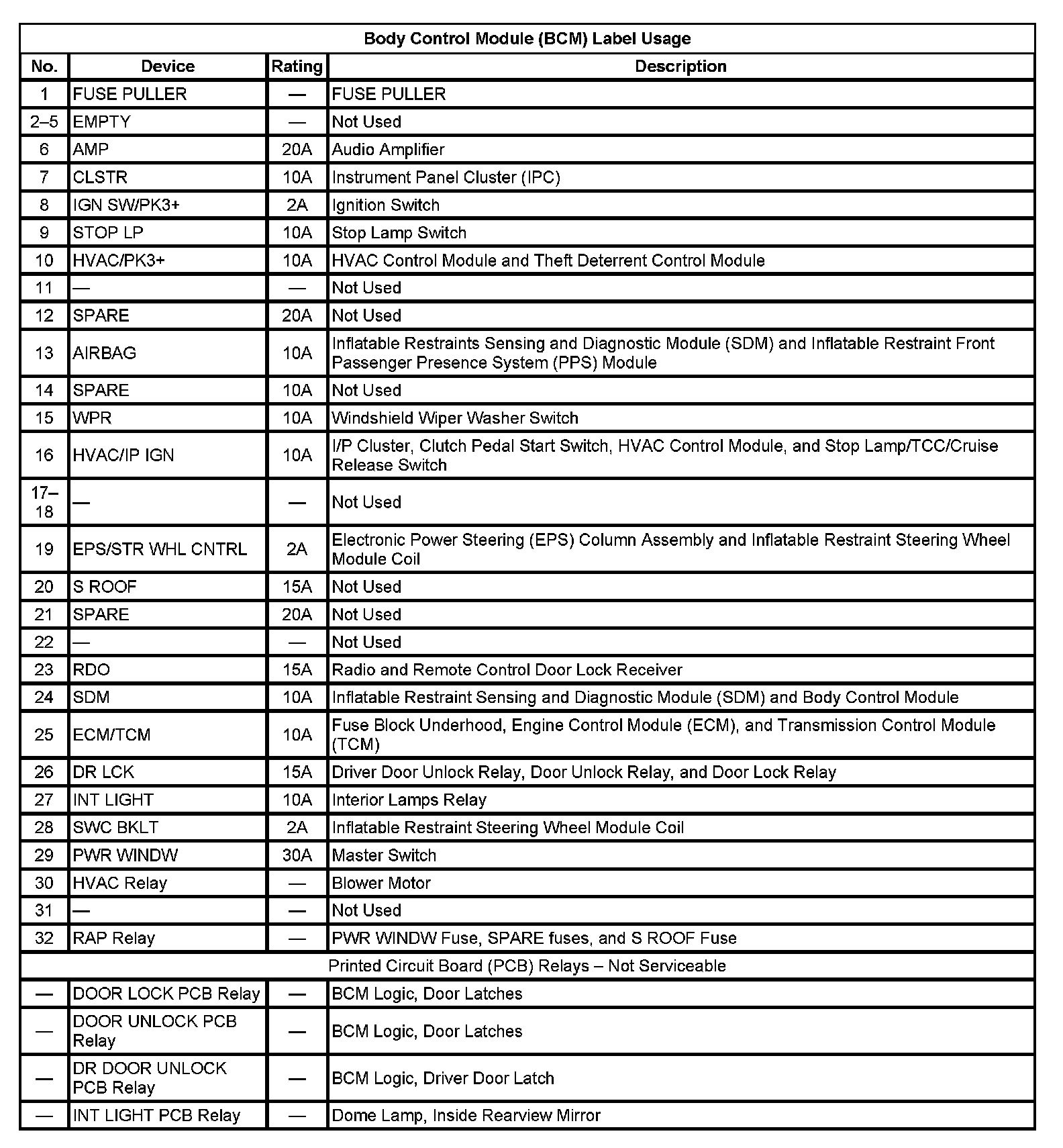

Body Control Module (BCM) Label Usage:
