Vehicle Zoning Strategy

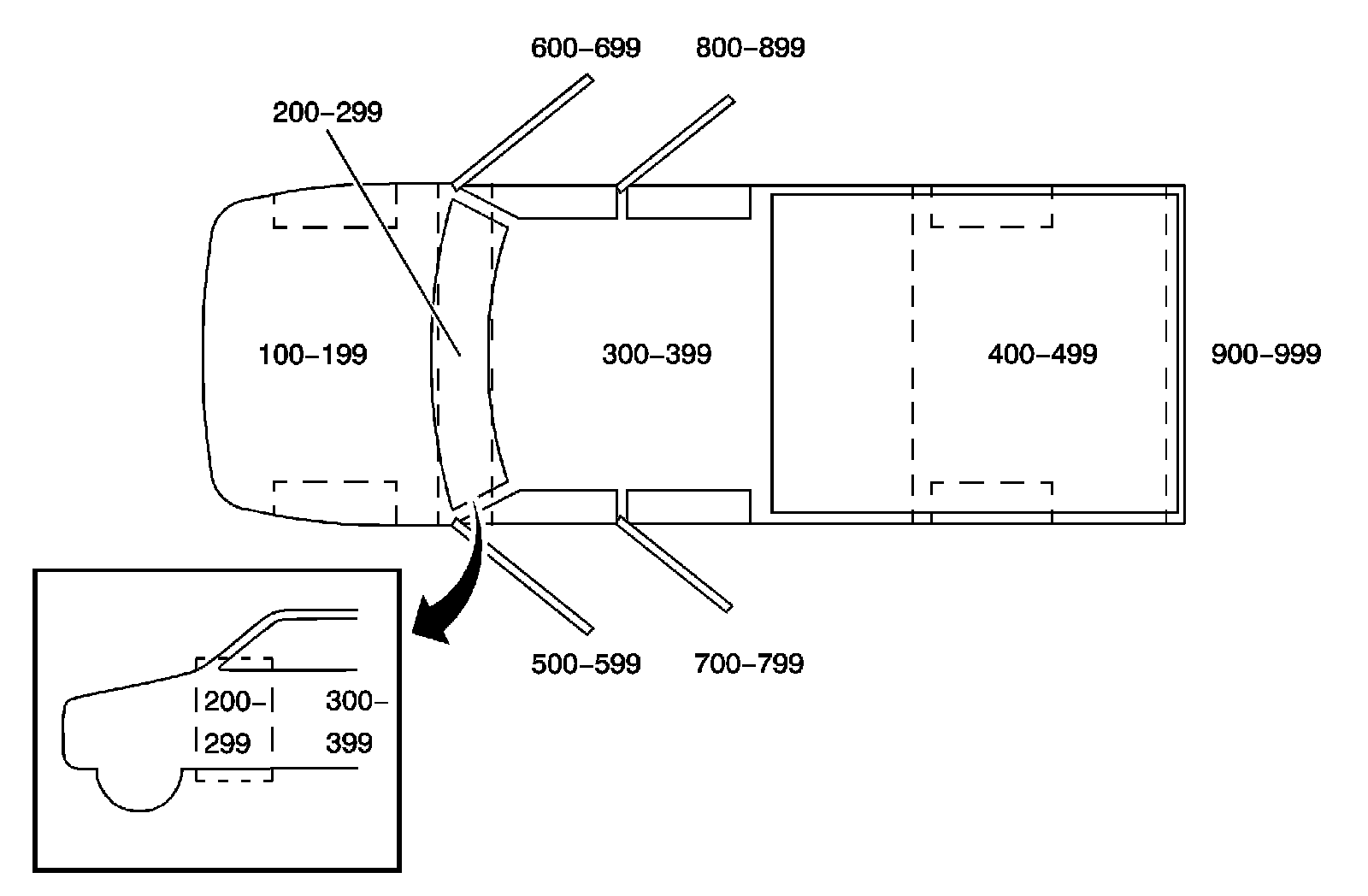

TRUCK ZONING

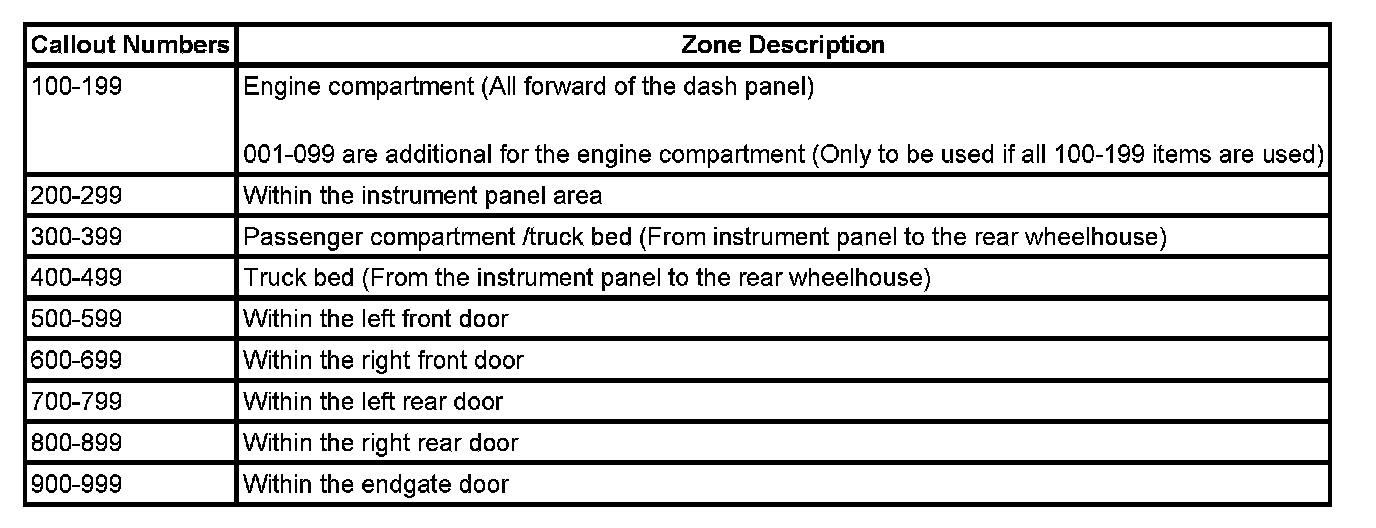

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that corresponds to where they are located in the vehicle. The table explains the numbering system.
