Removal Procedure

WARNING: This page is about a different car, the 2011 GMC Canyon and 2011 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

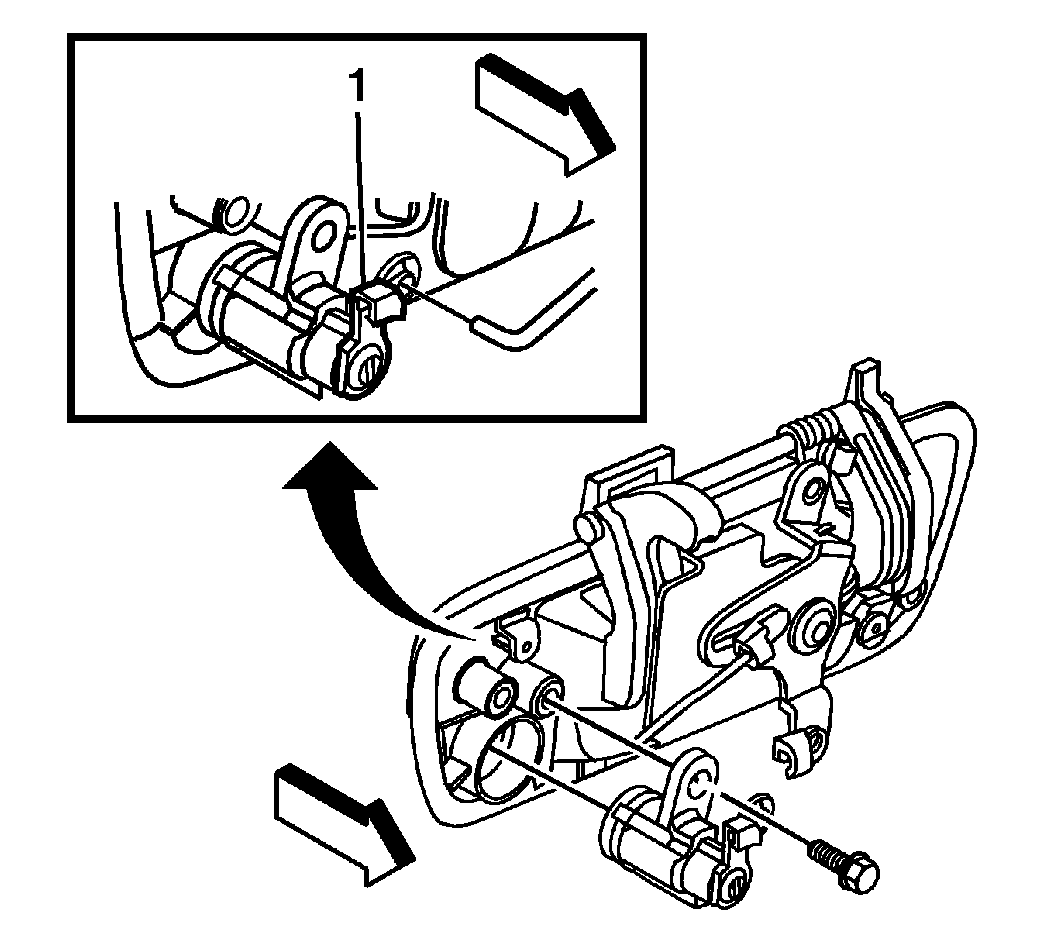

    Fig 1: View Of Endgate Lock Cylinder
    GM1245379Courtesy of GENERAL MOTORS CORP.
  1. Remove the endgate cover. Refer to Pickup Box Endgate Latch Cover Replacement .
  2. Disconnect the clip (1) retaining the lock rod to the lock cylinder.
  3. Remove the lock rod from the retaining clip (1).
  4. Remove the bolt retaining the lock cylinder to the endgate handle.
  5. Remove the lock cylinder from the endgate handle.
