Secondary/Configurable Control Connector End Views



Secondary/Configurable Control Connector End Views

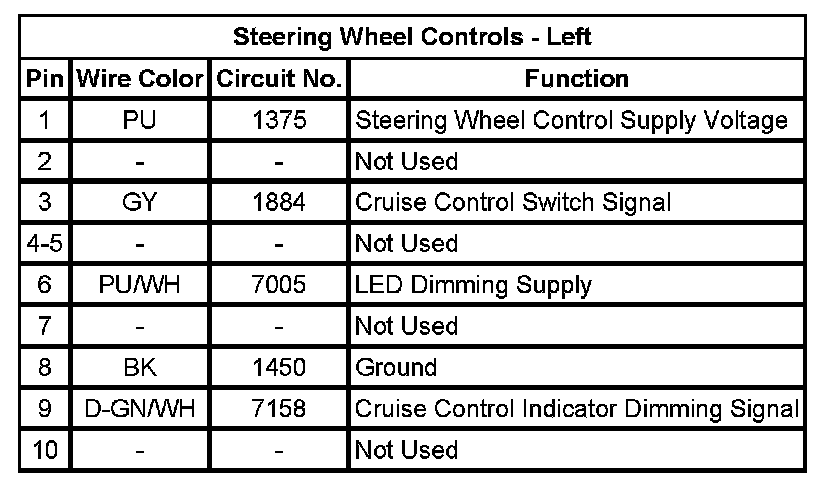

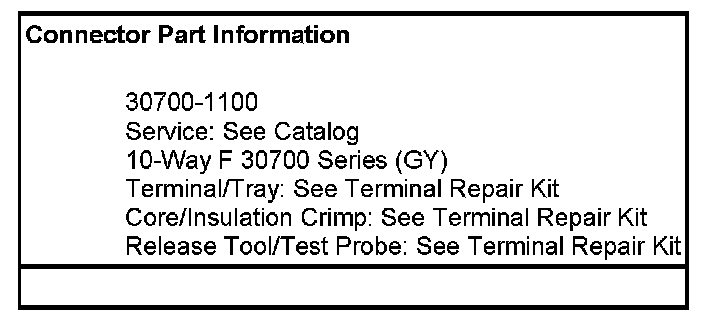

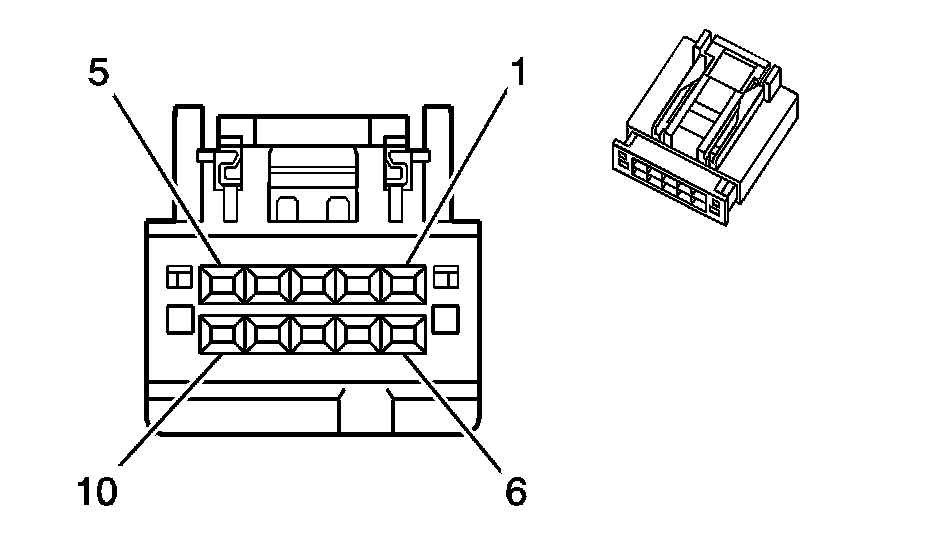

Steering Wheel Controls - Left

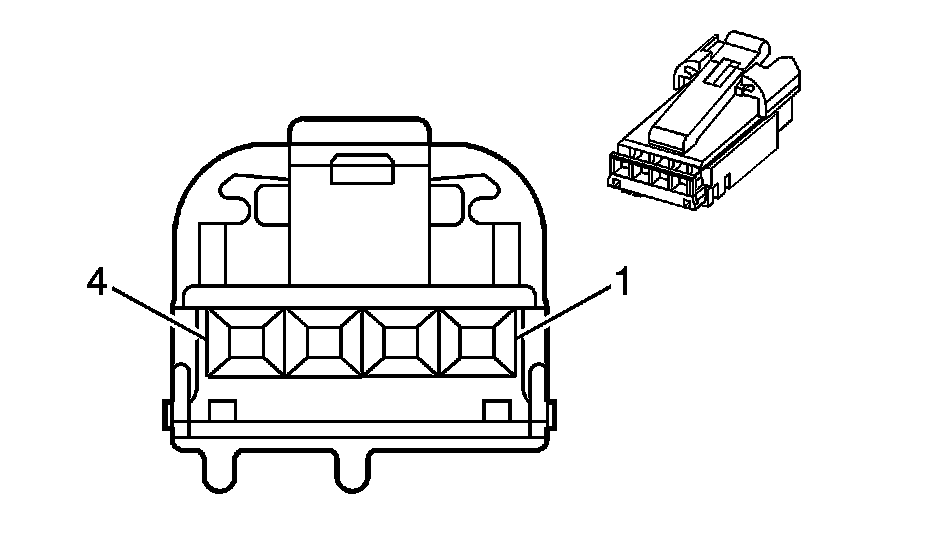

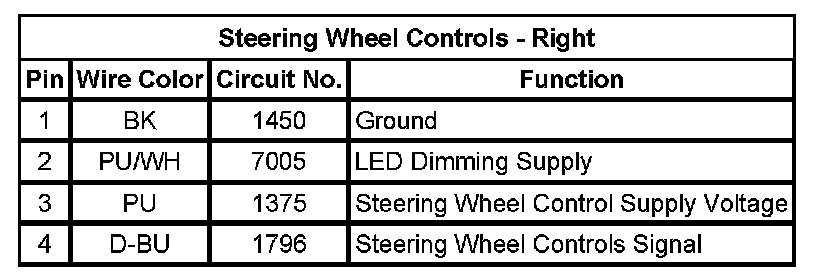

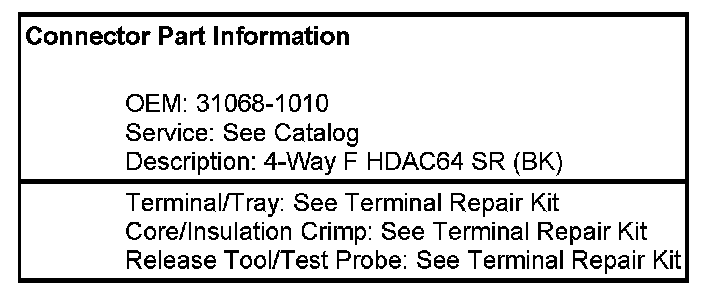

Steering Wheel Controls - Right
