I/P Fuse Block



Electrical Center Identification Views

Fuse Block - I/P Top View

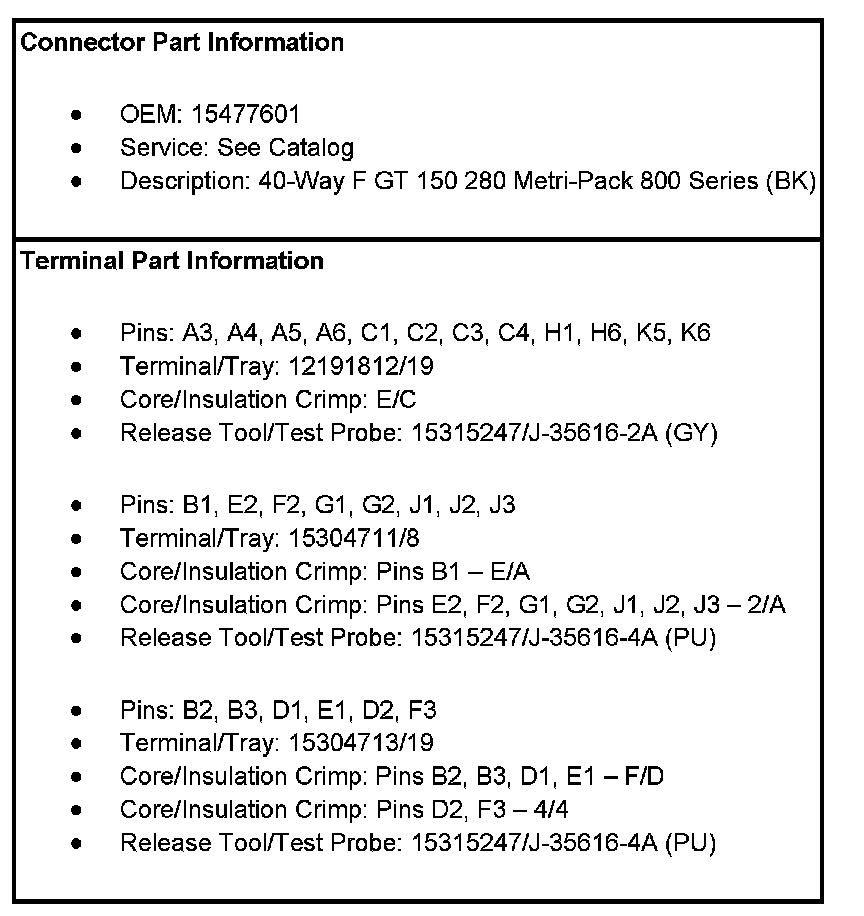

Fuse Block - I/P C1

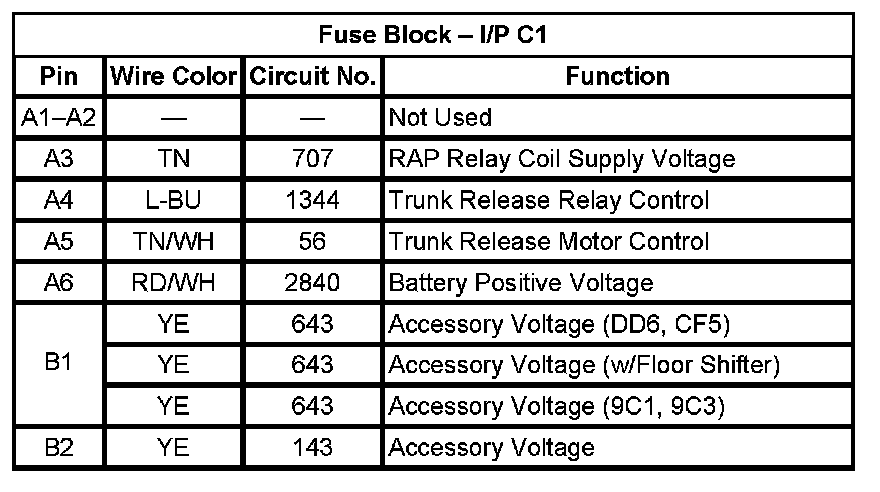

Fuse Block - I/P C1 (Pin A1-A2 To B2):

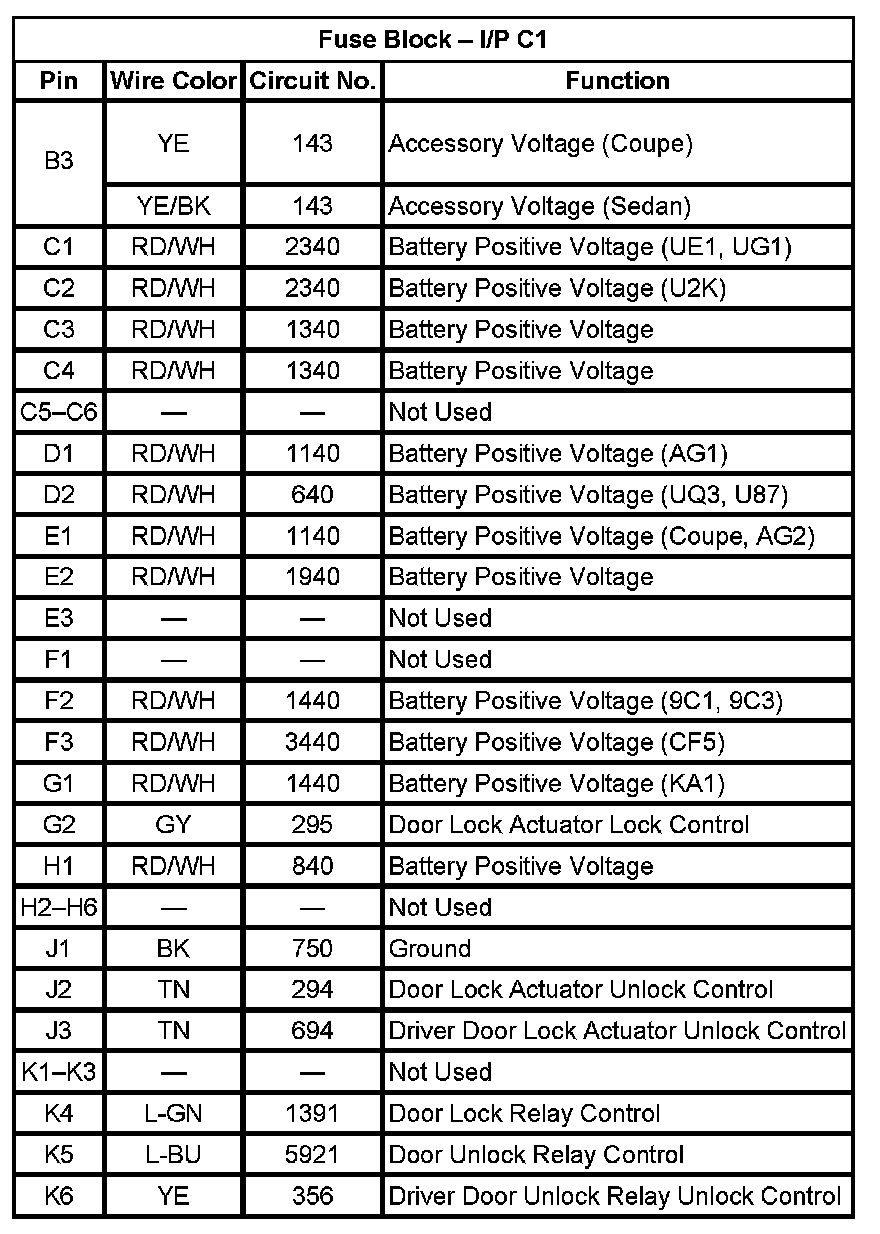

Fuse Block - I/P C1 (Pin B3 To Pin K6):

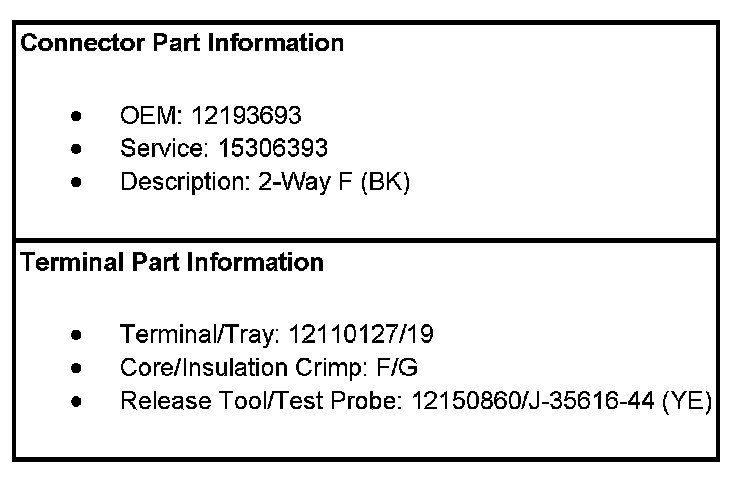

Fuse Block - I/P C2

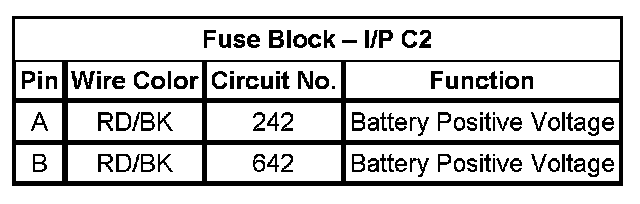

Fuse Block - I/P C2 (Pin A To B):
