Remote Control Door Lock Receiver Replacement (Sedan)

Remote Control Door Lock Receiver Replacement (Sedan)

Removal Procedure

1. Open the rear compartment lid.

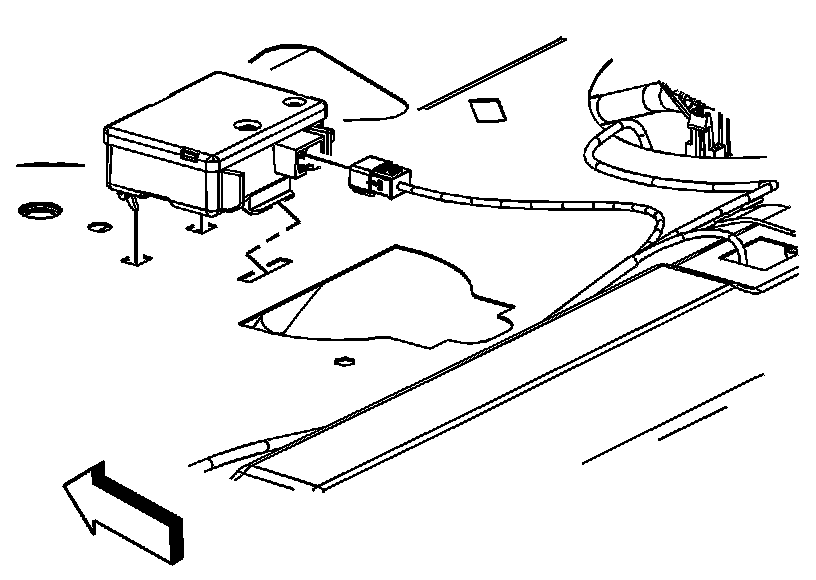

2. Working through the access hole, disconnect the electrical connectors from the receiver.




3. Working through the access hole, remove the receiver from the vehicle.

Installation Procedure




1. Install the receiver to the vehicle.
2. Connect the electrical connectors to the receiver.
3. The transmitter will need to be programmed after replacement. Refer to Control Module References for programming and setup information.
