Combination Switch



Lighting Systems Connector End Views

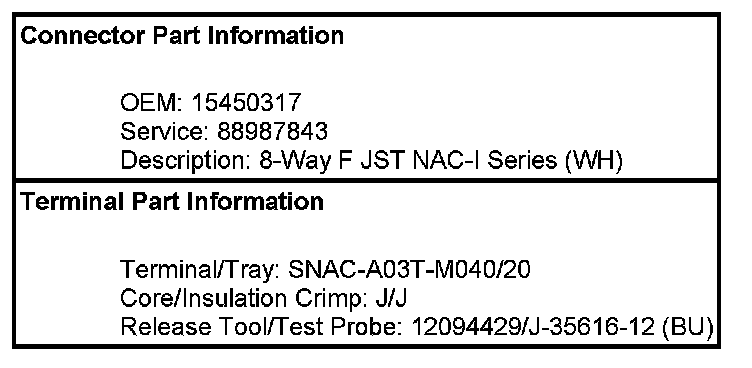

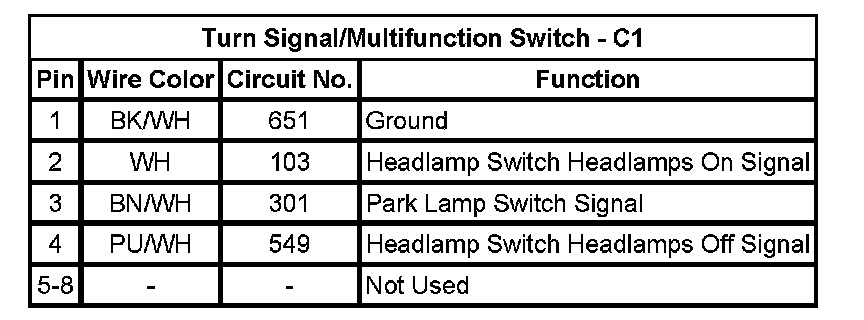

Turn Signal/Multifunction Switch - C1

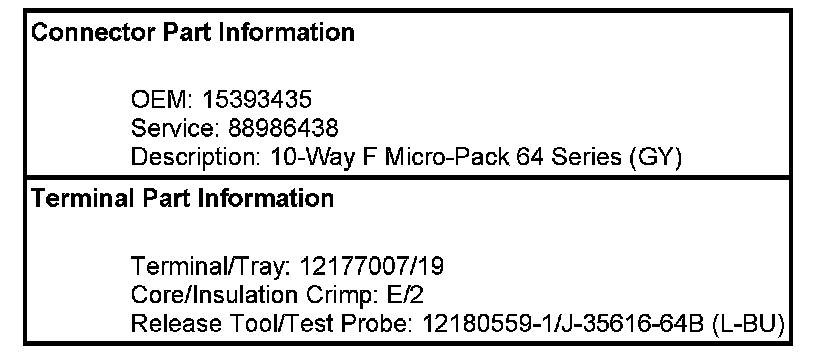

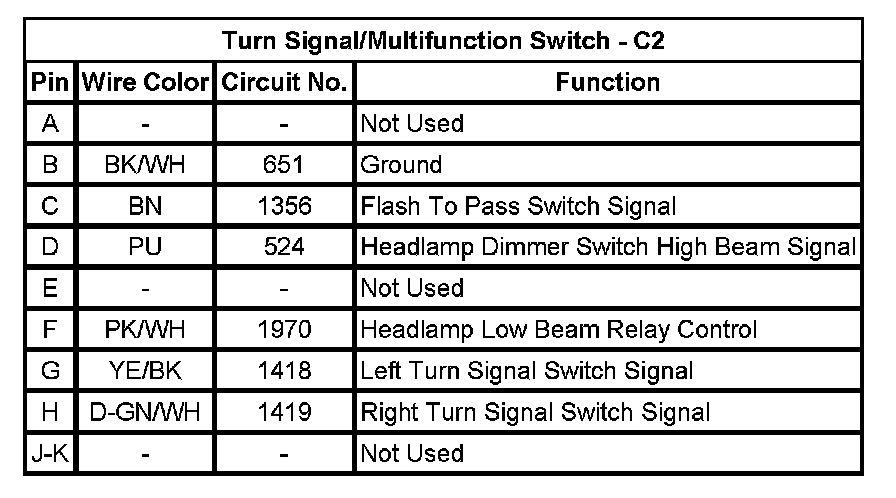

Turn Signal/Multifunction Switch - C2
