Engine Control Module

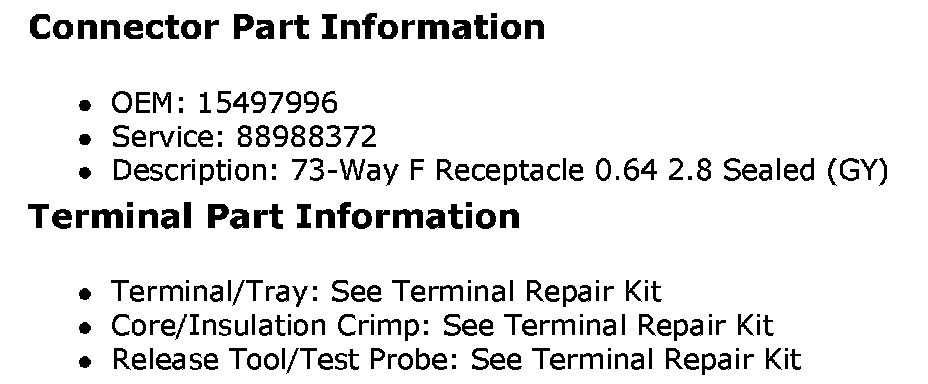

Engine Control Module Connector End Views

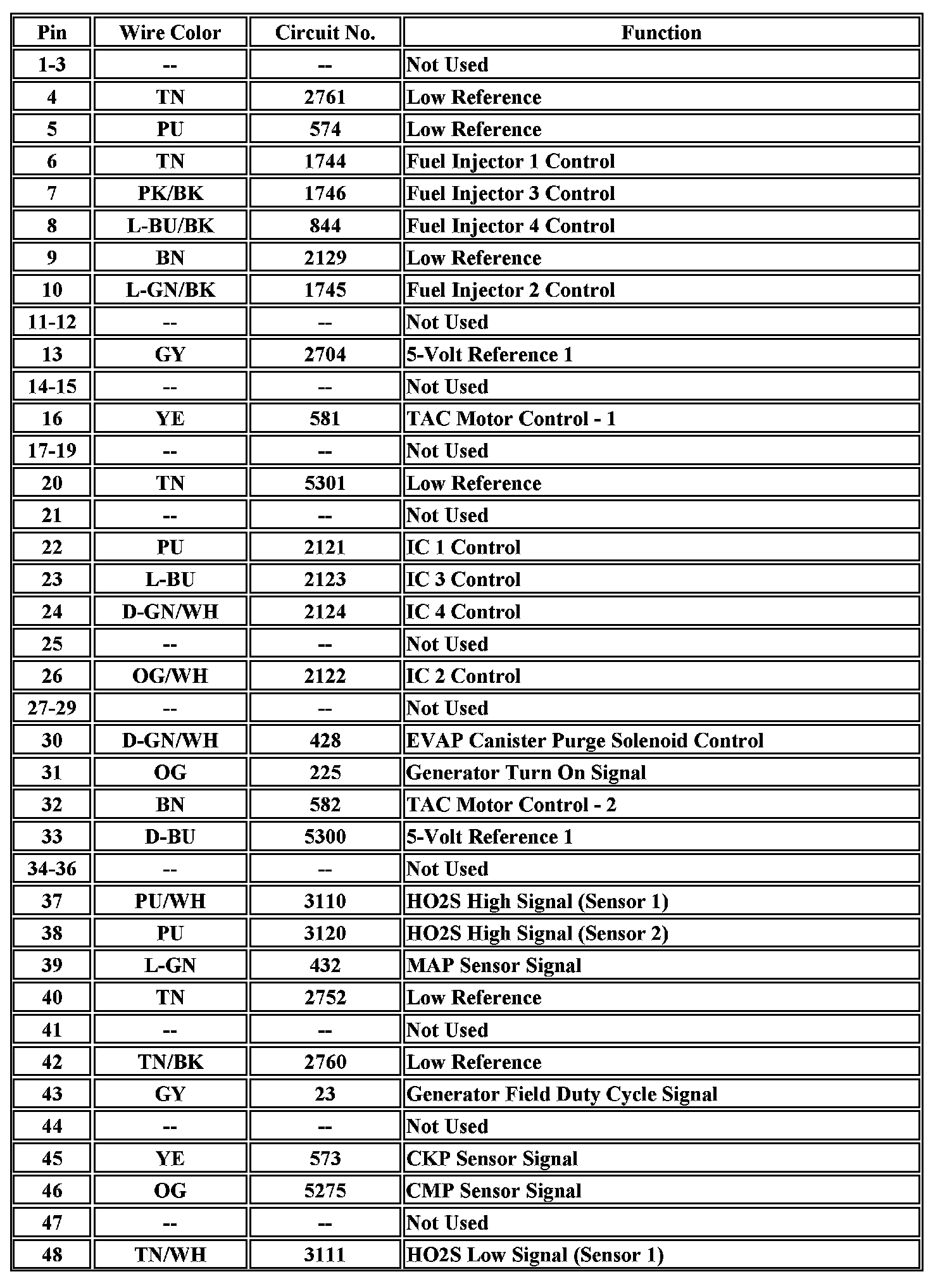

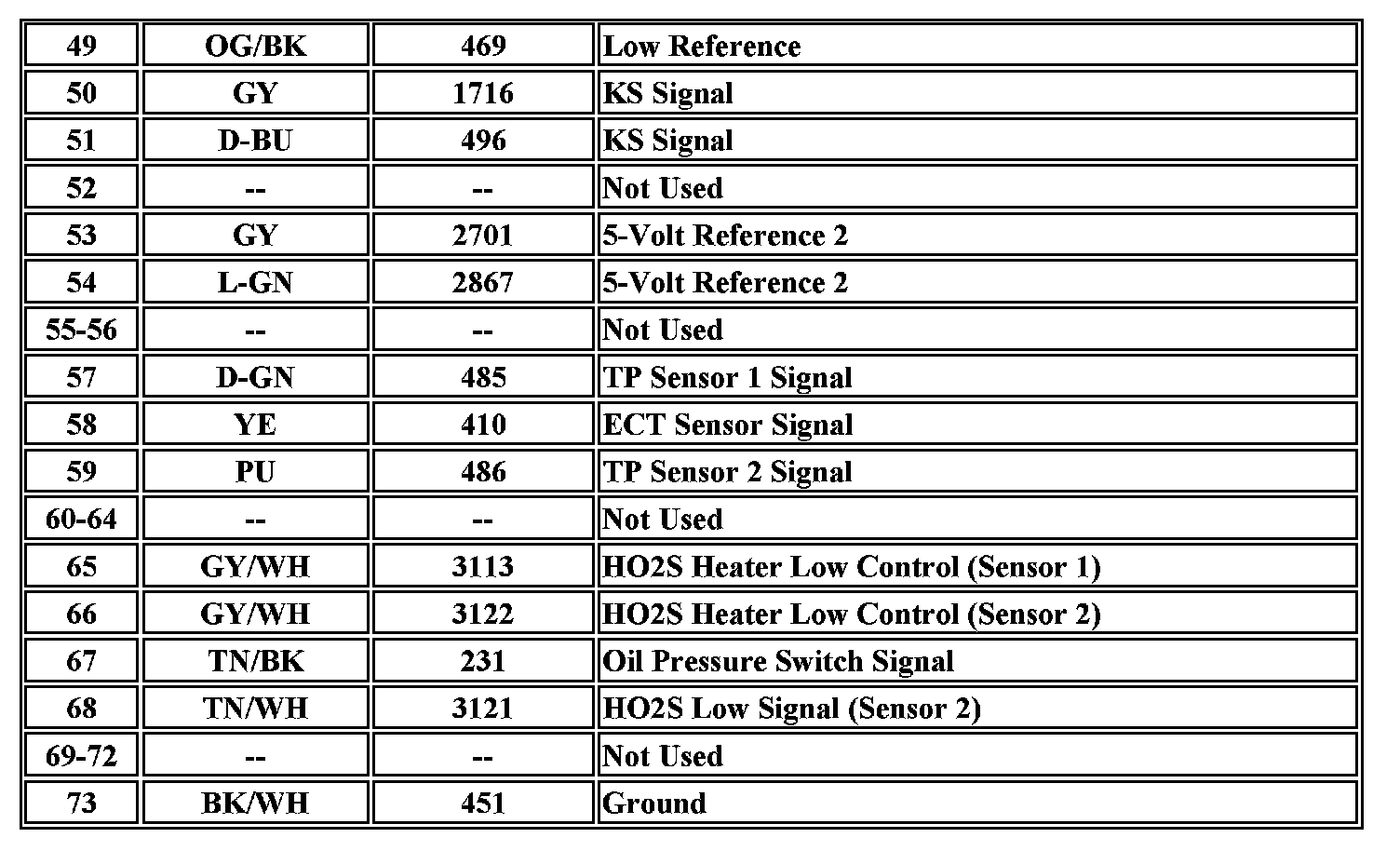

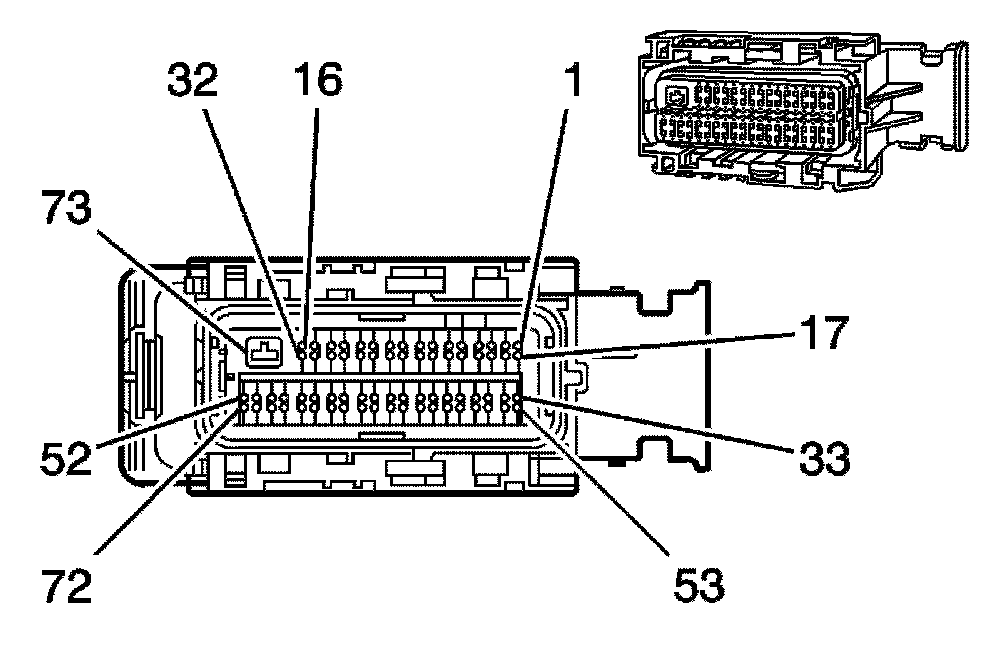

Engine Control Module (ECM) C1

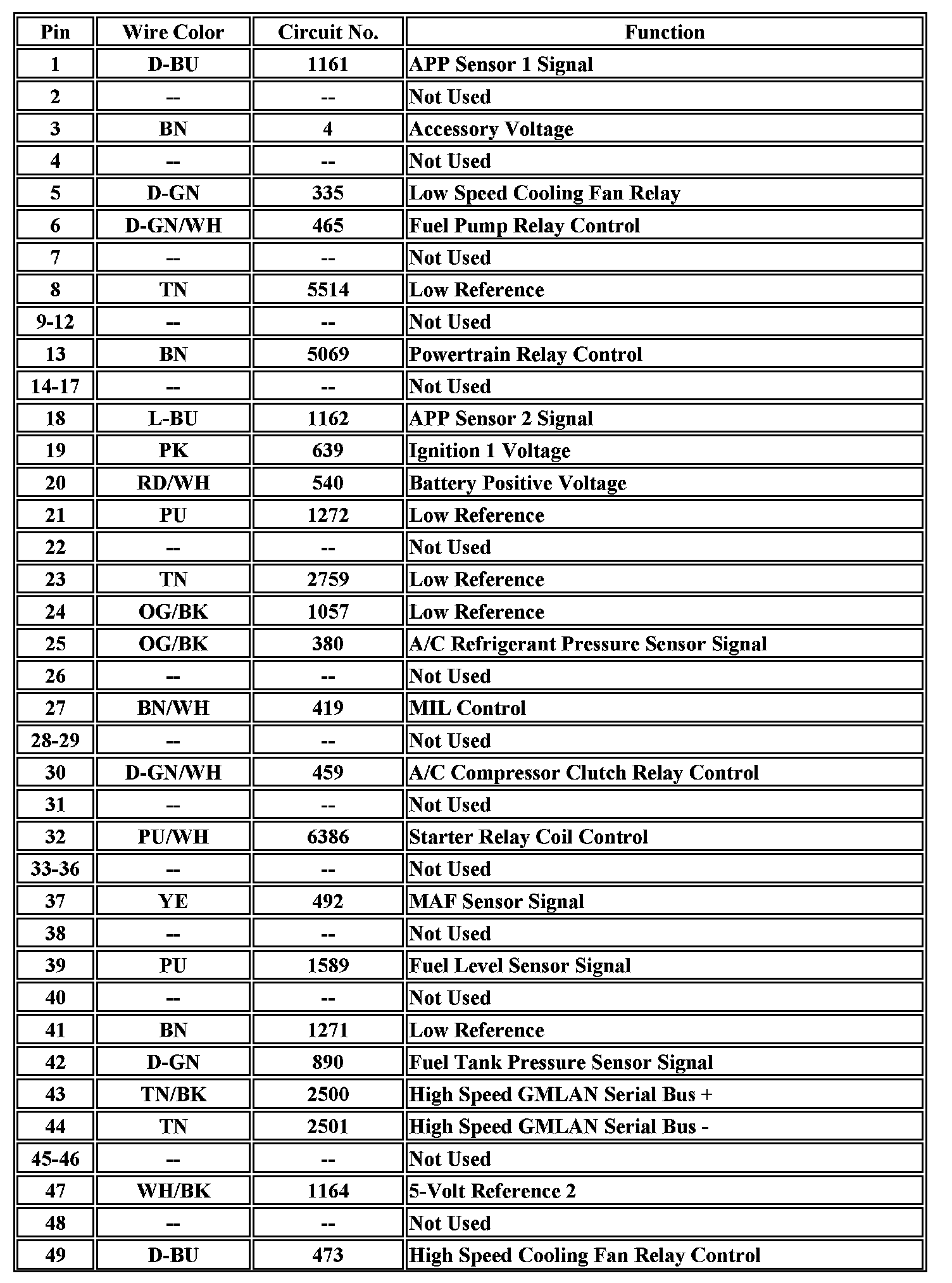

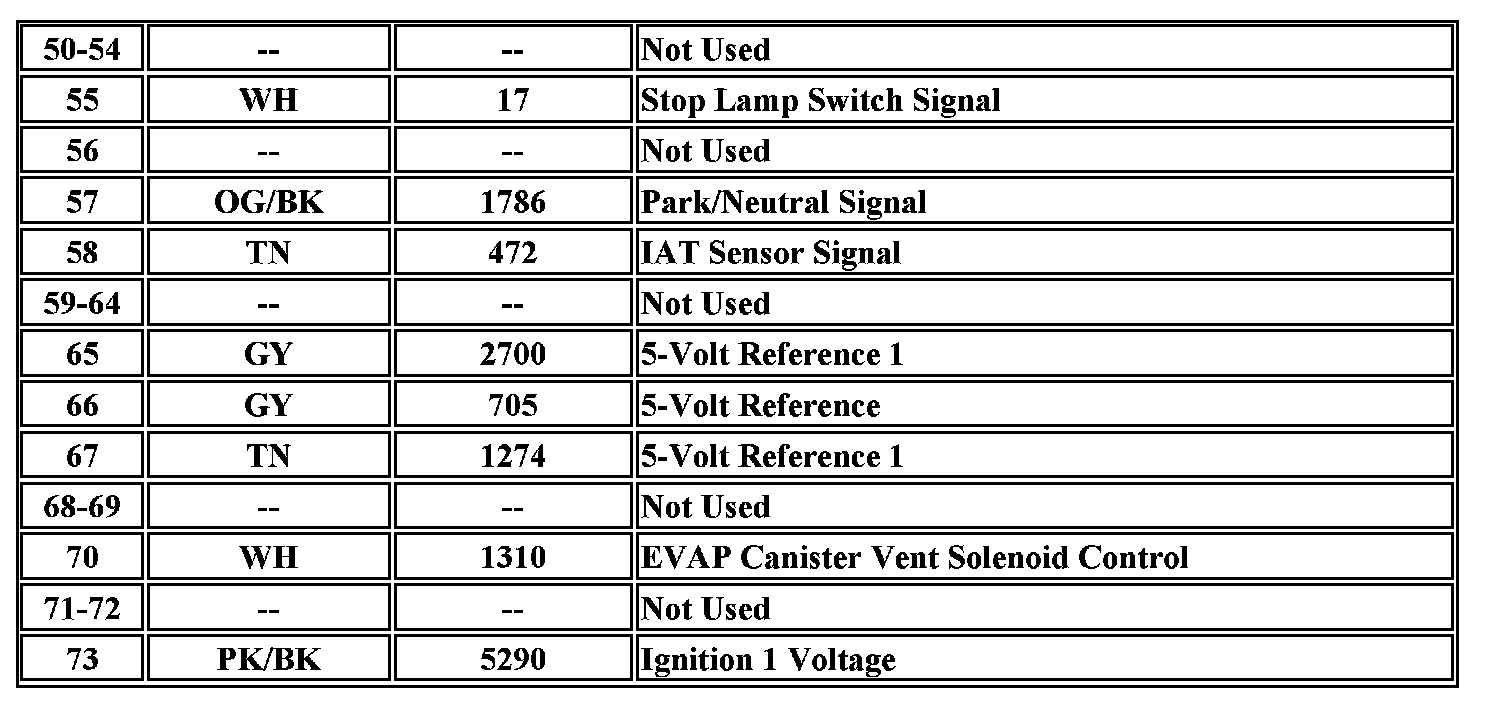

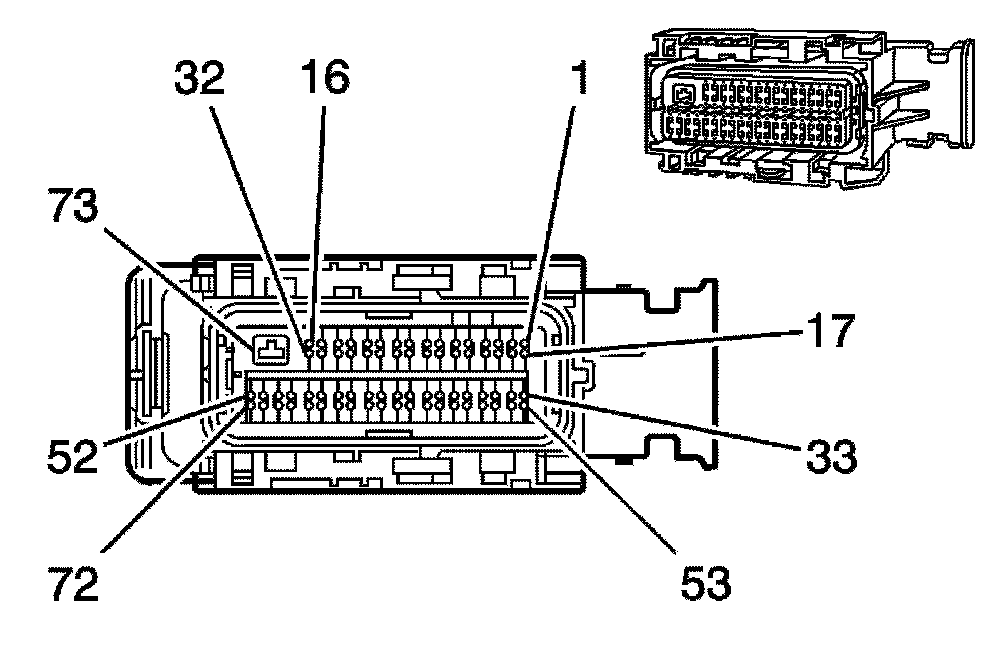

Engine Control Module (ECM) C2
