Window Systems Connector End Views



Window Systems Connector End Views

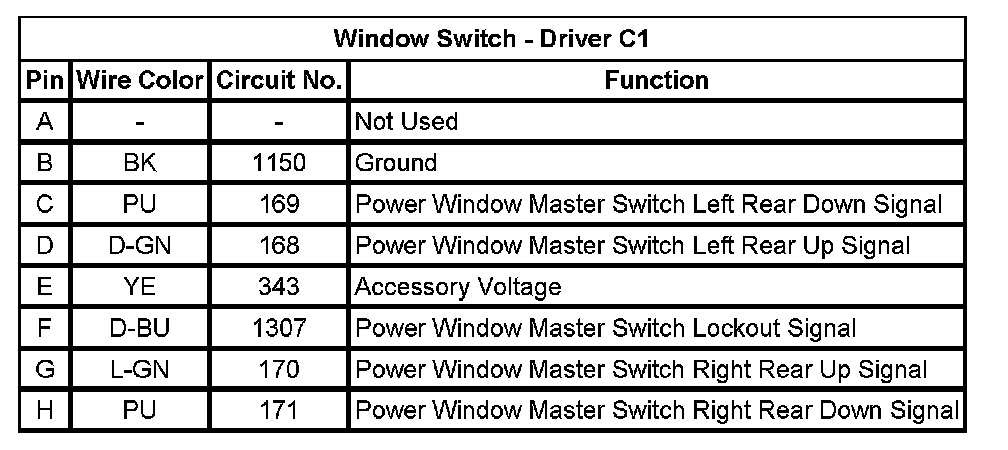

Window Switch - Driver C1

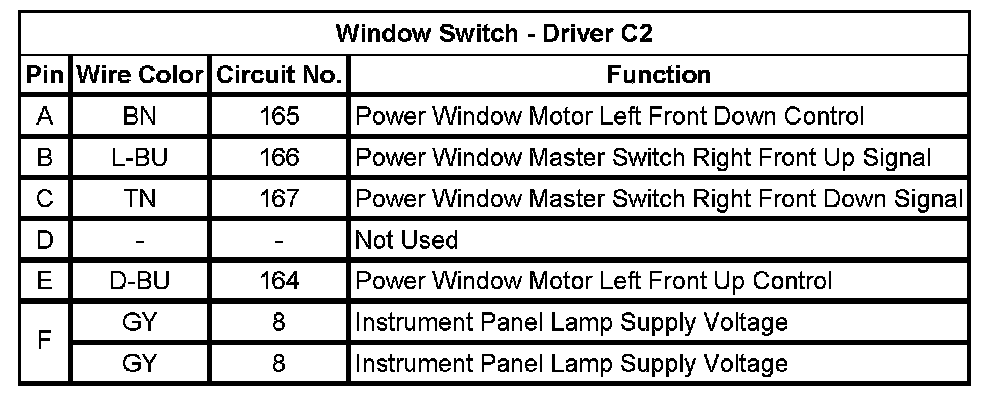

Window Switch - Driver C2

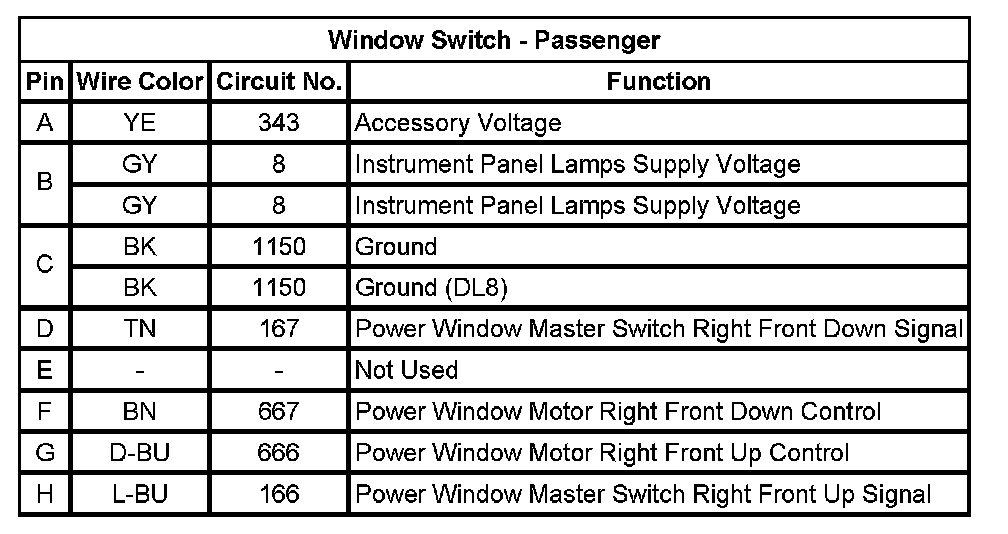

Window Switch - Passenger

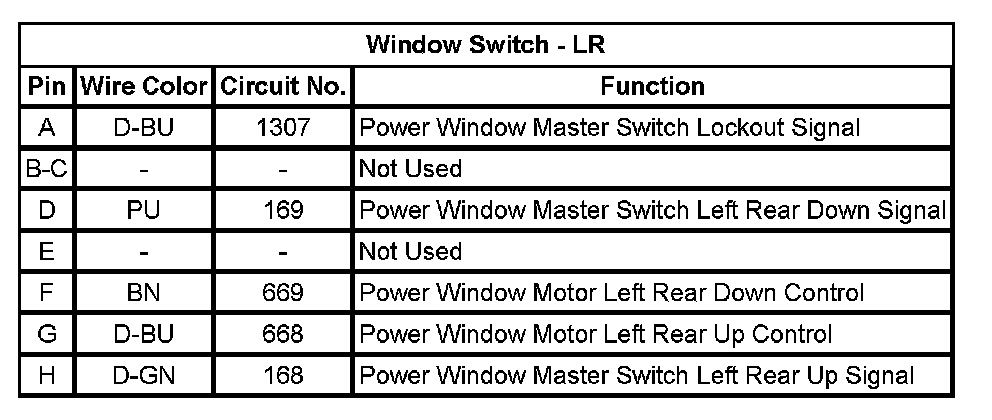

Window Switch - LR

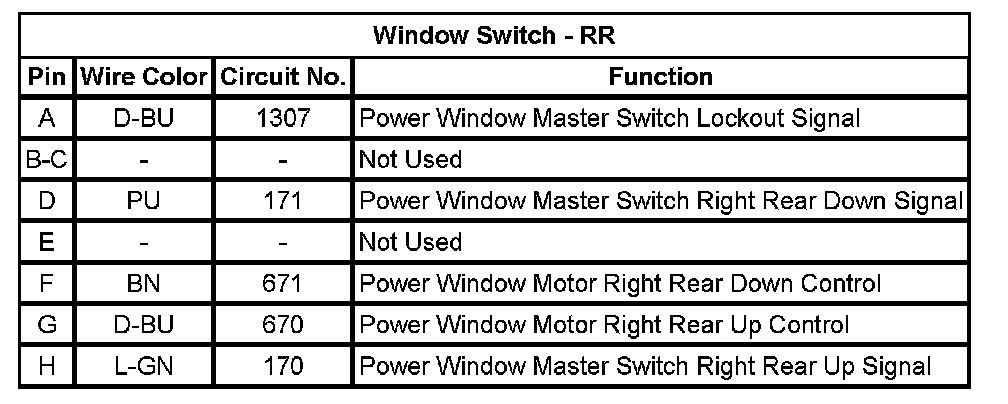

Window Switch - RR
