Seat Temperature Control Module



Heated/Cooled Seat Connector End Views

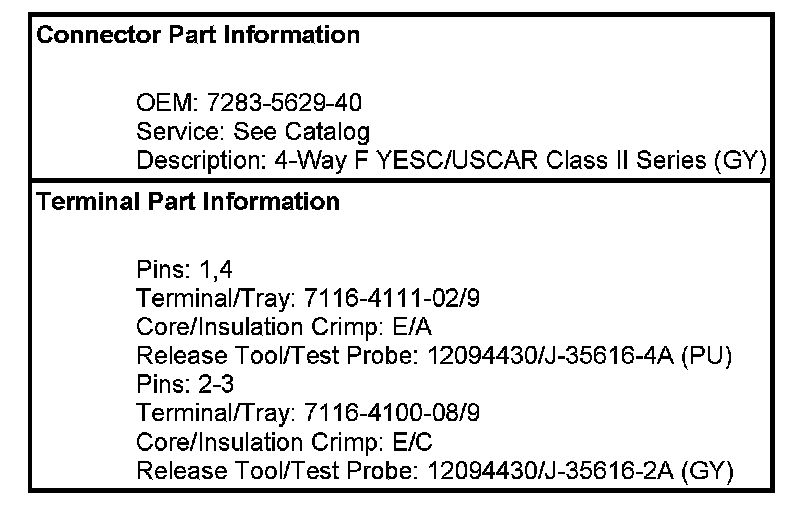

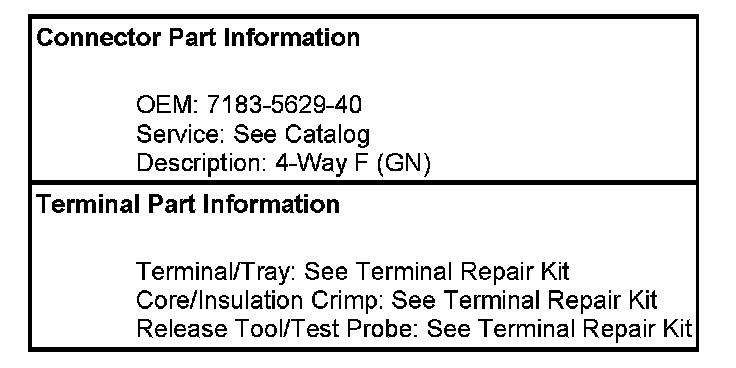

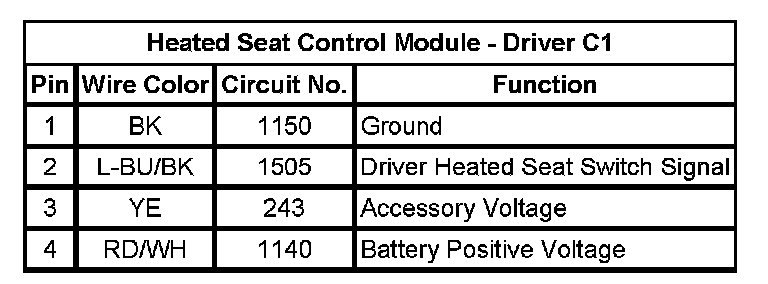

Heated Seat Control Module - Driver C1

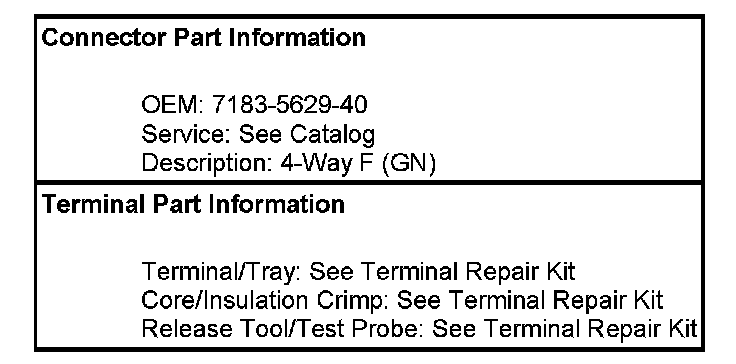

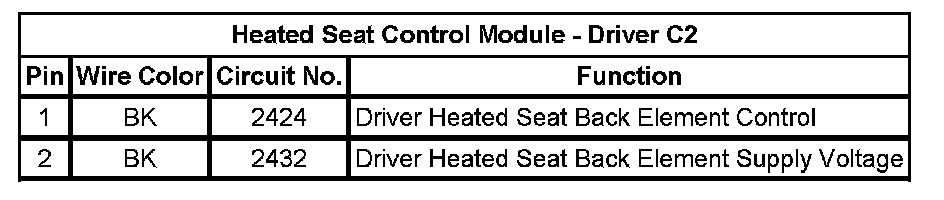

Heated Seat Control Module - Driver C2

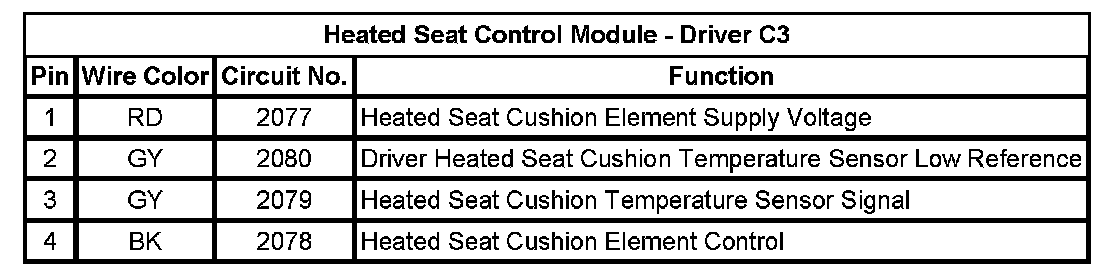

Heated Seat Control Module - Driver C3

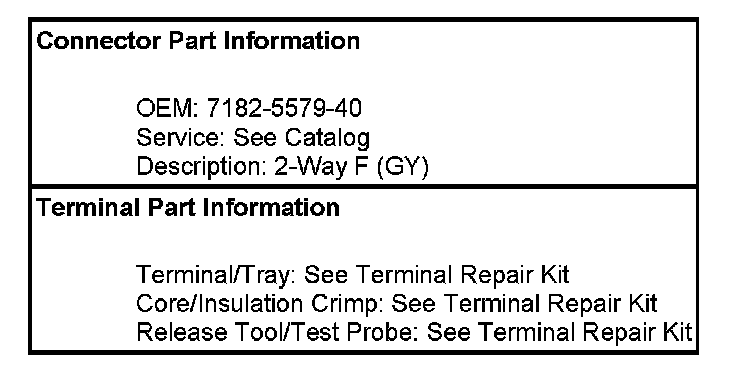

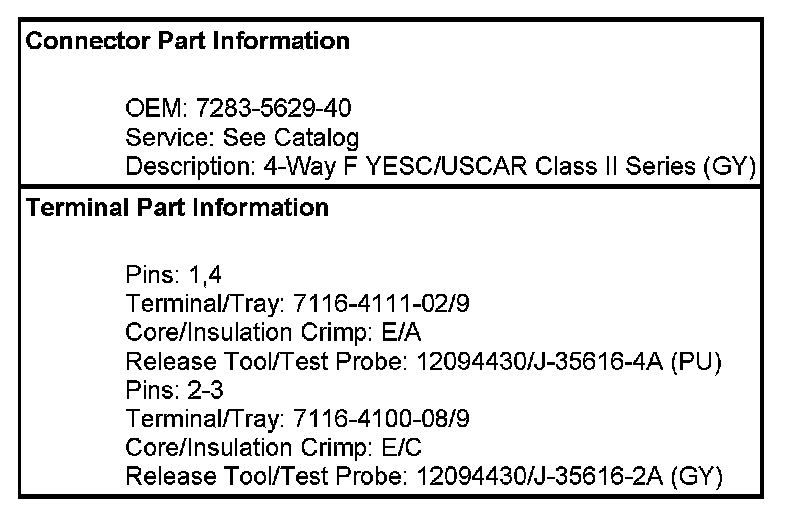

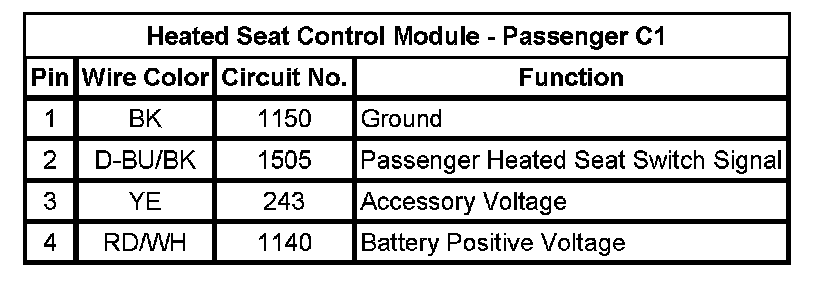

Heated Seat Control Module - Passenger C1

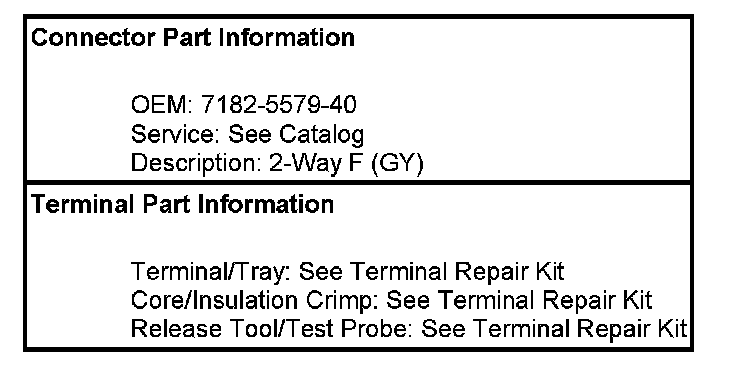

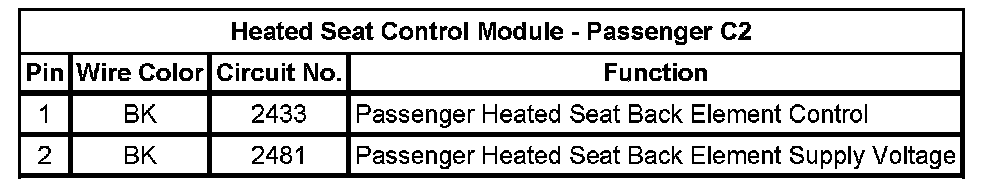

Heated Seat Control Module - Passenger C2

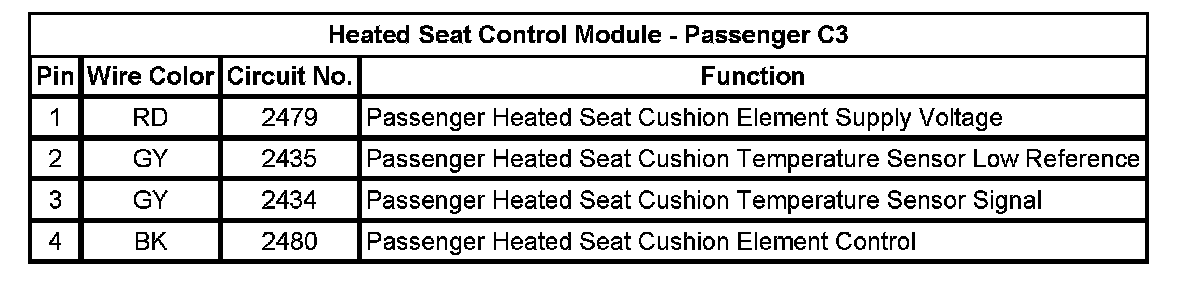

Heated Seat Control Module - Passenger C3
