HVAC - Automatic

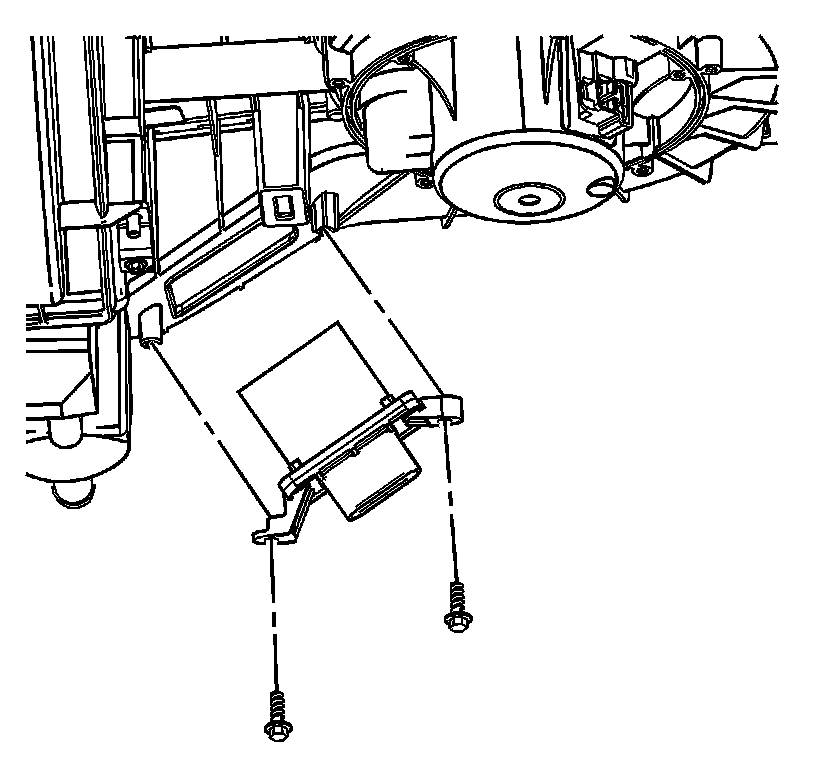

Blower Motor Control Processor Replacement

Removal Procedure

1. Remove the right closeout panel.
2. Remove the blower motor control processor wire harness connector.
3. Remove the blower motor control processor screws.




4. Remove the blower motor control processor.

Installation Procedure




1. Install the blower motor control processor.

Notice: Refer to Fastener Notice.

2. Tighten the blower motor control processor screws.

Tighten the blower motor resistor screws to 1.5 N.m (13 lb in).

3. Install the blower motor control processor wire harness connector.
4. Install the right closeout panel.
