Electronic Throttle Control Module: Locations

Engine Controls Component Views

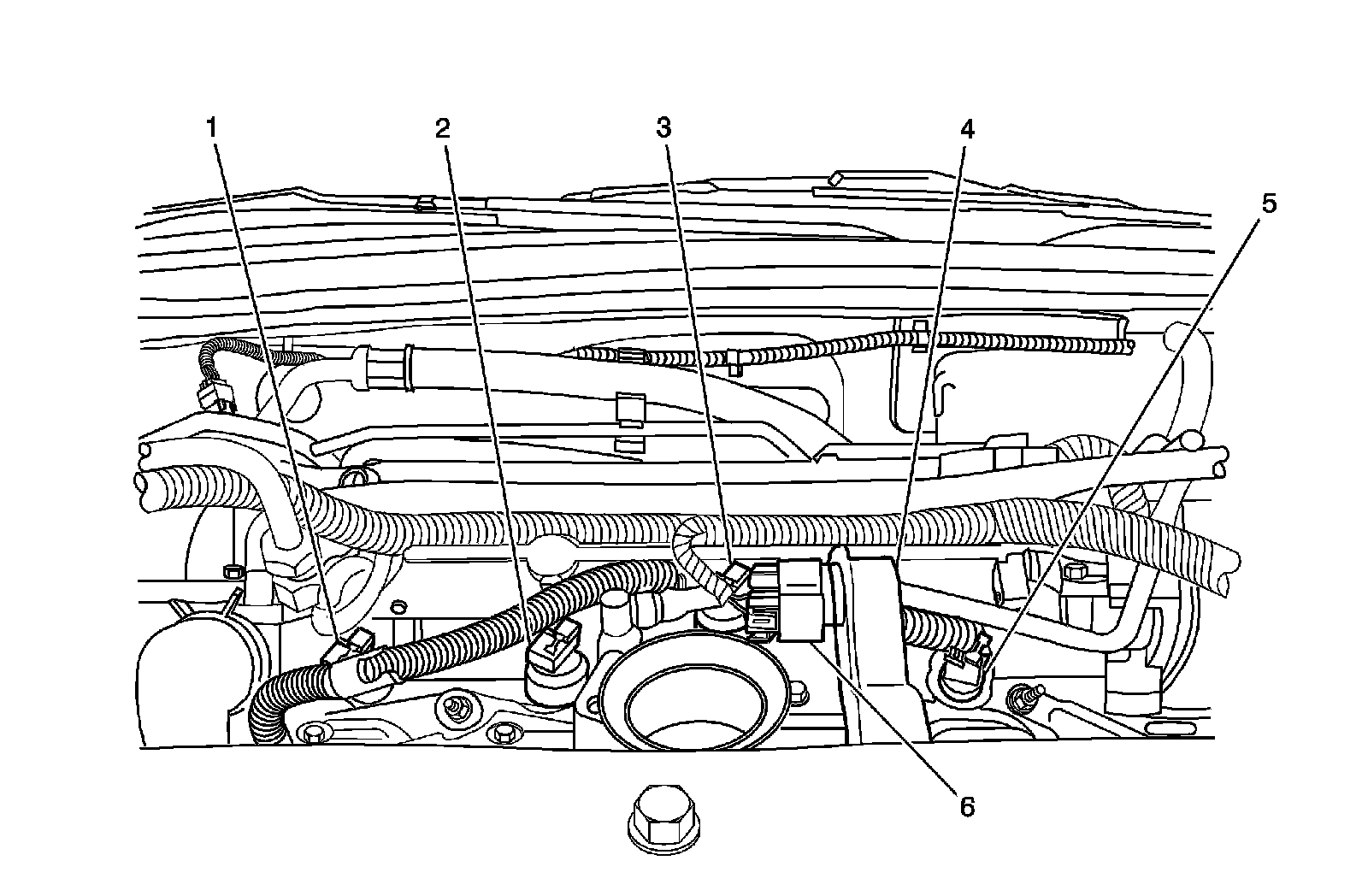

Top Front of Engine - L61




1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Throttle Actuator Control (TAC) Module
5 - Fuel Injector 4
6 - Manifold Absolute Pressure (MAP) Sensor
