System Specifications

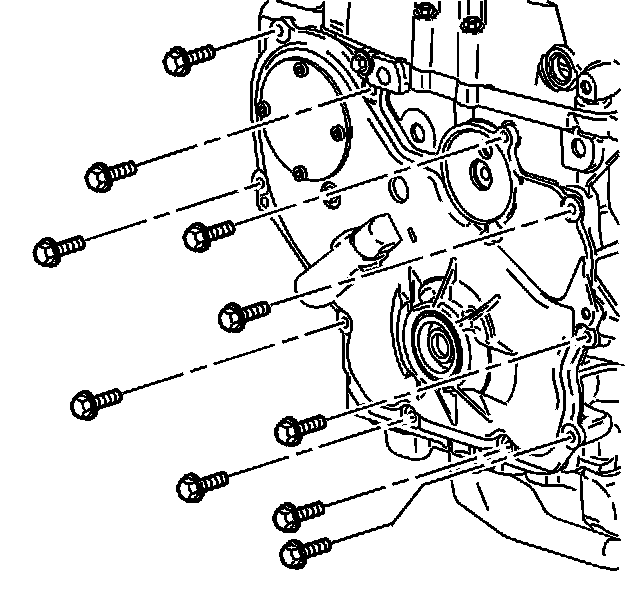

Engine Front Cover





Install the engine front cover bolts.
Tighten the bolts to 25 N.m (18 lb ft)

Crankshaft Balancer Bolt
First Pass 100 N.m (74 lb ft)
Final Pass 125 degrees

Timing Chain Tensioner
Tighten the to 75 N.m (55 lb ft)
