Ignition Switch: Service and Repair

Ignition and Start Switch Replacement

Removal Procedure




1. Remove the ignition switch lock cylinder. Refer to Ignition Lock Cylinder Replacement Service and Repair.

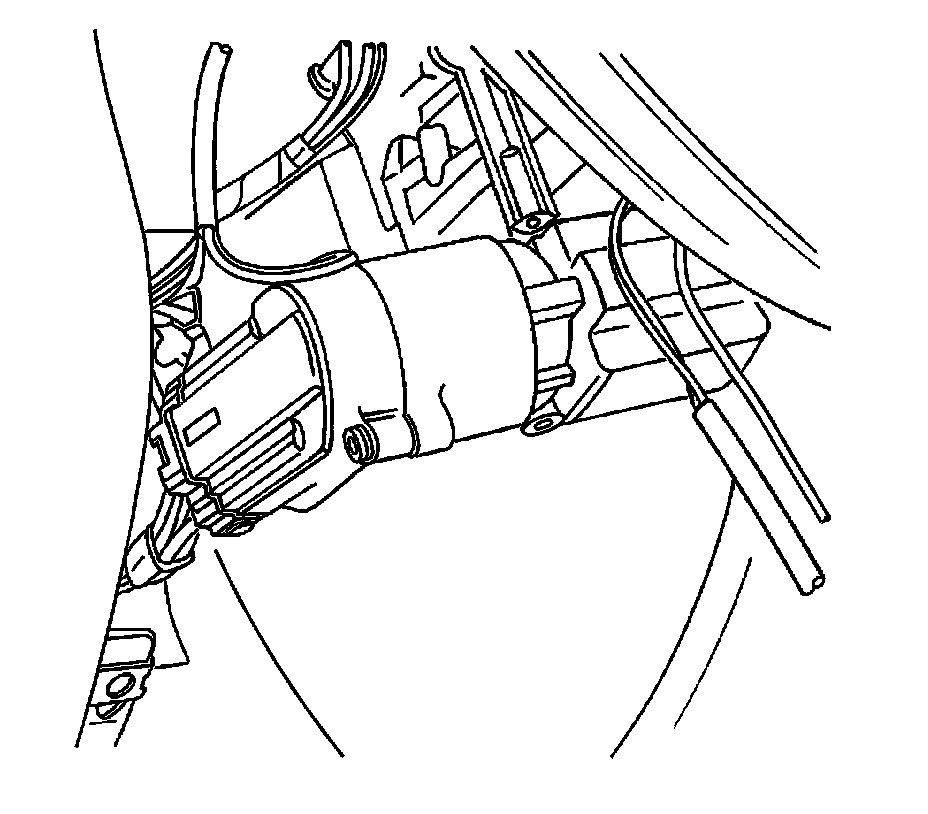

2. Remove the ignition switch retaining screw.
3. Disconnect the wiring and remove the ignition switch.

Installation Procedure

Notice: Refer to Fastener Notice Fastener Notice.




1. Install the ignition switch with the ignition switch retaining screw.

Tighten the ignition switch retaining screw to 2.5 Nm (22 lb in).

2. Connect the wiring to the ignition switch.
3. Install the ignition switch lock cylinder. Refer to Ignition Lock Cylinder Replacement Service and Repair.
