Steering Control Module: Service and Repair

Power Steering Control Module Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect negative battery cable.
2. Remove the glove box. Refer to Instrument Panel Storage Compartment Replacement Instrument Panel Storage Compartment Replacement.

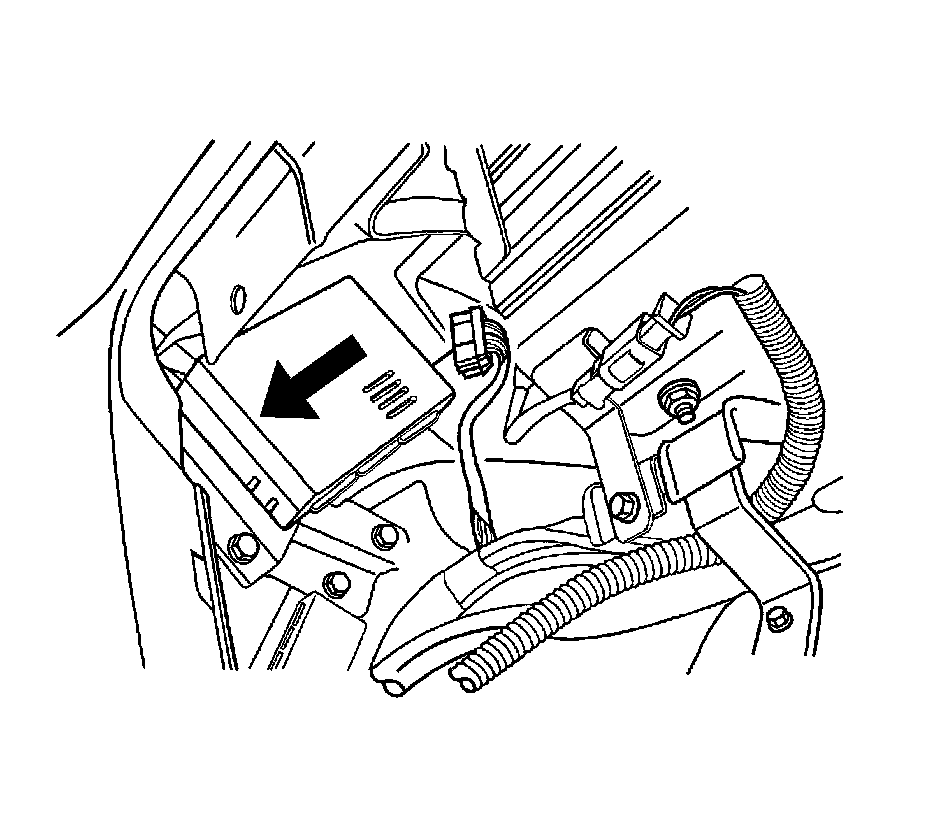

3. Slide the speed sensitive power steering (SSPS) control module off of the control module bracket.
4. Disconnect the electrical connector from the SSPS control module.

Installation Procedure




1. Connect the electrical connector to the SSPS control module.

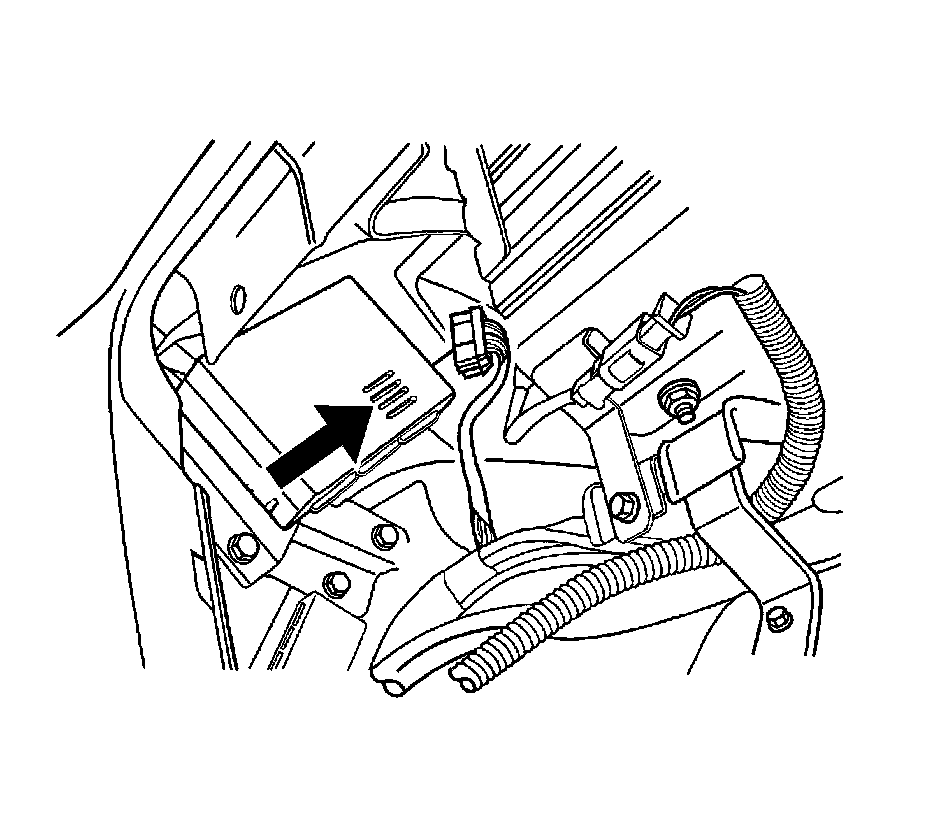

2. Slide the SSPS control module onto the SSPS control module bracket.
3. Install the glove box. Refer to Instrument Panel Storage Compartment Replacement Instrument Panel Storage Compartment Replacement.
4. Connect the negative battery cable.
