Installation Procedure

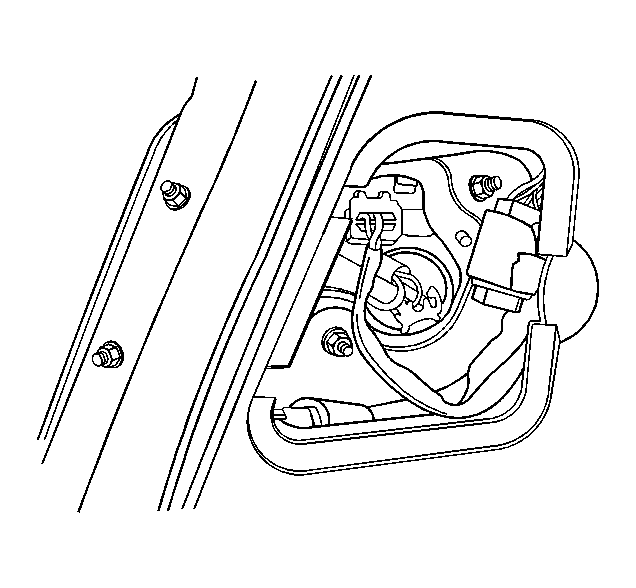

    Fig 1: View Of Rear Liftgate Lamp Assembly Through Access Hole
    GM1448646Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. NOTE: Refer to Fastener Notice .
  2. Install the lamp assembly with the nuts.

    Tighten:  Tighten the liftgate lamp assembly nuts to 3 N.m (27 lb in)  .

  3. Install the liftgate lamp access panels.
  4. Close the liftgate.
  5. Connect the negative battery cable.
