Automatic Transmission Electronic Component Views

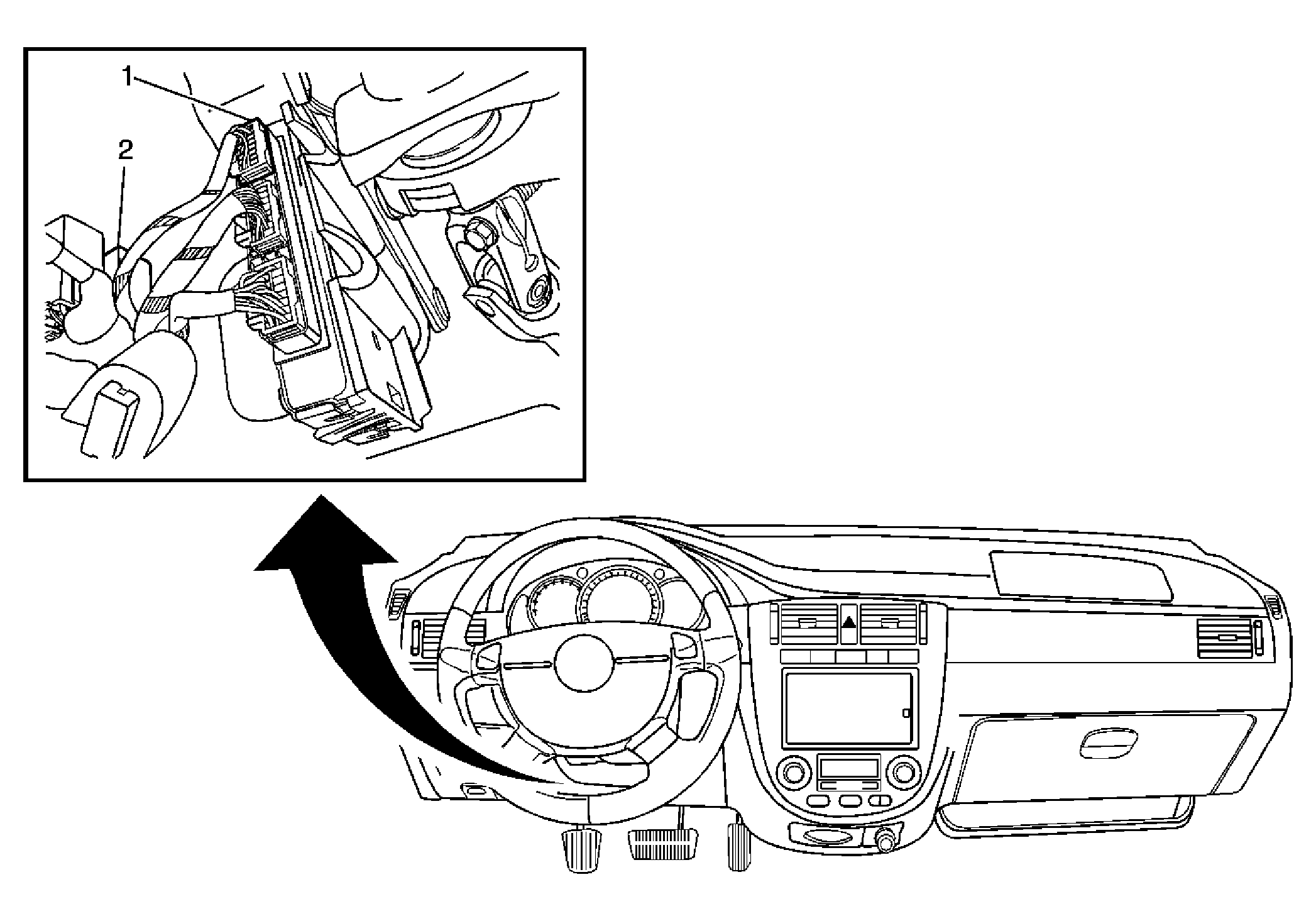

Fig 1: Identifying Transmission Control Module And Key Interlock Module (TCM)
GM1480994Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transmission Control Module (TCM) ZF 4HP16
2 Key Interlock Module

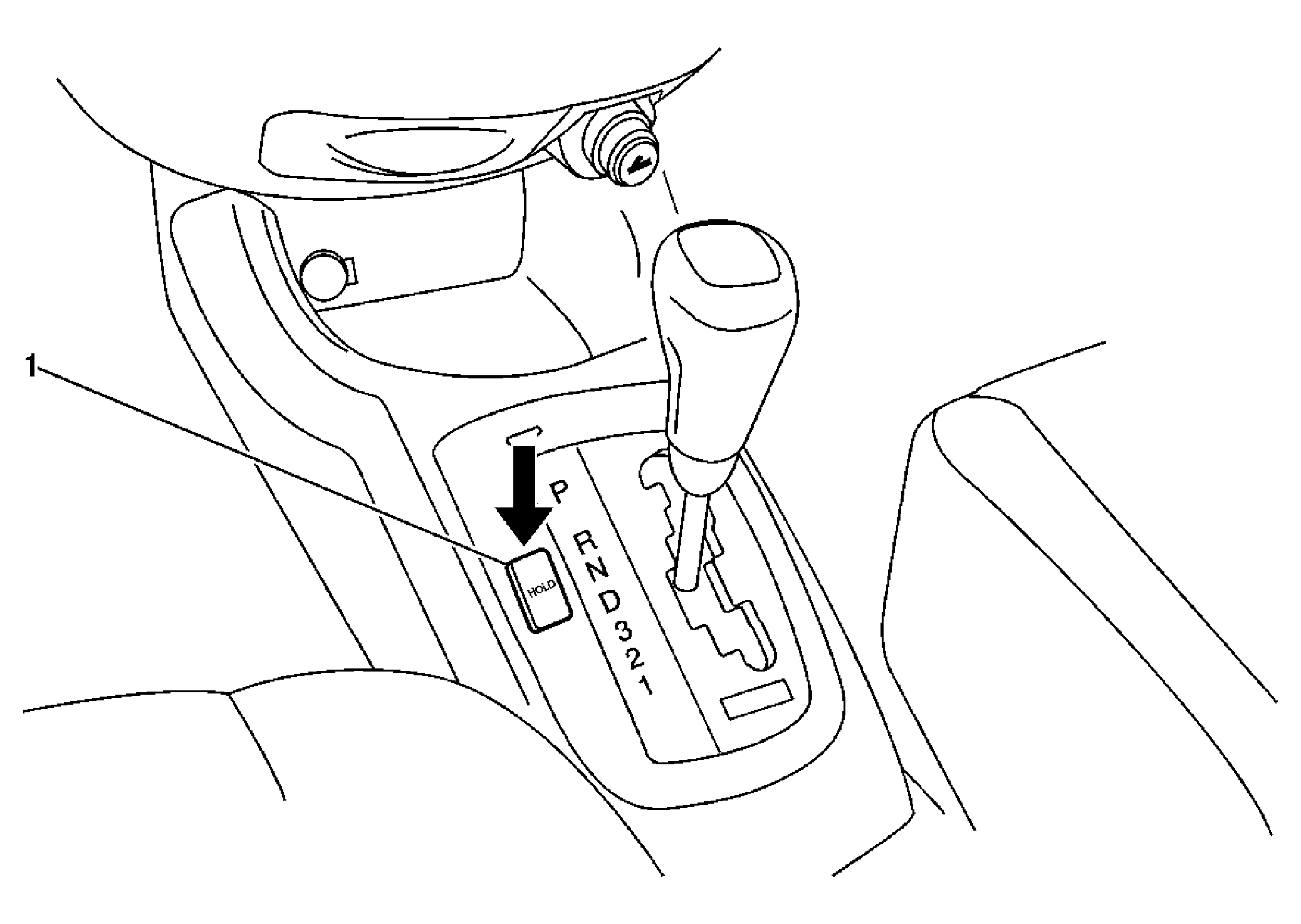

Fig 2: Identifying Hold Mode Switch
GM1480992Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Shift Program Switch (Hold Mode)
