Engine Controls Schematics (w/o Throttle Actuator Control)

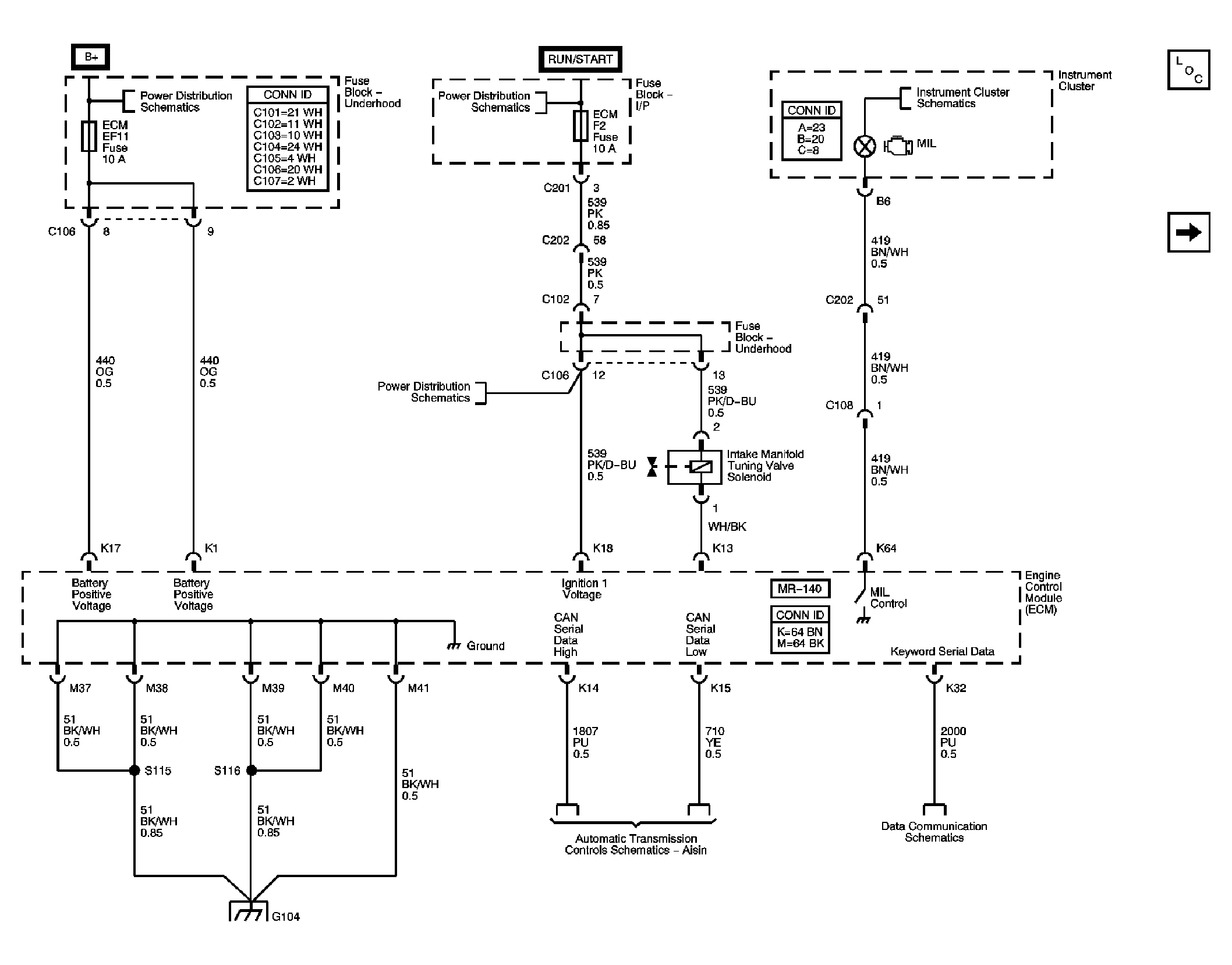

Fig 1: Module Power, Ground, Serial Data, Malfunction Indicator Lamp Schematic (MIL)

Courtesy of GENERAL MOTORS CORP.

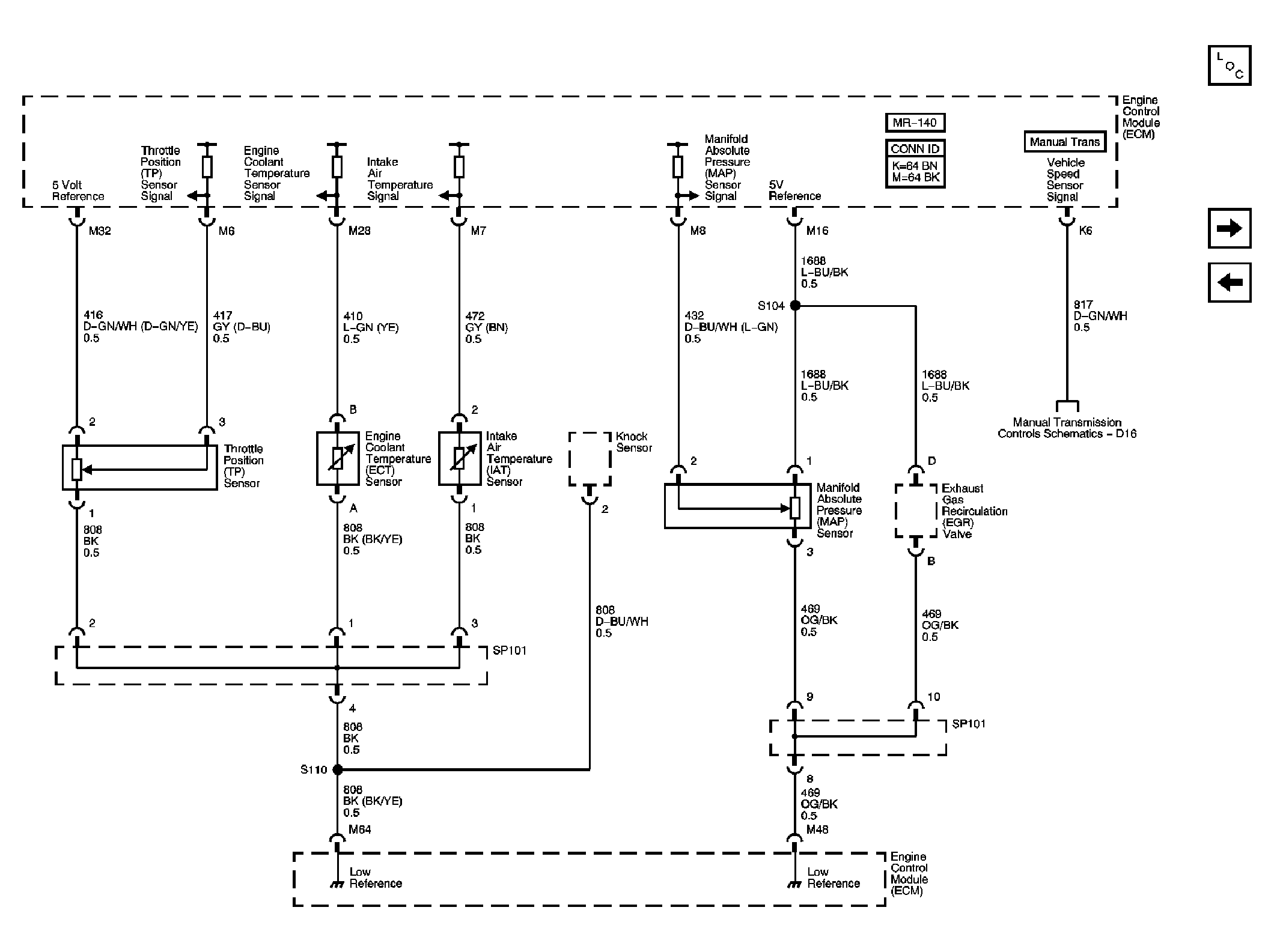

Fig 2: Engine Data Sensors Schematic - Pressure and Temperature

Courtesy of GENERAL MOTORS CORP.

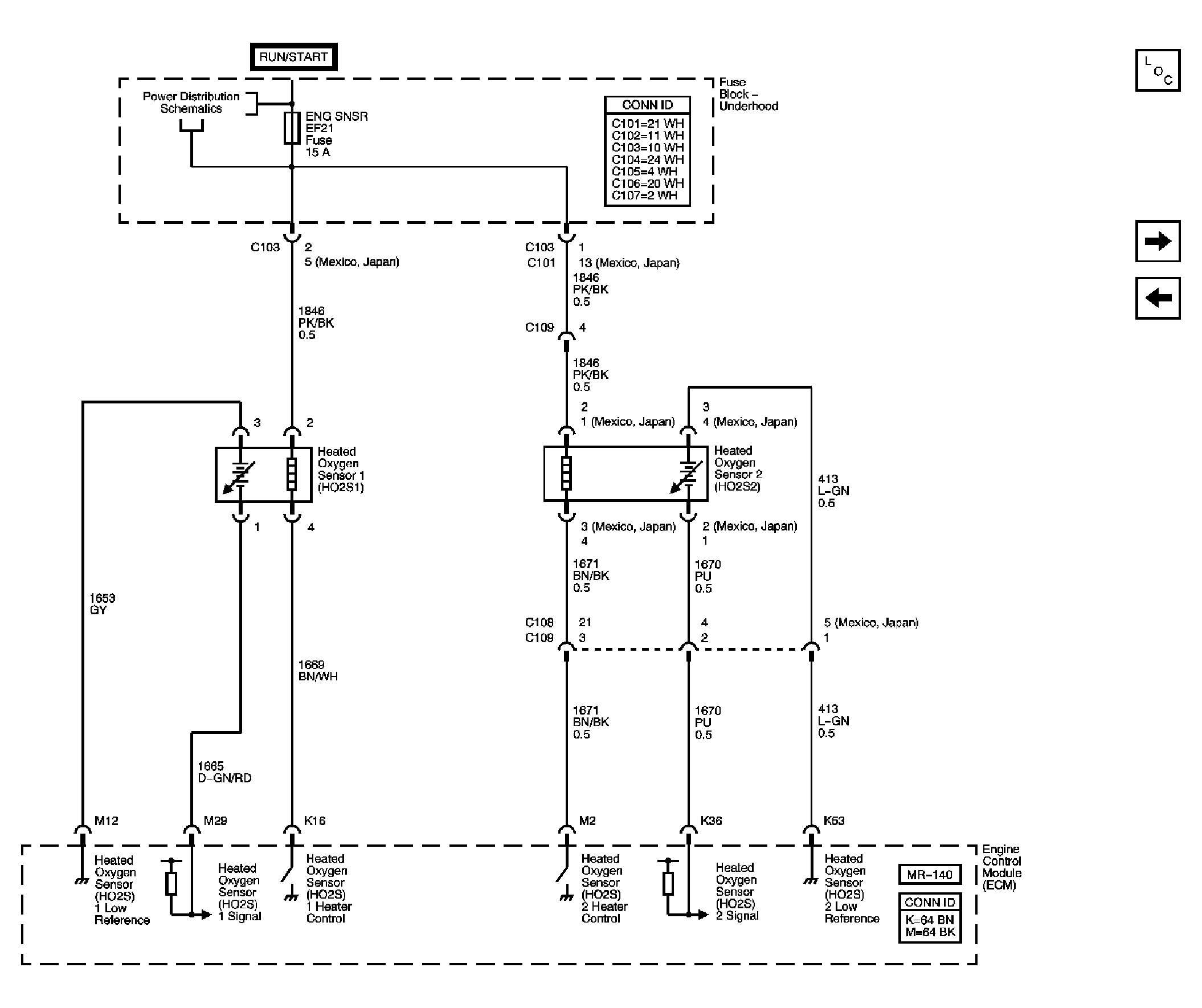

Fig 3: Oxygen Sensors Schematic (O2S)

Courtesy of GENERAL MOTORS CORP.

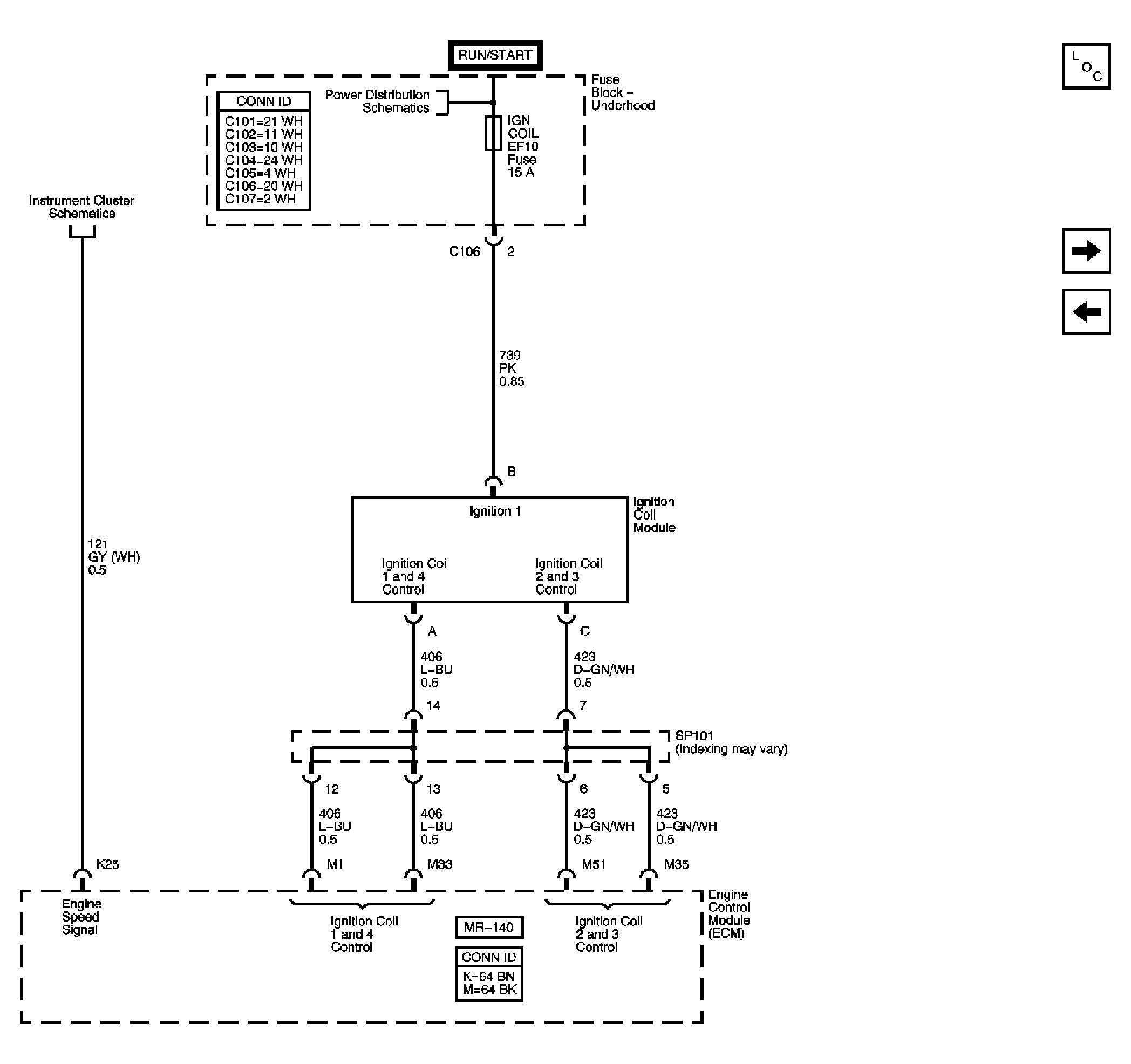

Fig 4: Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

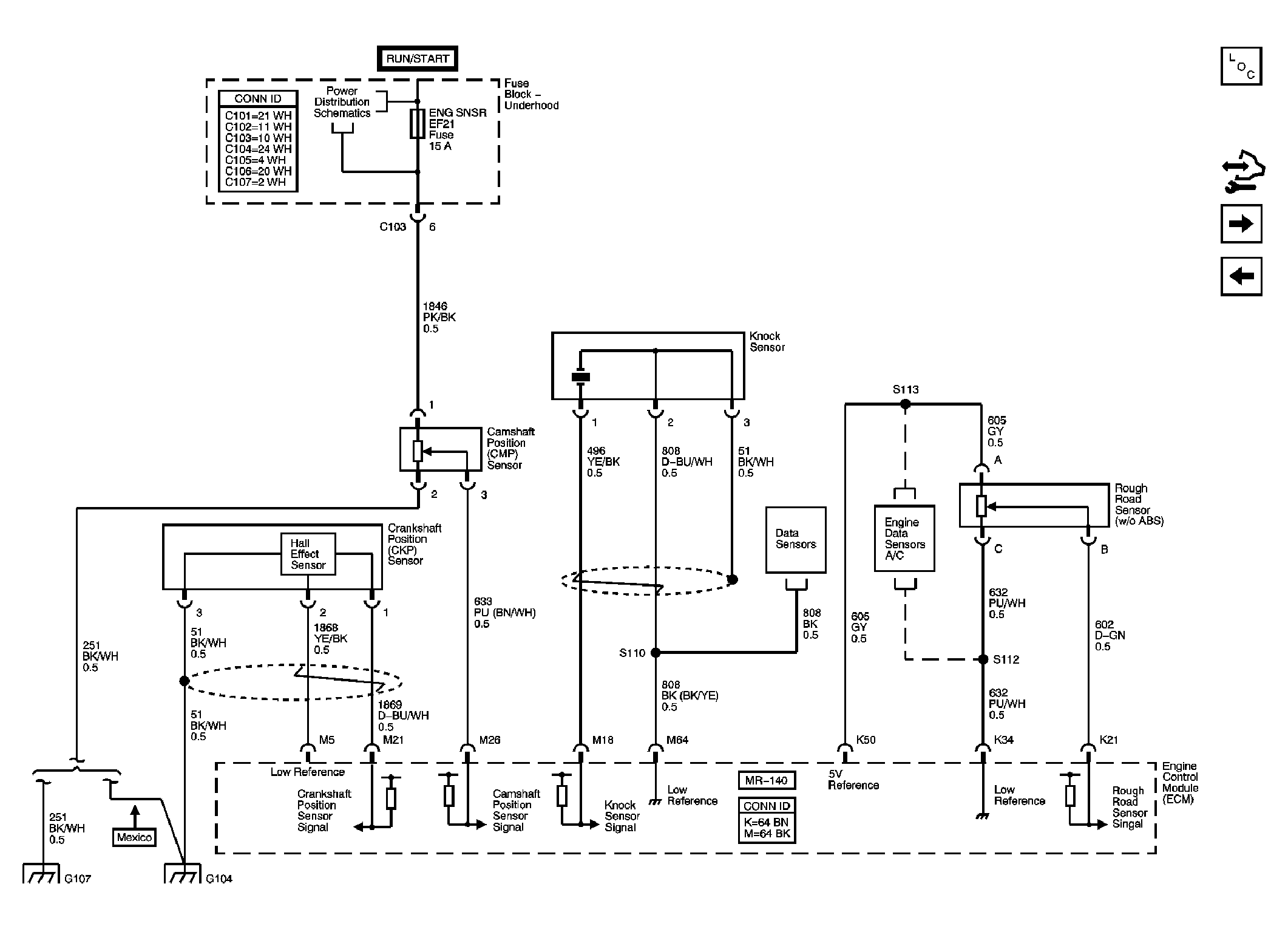

Fig 5: CKP, CMP, Knock, Rough Road Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

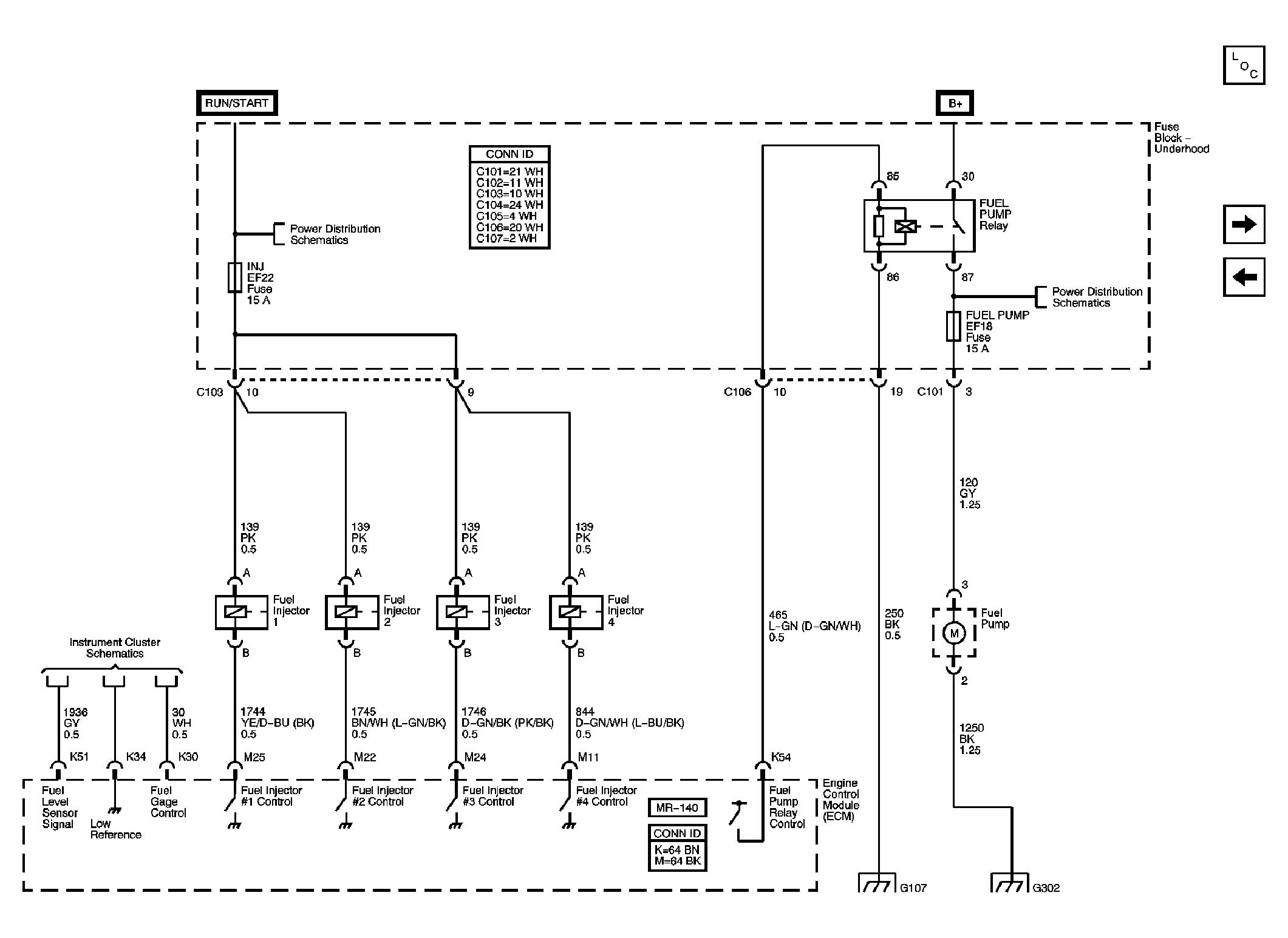

Fig 6: Fuel Pump and Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

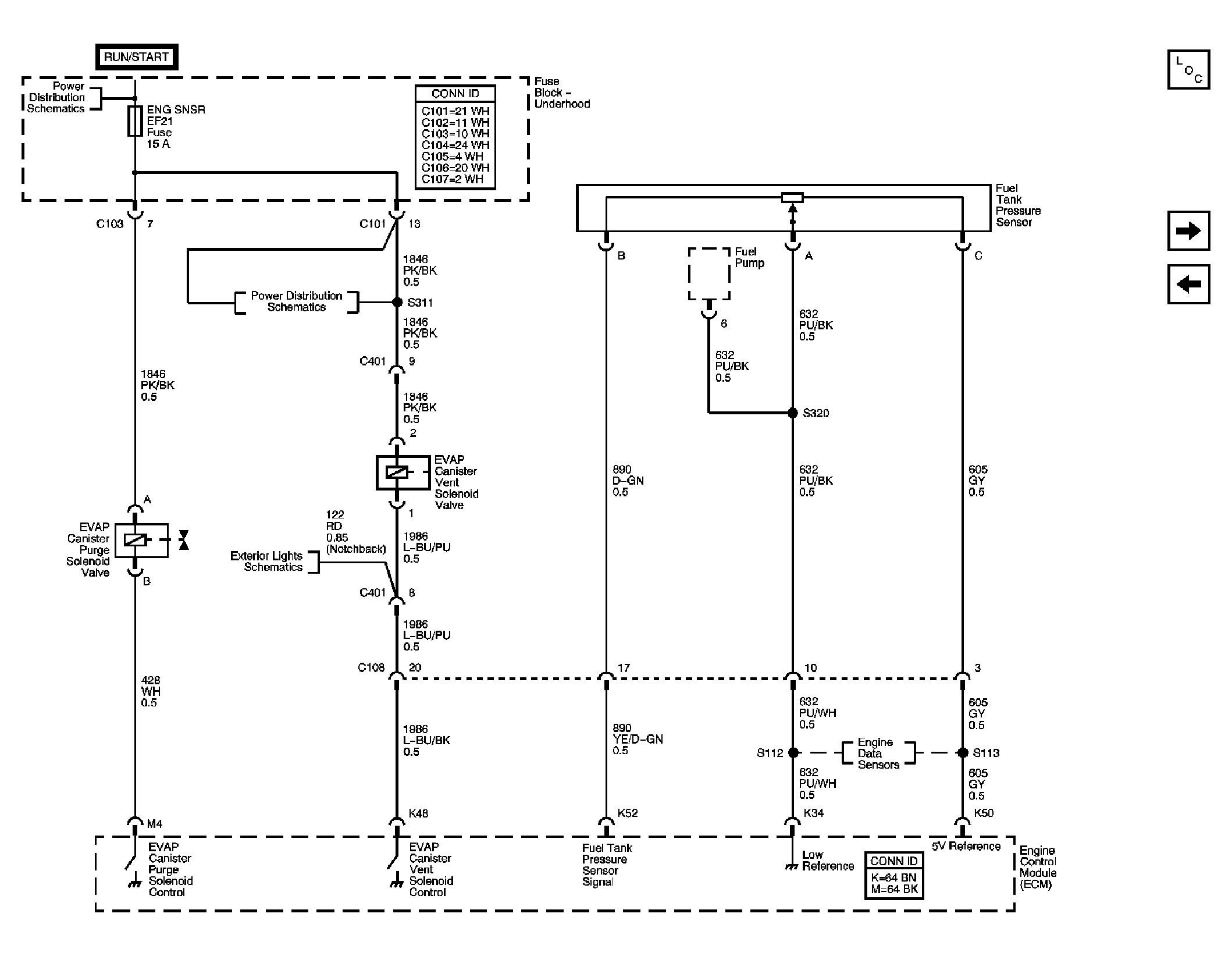

Fig 7: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

Fig 8: Device Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
