Fuel Pressure Sensor: Locations

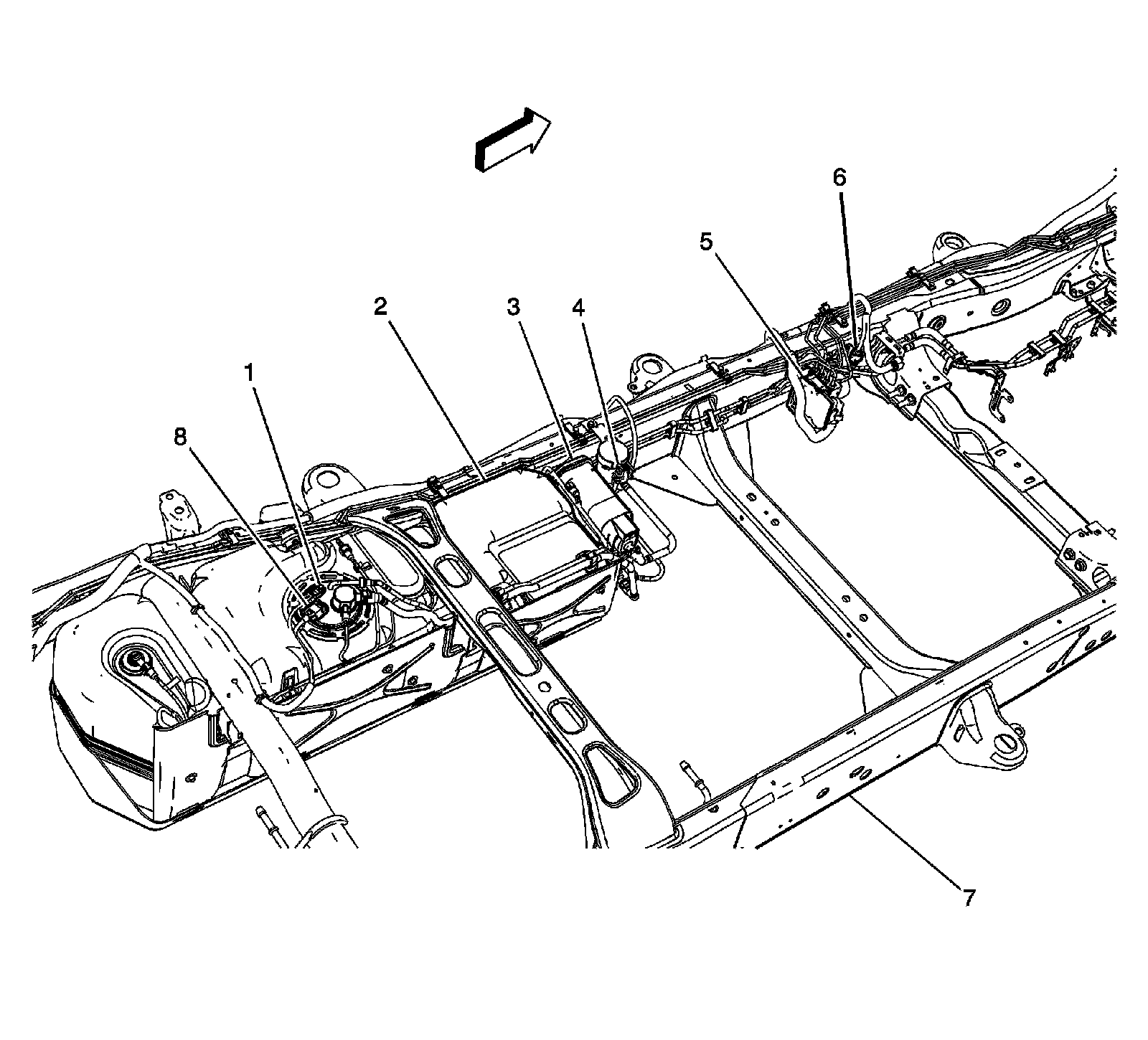

Engine Controls Component Views

Near the Fuel Tank




1 - Fuel Tank Pressure (FTP) Sensor (Gas)
2 - Fuel Tank
3 - Evaporative Emissions (EVAP) Canister
4 - Evaporative Emissions (EVAP) Canister Vent Solenoid Valve (- Diesel)
5 - Electronic Brake Control Module (EBCM) (JL4/JF3/JF7/JH6/JH7)
6 - Fuel Line Pressure Sensor (-LMG/LY6/LC9)
7 - Chassis
8 - Fuel Pump and Sender Assembly - Front (Gas)
