Parking Assist Control Module

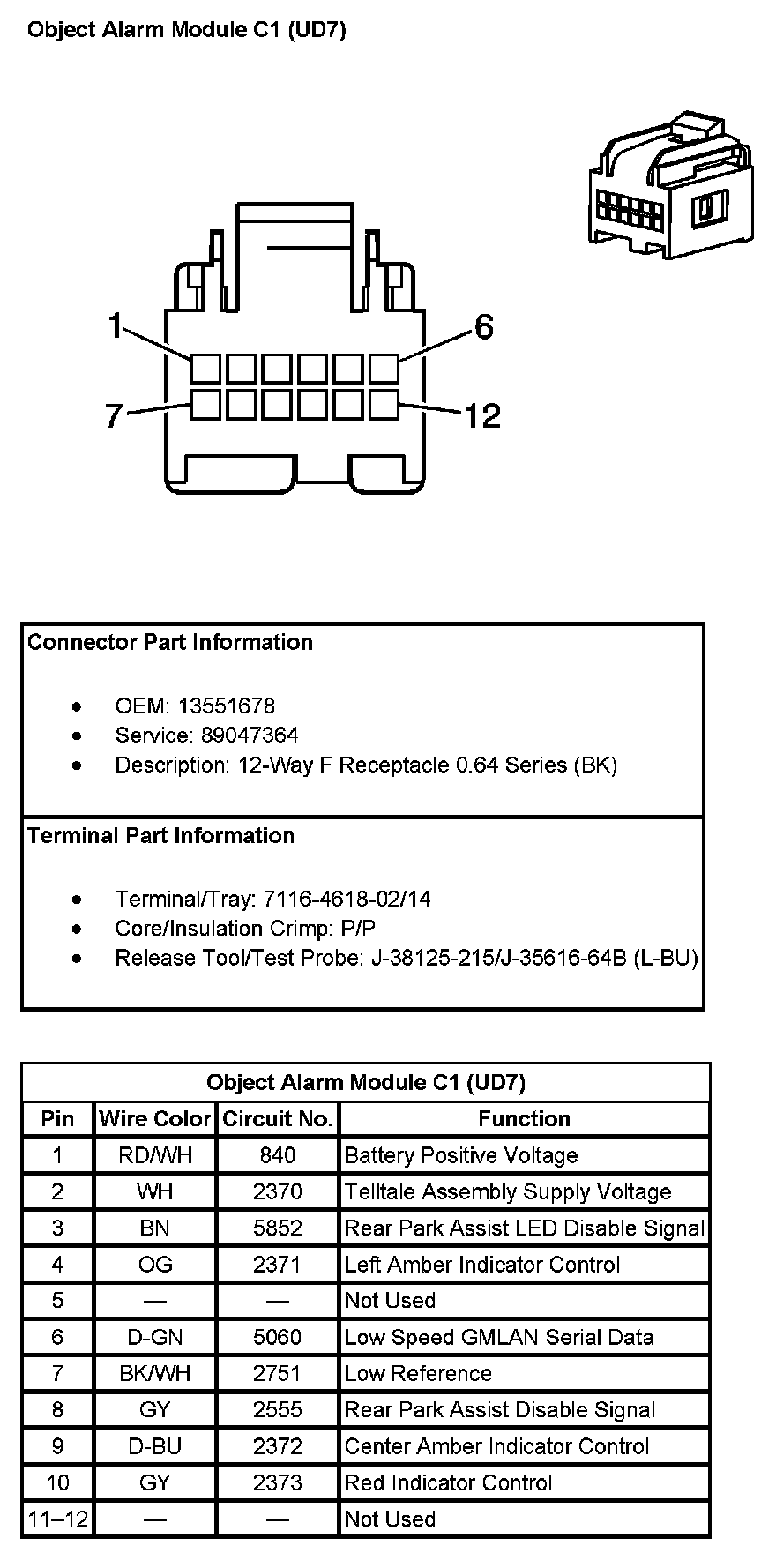

Object Alarm Module C1 (With RPO Code UD7):

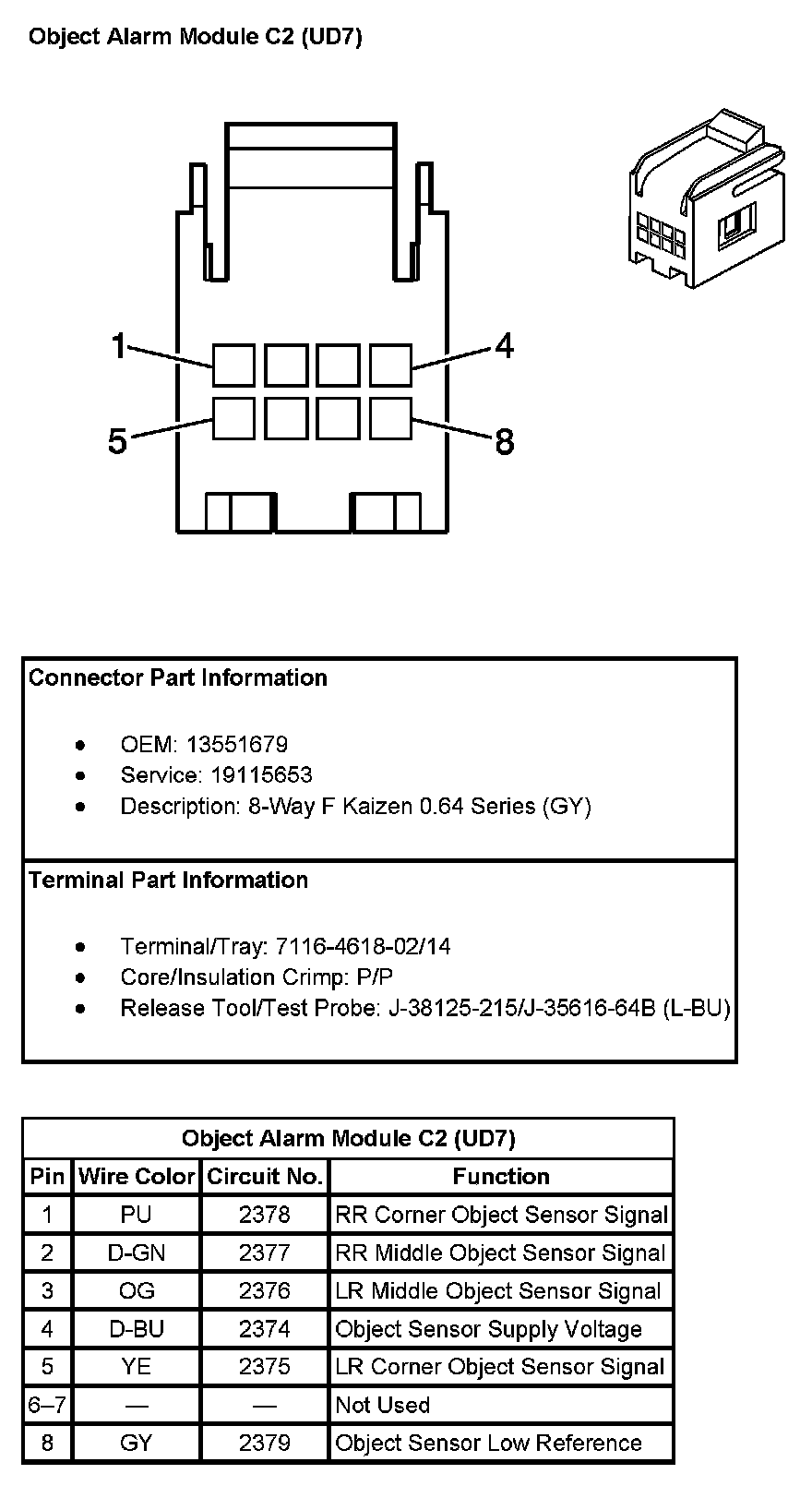

Object Alarm Module C2 (With RPO Code UD7):
