Steering Angle Sensor

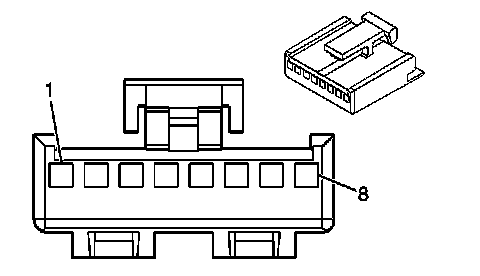

Antilock Brake System Connector End Views

Steering Wheel Speed/Position Sensor

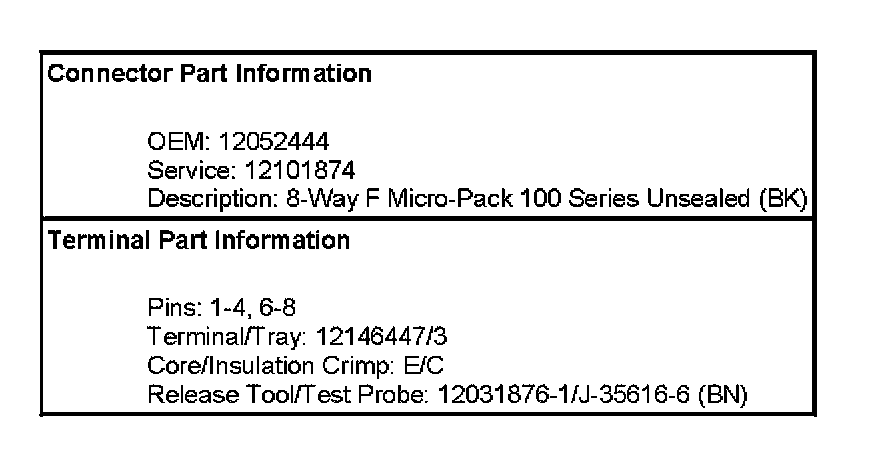

Steering Wheel Speed/Position Sensor:

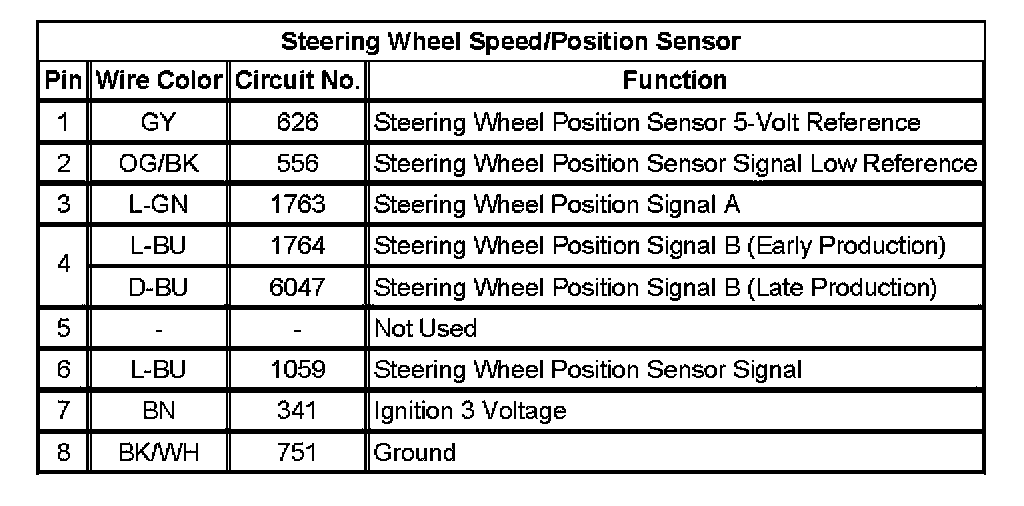

Steering Wheel Speed/Position Sensor:
