Automatic Level Control (ALC) Compressor Connector End View (G67)

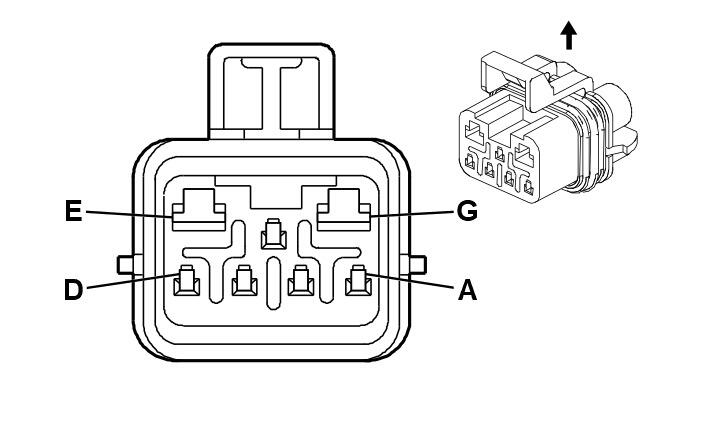

Fig 1: Automatic Level Control (ALC) Compressor Connector End View (G67)

Courtesy of GENERAL MOTORS CORP.

Connector Part Information

Connector Part Information  OEM: 12059472 Service: 12101830 Description: 7-Way F 150/280 Series GT (BK)

Terminal Part Information  Pins: A-D Terminal: 12048074/Tray 2 Core/Insulation Crimp: Pins A, D: 2/1 Core/Insulation Crimp: Pins B, C: E/1 Release Tool/Test Probe: 12094429/J-35616-2A (GY) Pins: E, G Terminal: 12048451/Tray 2 Core/Insulation Crimp: F/3 Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
A	RD/WH	140	Battery Positive Voltage
B	WH	320	Automatic Level Control Exhaust Solenoid Control
C	RD/WH	140	Battery Positive Voltage
D	YE	321	Automatic Level Control Relay Control
E	RD/WH	140	Battery Positive Voltage
F	-	-	Not Used
G	BK	350	Ground
