Radio Antenna Module Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

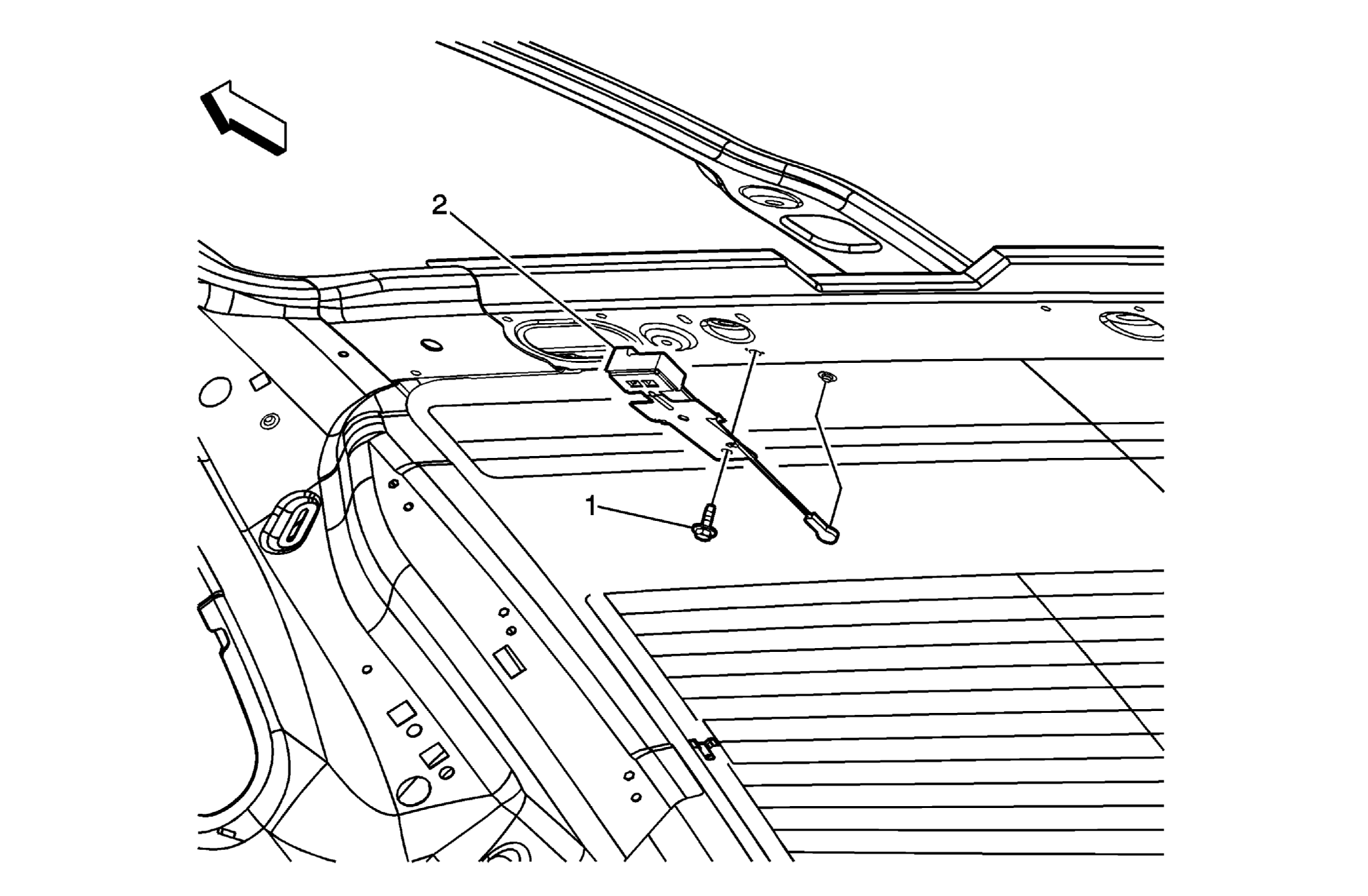

Fig 1: View Of Radio Antenna Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement (Impala) or Headlining Trim Panel Replacement (Monte Carlo) .
1	Radio Antenna Module Bolt (Qty: 3) Tighten: 10 N.m (89 lb in)
2	Radio Antenna Module Assembly Tip: Disconnect the antenna lead from the rear window. Disconnect the electrical connector.
