Camshaft Position Sensor: Service and Repair



Camshaft Position Sensor Replacement

Removal Procedure




1. Remove the power steering pump.

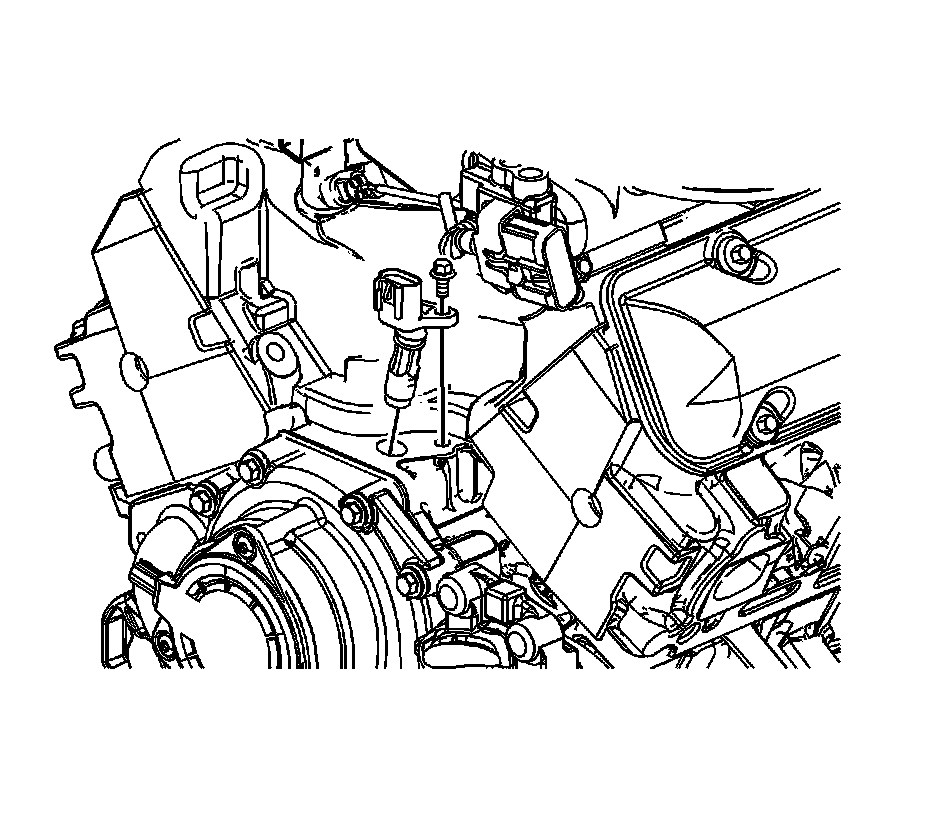

2. Disconnect the camshaft position (CMP) sensor electrical connector.
3. Remove the CMP sensor bolt.
4. Remove the CMP sensor.
5. Inspect the sensor O-ring for wear, cracks, or leakage if the sensor is not being replaced.

Installation Procedure




1. Replace the O-ring if damaged, lubricate the NEW O-ring with clean engine oil.
2. Install the CMP sensor.

Notice: Refer to Fastener Notice.

3. Install the CMP sensor bolt.

Tighten the bolt to 10 N.m (89 lb in).

4. Connect the CMP sensor electrical connector.
5. Install the power steering pump.
