Vehicle Speed Sensor: Diagrams

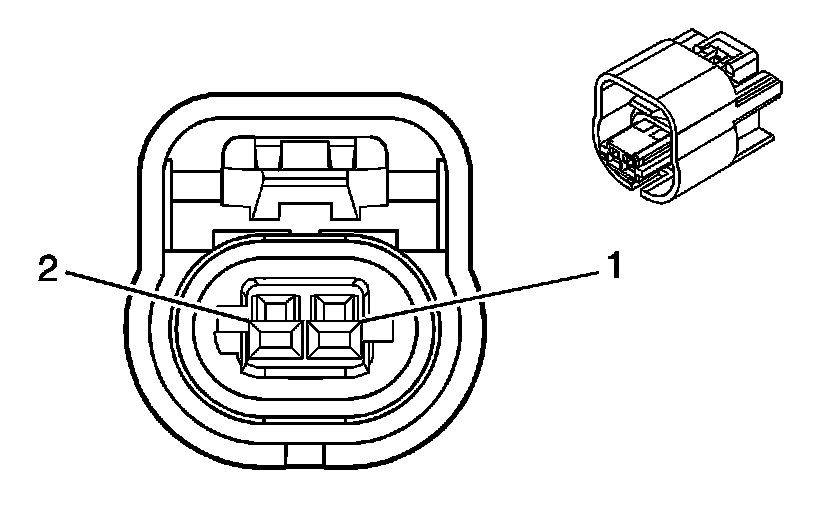

Vehicle Speed Sensor, Wiring Harness Side

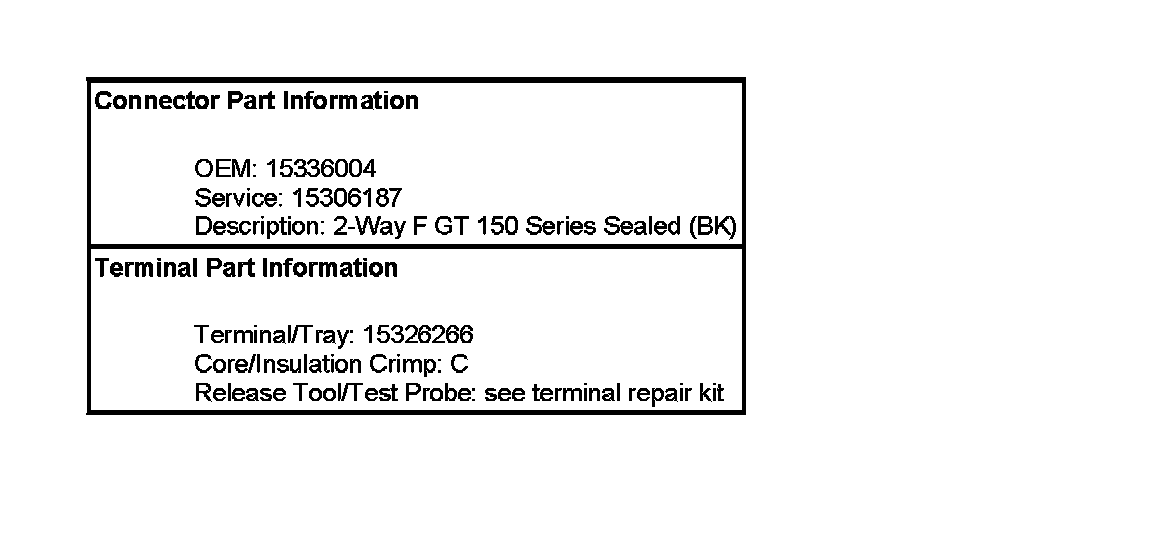

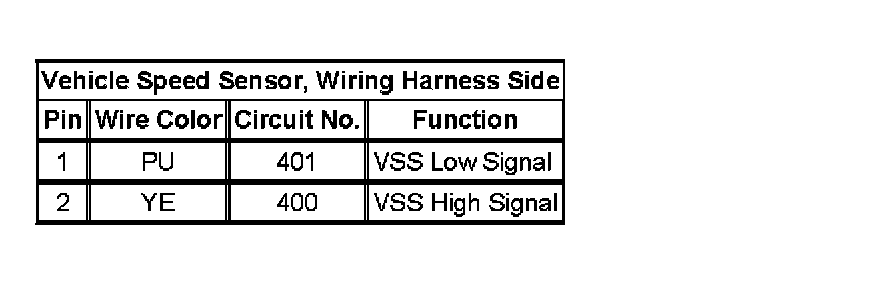

Vehicle Speed Sensor, Wiring Harness Side:
